Chapter 2 Product Overview
Rear Panel Description
2-24
Catalyst 3750 Switch Hardware Installation Guide
78-15136-03

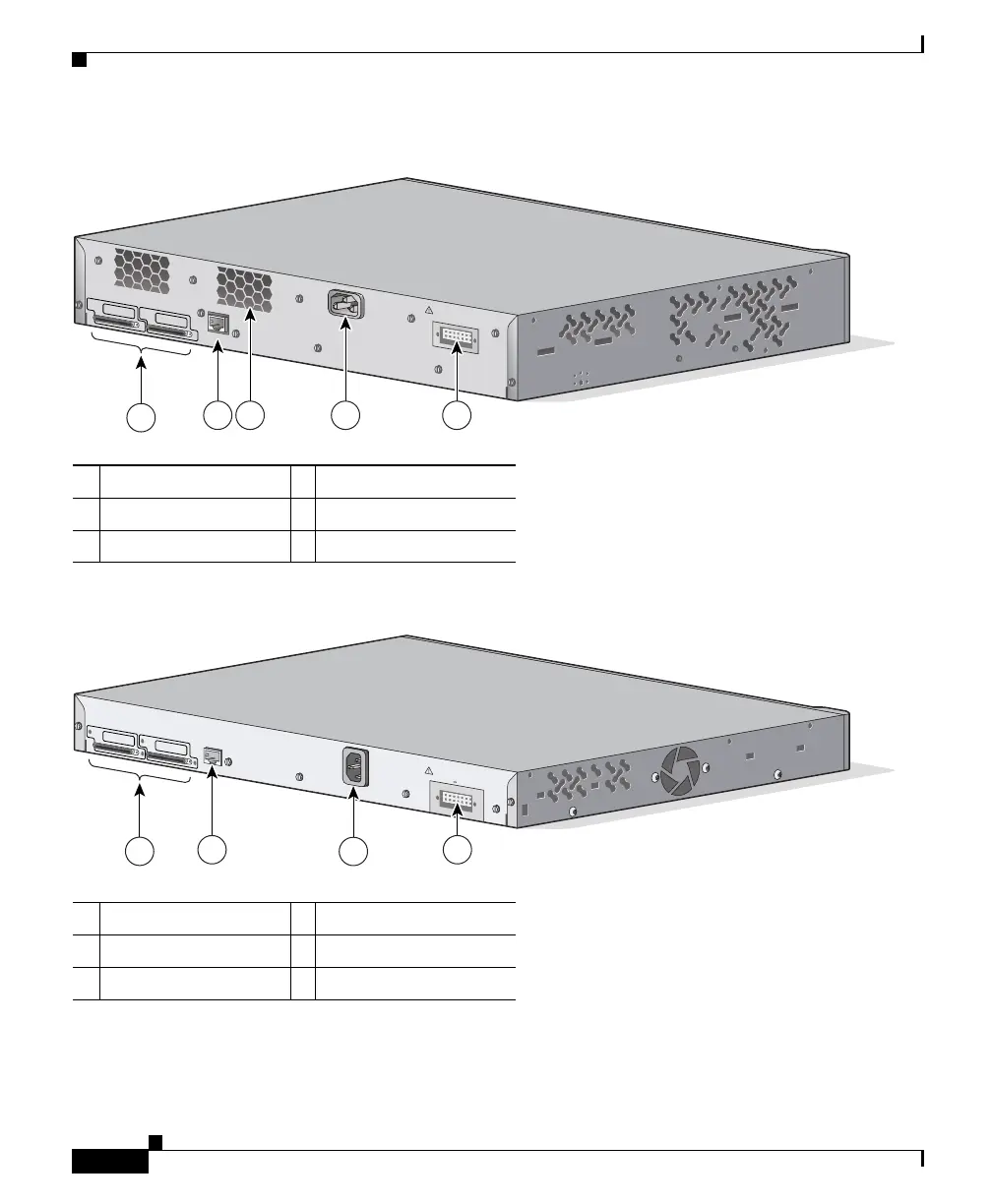

Figure 2-13 Catalyst 3750G-24TS Rear Panel
Figure 2-14 Catalyst 3750-24PS and 3750-48PS Rear Panel
1 StackWise ports 4 AC power connector
2 RJ-45 console port 5 RPS connector
3 Fan exhaust
1 StackWise ports 4 AC power connector
2 RJ-45 console port 5 RPS connector
3 Fan exhaust
CONSOLE
STACK 1
STACK 2
DC INPUTS FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL
+12v @17a
1
2 3 4 5
86547
104763
RATING
100-240V ~
1.6A-0>9A, 50-60 HZ
DC INPUTS FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL
+12v @8.5A
CONSOLE
STACK 1
STACK 2
1
2
3
4
