Chapter 31 Configuring Cisco IOS IP SLAs Operations
Understanding Cisco IOS IP SLAs
on the type of IP SLAs operation, it responds with time-stamp information for the source to make the
calculation on performance metrics. An IP SLAs operation performs a network measurement from the
source device to a destination in the network using a specific protocol such as UDP.

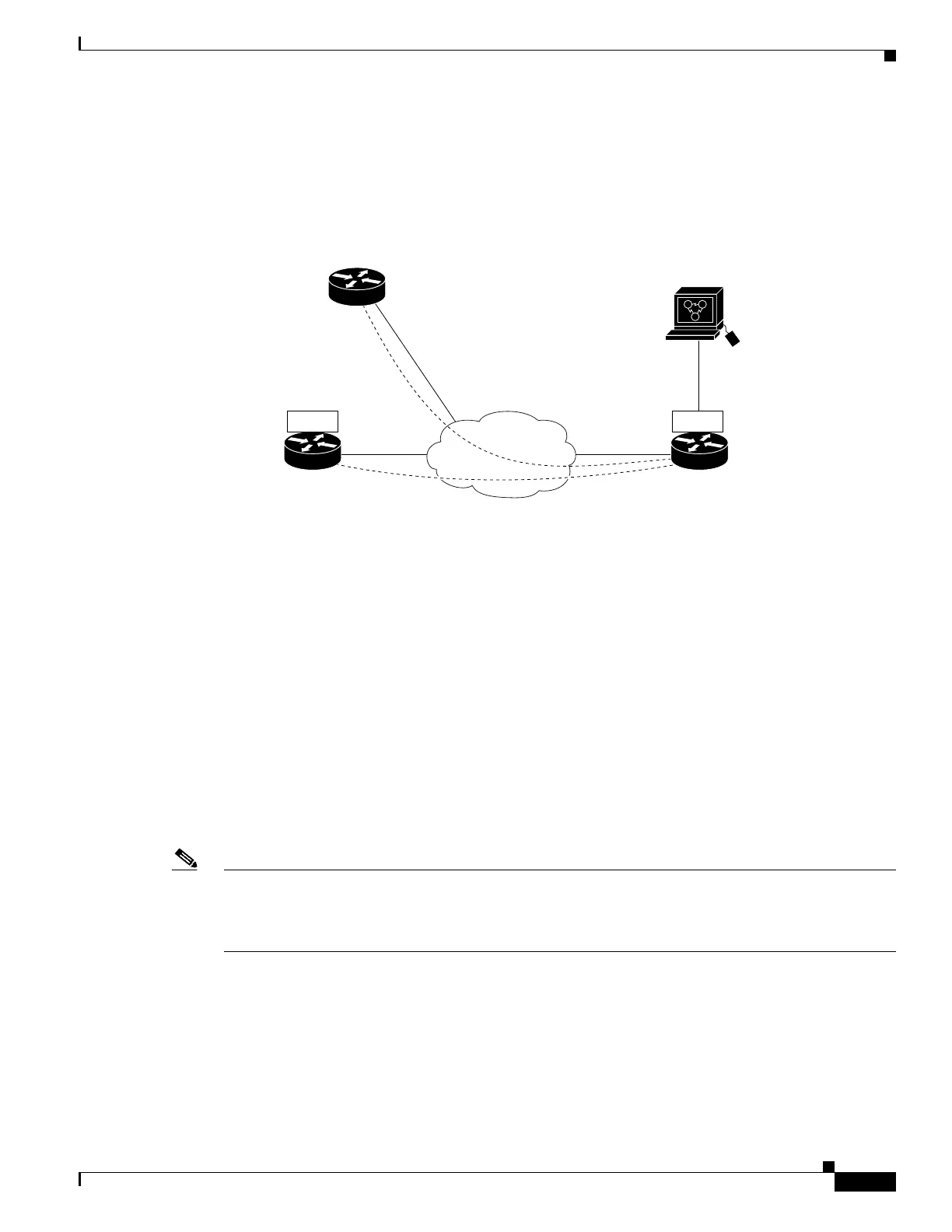

Figure 31-1 Cisco IOS IP SLAs Operation
To implement IP SLAs network performance measurement, you need to perform these tasks:
1. Enable the IP SLAs responder, if required.
2. Configure the required IP SLAs operation type.
3. Configure any options available for the specified operation type.
4. Configure threshold conditions, if required.
5. Schedule the operation to run, then let the operation run for a period of time to gather statistics.
6. Display and interpret the results of the operation using the Cisco IOS CLI or a network
management system (NMS) system with SNMP.
For more information about IP SLAs operations, see the operation-specific chapters in the Cisco IOS IP
SLAs Configuration Guide at this URL:
http://www.cisco.com/en/US/products/ps6441/products_configuration_guide_book09186a0080707055
.html
Note The switch does not support Voice over IP (VoIP) service levels using the gatekeeper registration delay
operations measurements. Before configuring any IP SLAs application, you can use the show ip sla
application privileged EXEC command to verify that the operation type is supported on your software
image.
121381
IP SLA sourceIP SLA responder
IP SLA
Any IP device
SNMP
Performance
management
application
IP network
IP SLA
IP SLA measurementIP SLA measurement
and IP SLA responder toand IP SLA responder to
IP SLA ResponderIP SLA Responder
IP SLA measurement
and IP SLA responder to
IP SLA Responder
IP SLA measurement
and IP SLA responder to
IP SLA Responder
