UNITY INSTALLATION GUIDE
38
Installing or
reseating voice and
Continued
fax boards

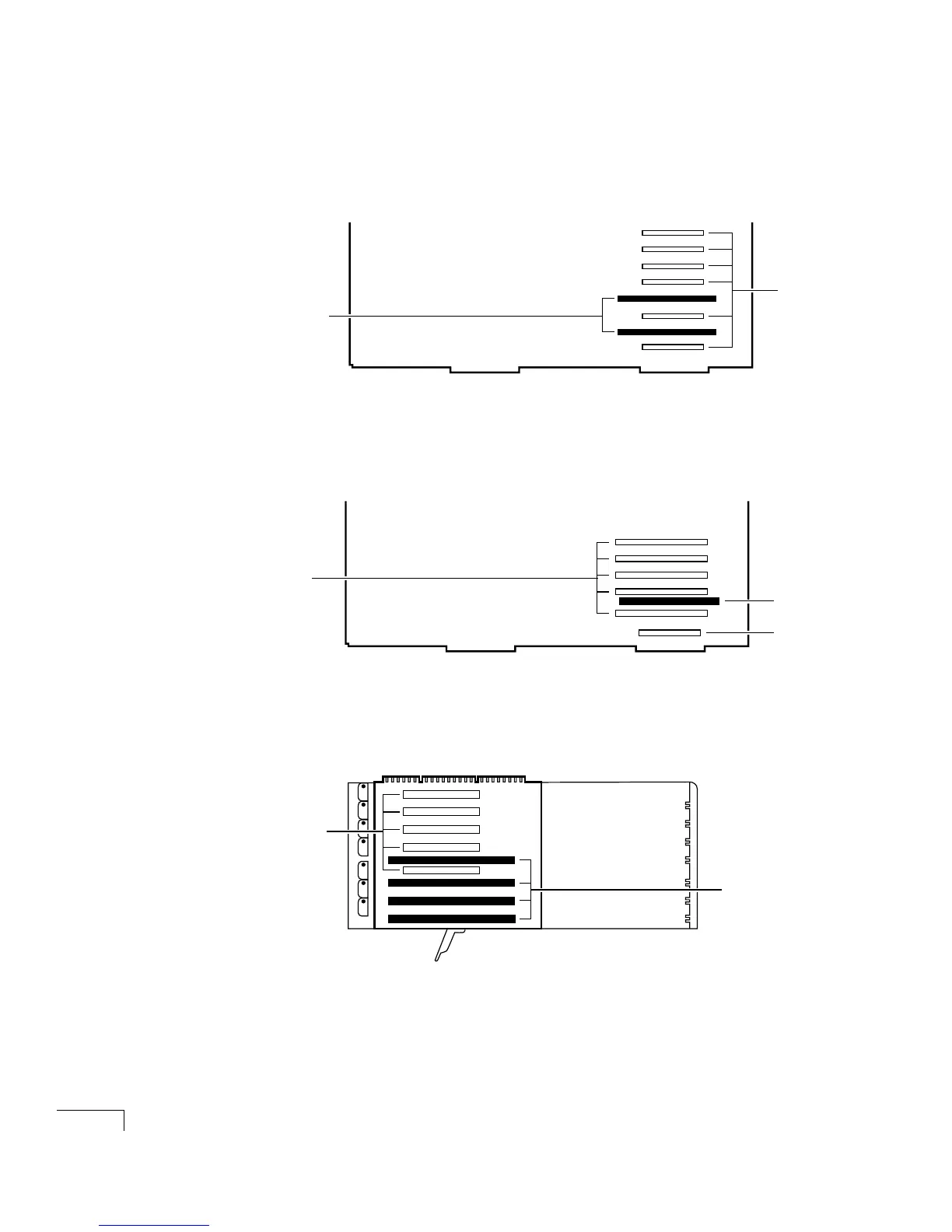

Where to install voice and fax boards in a
turnkey system
ISA slots
32-bit PCI slots
Dell 2300 Unity server
This is a view of the right side with the cover removed. Begin installing
voice boards at the bottom slot and work toward the top slot.
32-bit PCI slot
Full-length
64-bit PCI slots
ISA slot
Dell 2400 Unity server
This is a view of the right side with the cover removed. Begin installing
voice boards at the bottom slot and work toward the top slot.
ISA slots
32-bit PCI slots
Dell G1/GX200 Unity server
This is a top view of the slide-out expansion-board tray. Begin installing
voice boards at the outside slot (closest to the tray-release lever) and
work toward the inside slot.
