Cisco WAP200 Administration Guide

Planning Your Wireless Network
Example of a Simple Wireless Network
Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster 4
2
Example of a Simple Wireless Network

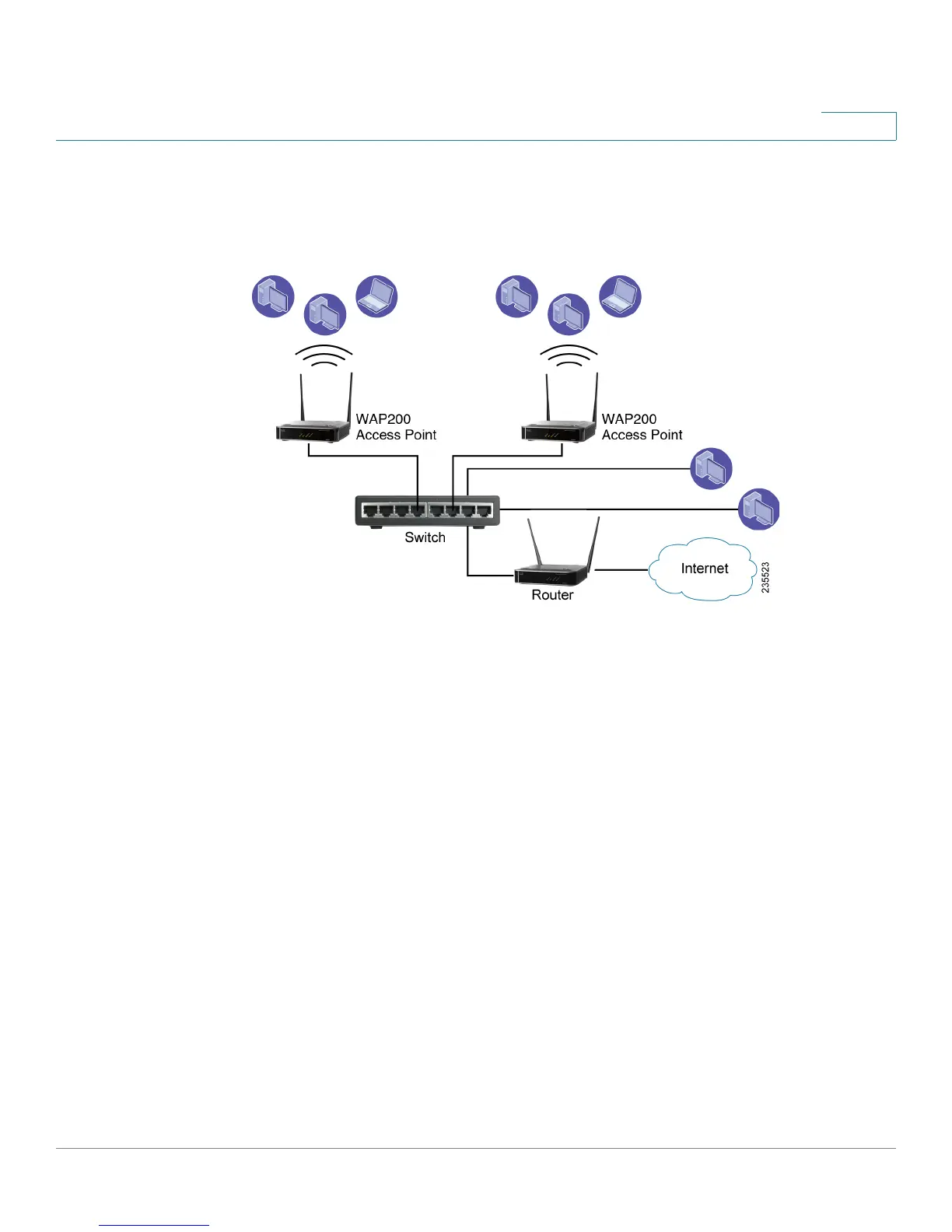

The following diagram shows a typical infrastructure wireless network setup.
In this example, the wireless access points connect to and receive power from a
PoE Cisco switch. Each access point can connect multiple wireless devices to the
network.
This network provides connectivity among wireless network devices and
computers that have a wired connection to the switch.
The switch connects to a router that connects to the Internet.

Cisco WAP200 Specifications

General

Networking standards	IEEE 802.3af, IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
DHCP client	Yes
DHCP server	-
Security algorithms	WEP, WPA, WPA2
Dimensions (WxDxH)	170 x 195 x 205 mm
Storage temperature (T-T)	20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Wi-Fi standards	802.11g, 802.11b
Top Wi-Fi standard	802.11g
Ethernet LAN (RJ-45) ports	1
Product color	Gray

Weight and Dimensions

Weight	400 g
