Cisco WAP200 Administration Guide

Configuring the WAP200 Access Point
Verifying Access Point Status
Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster 71
6
Checking Wireless Status

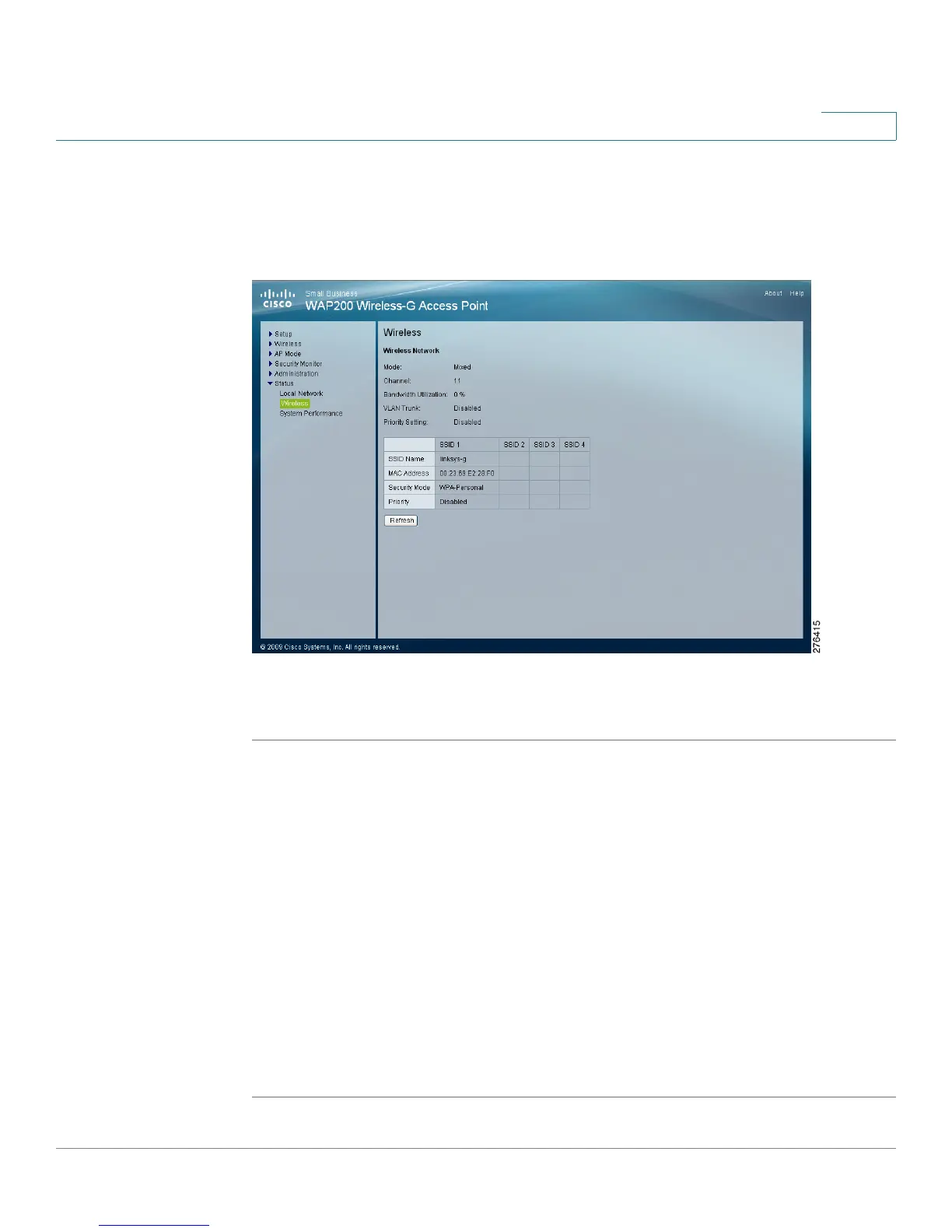

The Status > Wireless window displays the access point’s current status
information for the wireless networks.
To check the wireless network status of the access point, follow these steps:
STEP 1 Click Status > Wireless.
This page displays the status of the wireless network:
• Mode—Access point’s wireless network mode.
• Channel—Access point’s channel setting for the SSID.
• Bandwidth Utilization—Percentage of the bandwidth being used.
• VLAN Trunk—VLAN Trunk status.
• Priority Setting—Priority setting status.
• SSID 1–4—Information about the access point’s SSIDs that have been
configured.
STEP 2 To update the status information, click Refresh.

Cisco WAP200 Specifications

General

Networking standards	IEEE 802.3af, IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
DHCP client	Yes
DHCP server	-
Security algorithms	WEP, WPA, WPA2
Dimensions (WxDxH)	170 x 195 x 205 mm
Storage temperature (T-T)	20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Wi-Fi standards	802.11g, 802.11b
Top Wi-Fi standard	802.11g
Ethernet LAN (RJ-45) ports	1
Product color	Gray

Weight and Dimensions

Weight	400 g
