Cisco WAP200 Administration Guide

Configuring the WAP200 Access Point
Configuring Wireless Settings
Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster 25
6

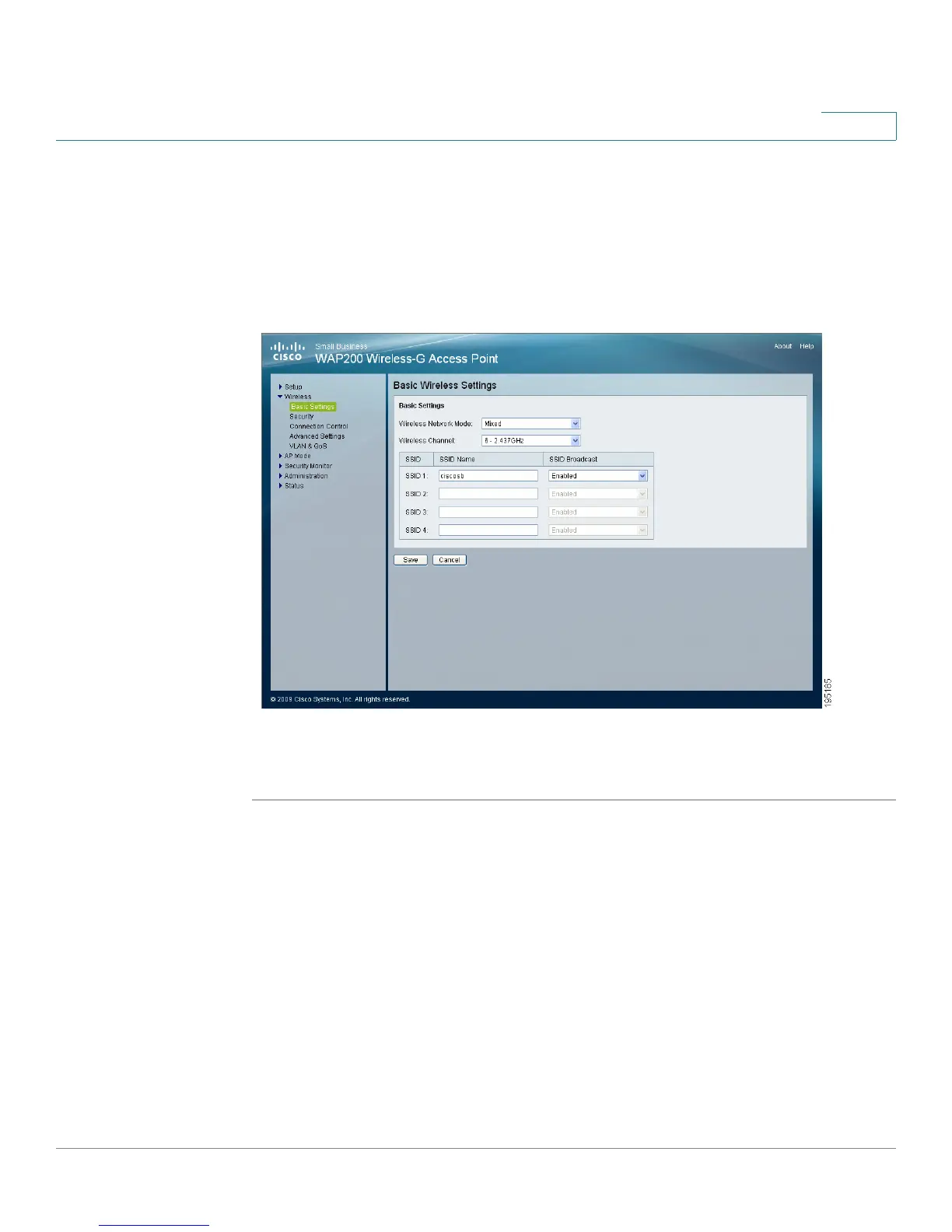

Configuring Basic Settings
The Wireless > Basic Settings window displays the basic wireless network
settings of the access point. The access point can connect to up to four wireless
networks (SSIDs) at the same time, so this window offers settings for up to four
different SSIDs. Each SSID has its own MAC address on this access point.
To configure the Wireless Network basic attributes for the entire system and for
each SSID, follow these steps:
STEP 1 Click Wireless > Basic Settings.
STEP 2 From the Wireless Network Mode drop-down menu, select one of the following
modes. The default is Mixed.
• Disable—Disables wireless connectivity completely. This mode can be
useful during system maintenance.
• B-Only—Connects all the wireless client devices to the access point at
Wireless-B data rates with maximum speed at 11 Mbps.

Cisco WAP200 Specifications

General

Networking standards	IEEE 802.3af, IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
DHCP client	Yes
DHCP server	-
Security algorithms	WEP, WPA, WPA2
Dimensions (WxDxH)	170 x 195 x 205 mm
Storage temperature (T-T)	20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Wi-Fi standards	802.11g, 802.11b
Top Wi-Fi standard	802.11g
Ethernet LAN (RJ-45) ports	1
Product color	Gray

Weight and Dimensions

Weight	400 g
