Cisco WAP200 Administration Guide

Configuring the WAP200 Access Point
Verifying Access Point Status
Cisco WAP200 Wireless-G Access Point with Power Over Ethernet and Rangebooster 72
6

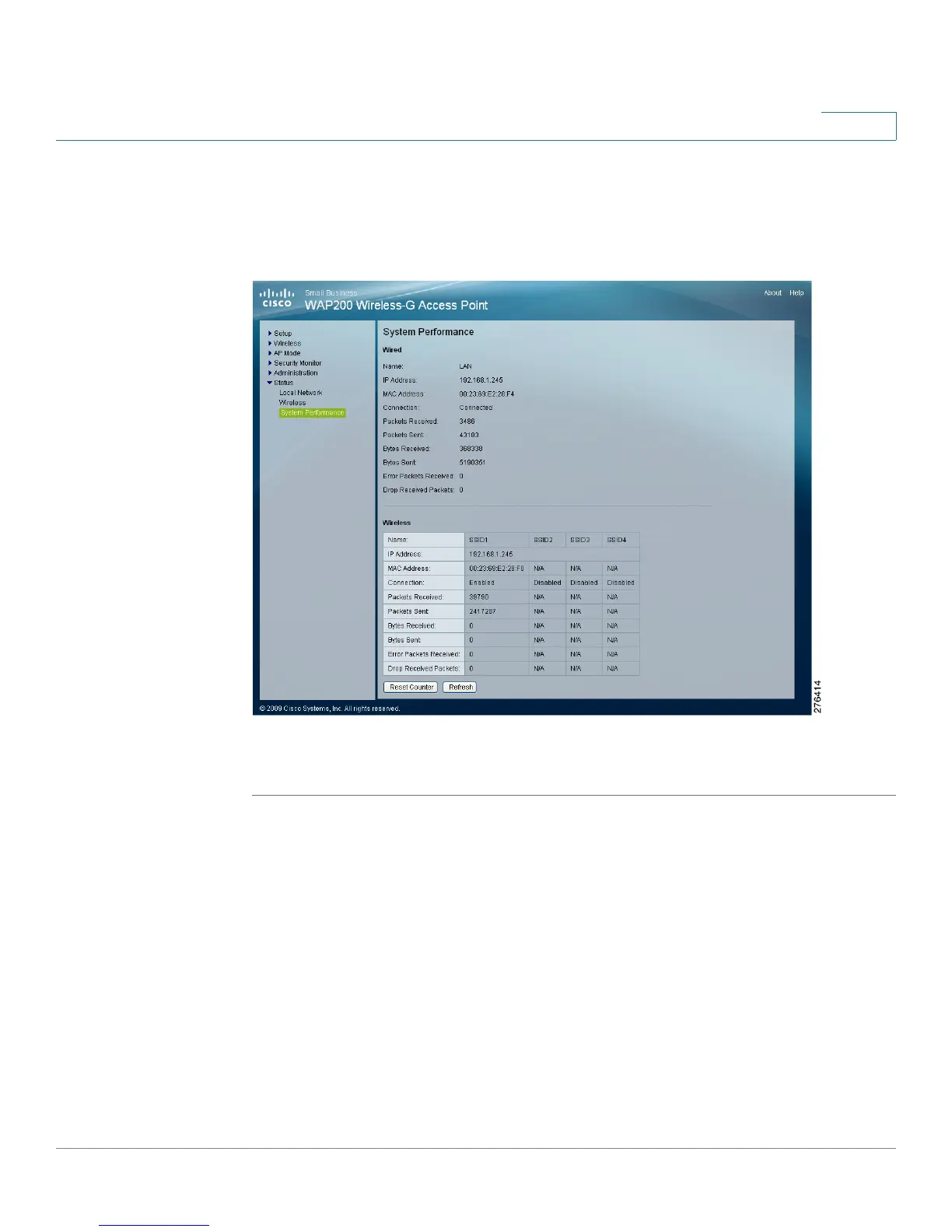

Checking System Performance
The Status > System Performance window displays the access point’s status
information for its current settings and data transmissions.
To check system performance of the access point, follow these steps:
STEP 1 Click Status > Systems Performance.
This page displays the access point’s system performance values:
• Wired
The statistics for the wired network, the LAN.
- Name—Network to which the statistics refer, i.e. the LAN.
- IP Address—Access point’s local IP address.
- MAC Address—MAC Address of the access point’s wired interface.
- Connection—Status of the access point’s connection for the wired
network.

Cisco WAP200 Specifications

General

Networking standards	IEEE 802.3af, IEEE 802.11b, IEEE 802.11g
Supports ISDN connection	No
DHCP client	Yes
DHCP server	-
Security algorithms	WEP, WPA, WPA2
Dimensions (WxDxH)	170 x 195 x 205 mm
Storage temperature (T-T)	20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Wi-Fi standards	802.11g, 802.11b
Top Wi-Fi standard	802.11g
Ethernet LAN (RJ-45) ports	1
Product color	Gray

Weight and Dimensions

Weight	400 g
