Citrix ADC MPX
The Citrix ADC MPX 15000-50G appliance is a 2U appliance. This platform has two 8-core processors
and 128 GB of memory. The MPX 15000-50G appliance provides a total of 12 network ports:
• Eight 10G SFP+ Ethernet Ports
• Four 50G Ethernet Ports
For information about the soware releases supported on the Citrix ADC hardware platforms, see Cit-
rix ADC MPX hardware soware compatibility matrix.

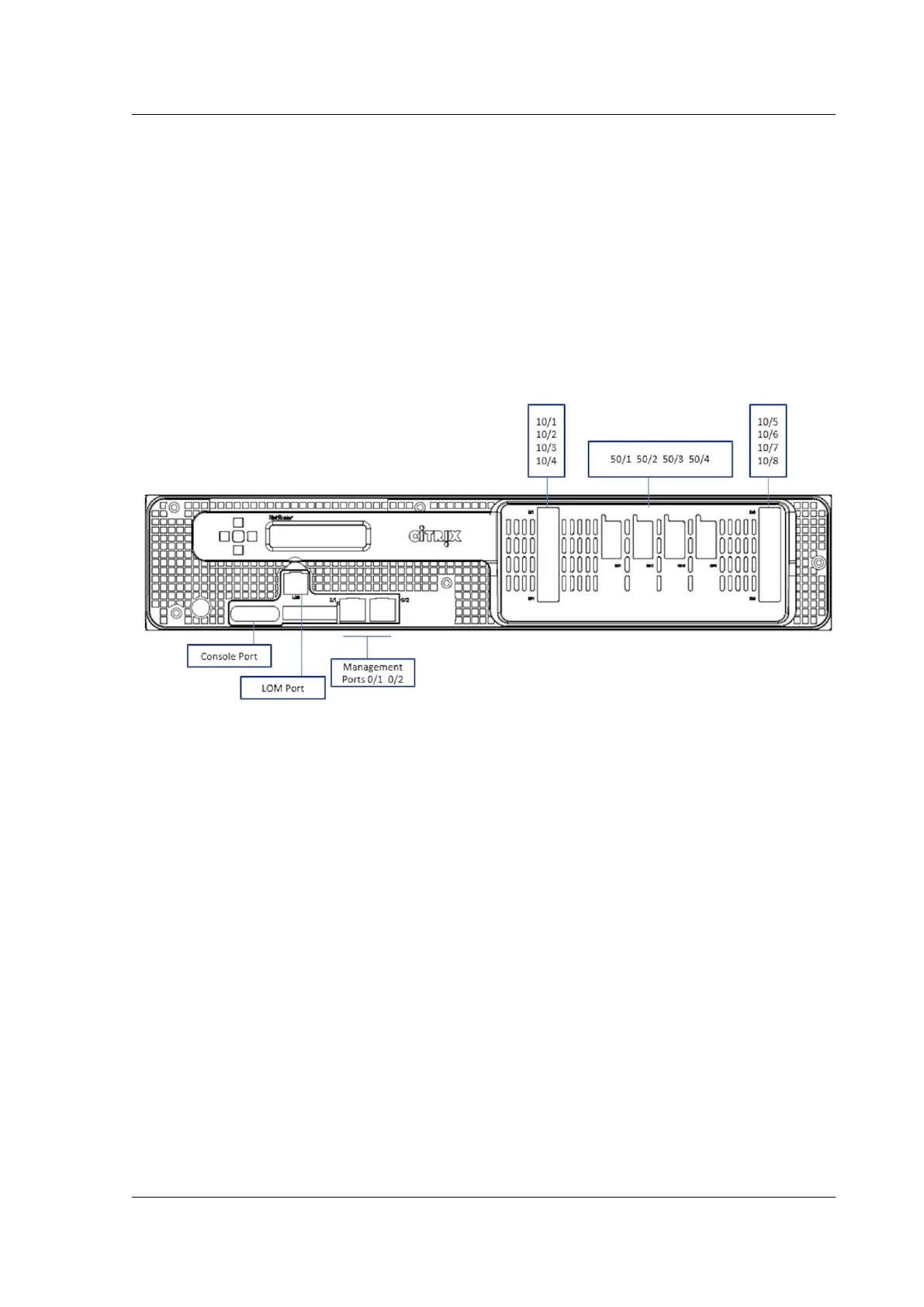

The following figure shows the front panel of the Citrix ADC MPX 15000-50G appliance.
Figure 1. Citrix ADC MPX 15000-50G, front panel
The Citrix ADC MPX 15000-50G appliances have the following ports:
• RS232 serial console port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T RJ45 copper Ethernet Management ports, numbered 0/1 and 0/2. This
port is used to connect directly to the appliance for Citrix ADC administration functions.
• Eight 10G SFP+ Ethernet ports, numbered 10/1 to 10/8.
• Four 50G ports, numbered 50/1 to 50/4.
The following figure shows the back panel of the Citrix ADC MPX 15000-50G appliance.
Figure 2. Citrix ADC MPX 15000-50G, back panel
