Citrix ADC MPX Series User Manual

Citrix ADC MPX
The Citrix ADC
MPX 22040/22060/22080/22100/22120 are 2U appliances. Each model has two 8-core processors and
256 gigabytes (GB) of memory. The
MPX 22040/22060/22080/22100/22120 appliances are available in two port configurations:
• Twelve 1G SFP ports and twenty-four 10G SFP+ ports (12x1G SFP + 24x10G SFP+)
• Twenty-four 10G SFP+ ports (24x10G SFP+)

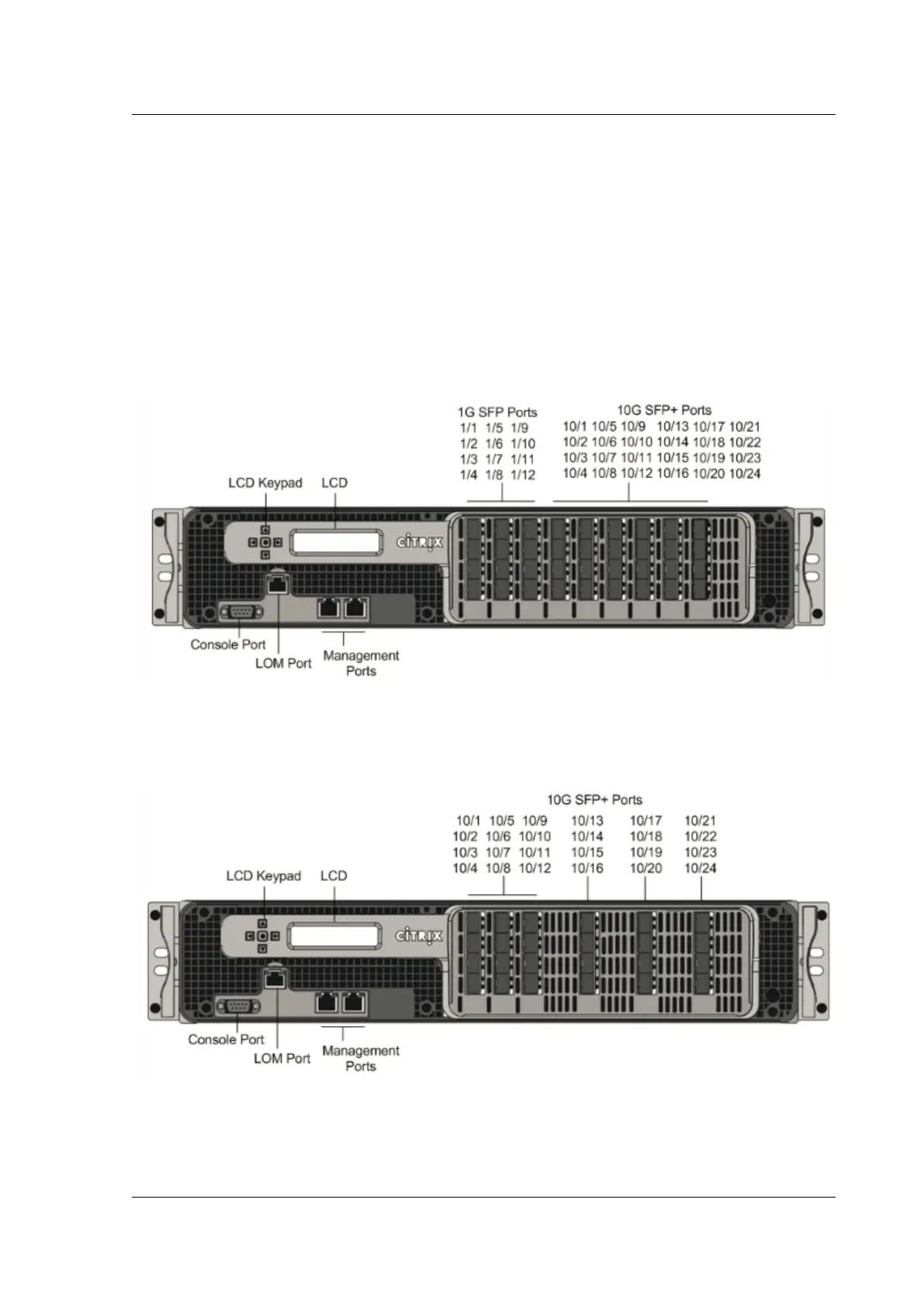

The following figure shows the front panel of the MPX 22040/22060/22080/22100/22120 (12x1G SFP +
24x10G SFP+) appliance.
Figure 1. Citrix ADC MPX 22040/22060/22080/22100/22120 (12x1G SFP + 24x10G SFP+), front panel
The following figure shows the front panel of the MPX 22040/22060/22080/22100/22120 (24x10G SFP+)
appliance.
Figure 2. Citrix ADC MPX 22040/22060/22080/22100/22120 (24x10G SFP+), front panel
Depending on the model, the appliance has the following ports:
• RS232 serial Console Port.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 64

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
