171
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engines: RHL - RHR
B1EP1FJC

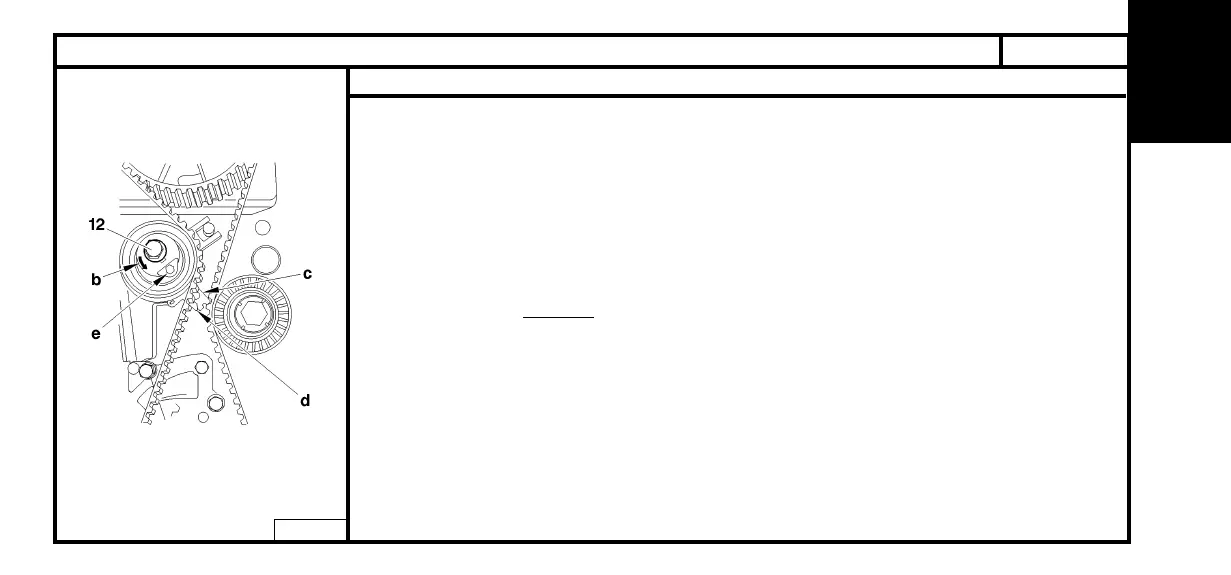

Bring the index «d» outside the plate at «c», by turning the tensioner roller in the direction of the arrow
«b», using a hexagonal spanner at «e».
Tighten screw (12) of the tensioner roller (17) to 2,1 ± 0,2 m.daN.
Lock the flywheel, by means of tool [6].
Refit the auxiliaries drive pulley (7).
Tighten the screw (8) to 7 ± 0,7 m.daN.
Remove tools [6], [2] and [3].
Rotate the crankshaft ten times (in the direction of rotation of the engine).
Peg:
- The crankshaft, using tool [2].
- The camshaft drive pinion, using tool [3].
Lock the flywheel, using tool [6].
Slacken:
- The screw (8) of the auxiliaries drive pulley (7).
- The screw (12) of the tensioner roller (17).
C5
