Clear-Com 4000 II Series User Manual

Technical Manual Issue 2.1 4000 Digital Series II
Page 86 STA0381

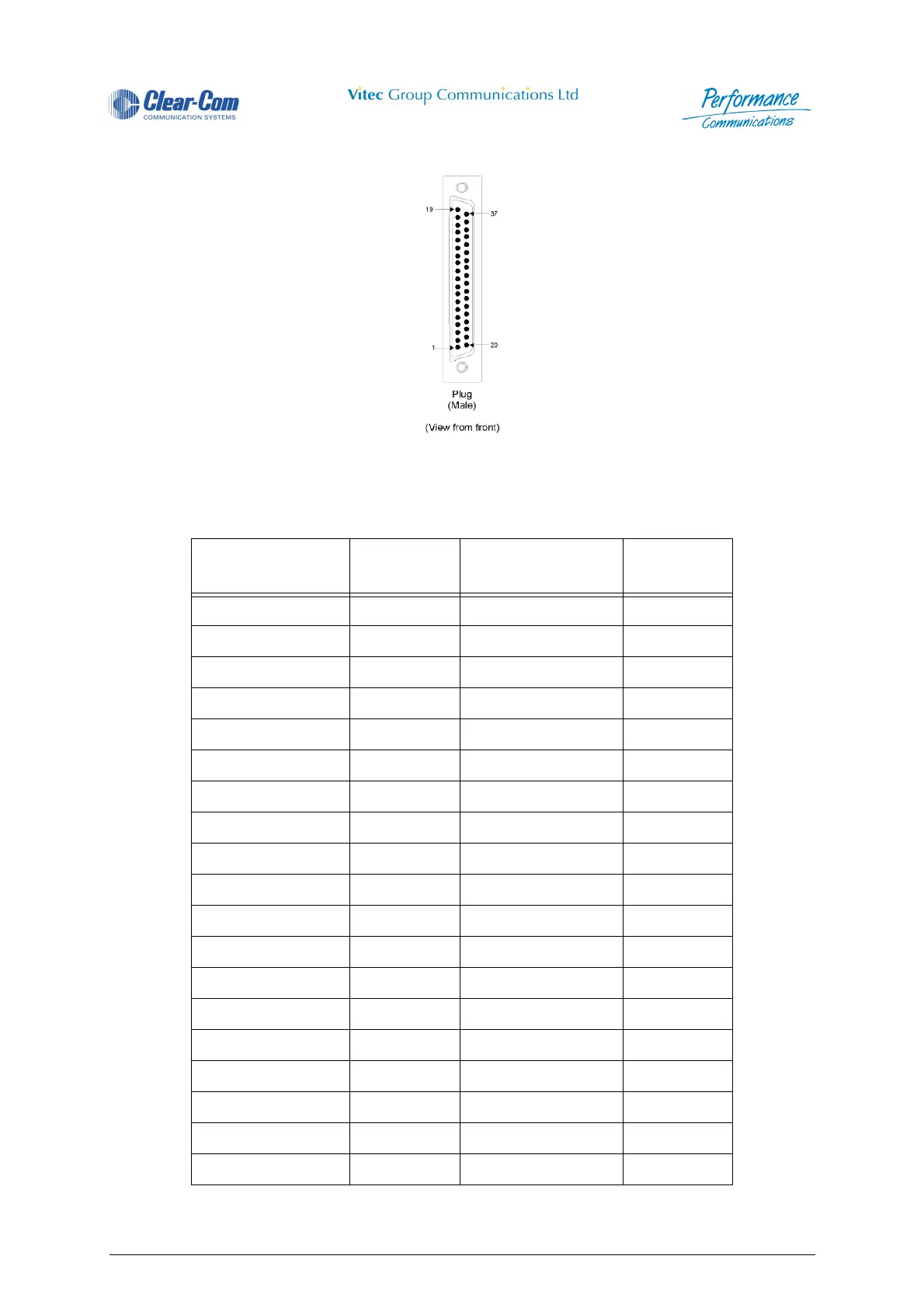

Table 5: PDE4663 - GPI Outputs
Description
Pin
Number
Description
Pin
Number
Relar Output 1 P 1 Relay Output 7 P 20
Relay Output 1 N/C 2 Relay Output 7 N/C 21
Relay Output 1 N/O 3 Relay Output 7 N/O 22
Relay Output 2 P 4 Relay Output 8 P 23
Relay Output 2 N/C 5 Relay Output 8 N/C 24
Relay Output 2 N/O 6 Relay Output 8 N/O 25
Relay Output 3 P 7 Relay Output 9 P 26
Relay Output 3 N/C 8 Relay Output 9 N/C 27
Relay Output 3 N/O 9 Relay Output 9 N/O 28
Relay Output 4 P 10 Relay Output 10 P 29
Relay Output 4 N/C 11 Relay Output 10 N/C 30
Relay Output 4 N/O 12 Relay Output 10 N/O 31
Relay Output 5 P 13 Relay Output 11 P 32
Relay Output 5 N/C 14 Relay Output 11 N/C 33
Relay Output 5 N/O 15 Relay Output 11 N/O 34
Relay Output 6 P 16 Relay Output 12 P 35
Relay Output 6 N/C 17 Relay Output 12 N/C 36
Relay Output 6 N/O 18 Relay Output 12 N/O 37
Tech 0 Volts 19
