Clear-Com 4000 II Series User Manual

Technical Manual Issue 2.1 4000 Digital Series II
Page 90 STA0381
GPI Input 11 6 GPI Input 12 25
N.C. 7-16 N.C. 26-35
Isolated Inputs (requires external +7
Volts to +24 Volts applied)
17 Tech 0 Volts 36
Isolated Inputs (requires external +7
Volts to +24 Volts applied)
18 Tech 0 Volts 37
Common 24V Return 19

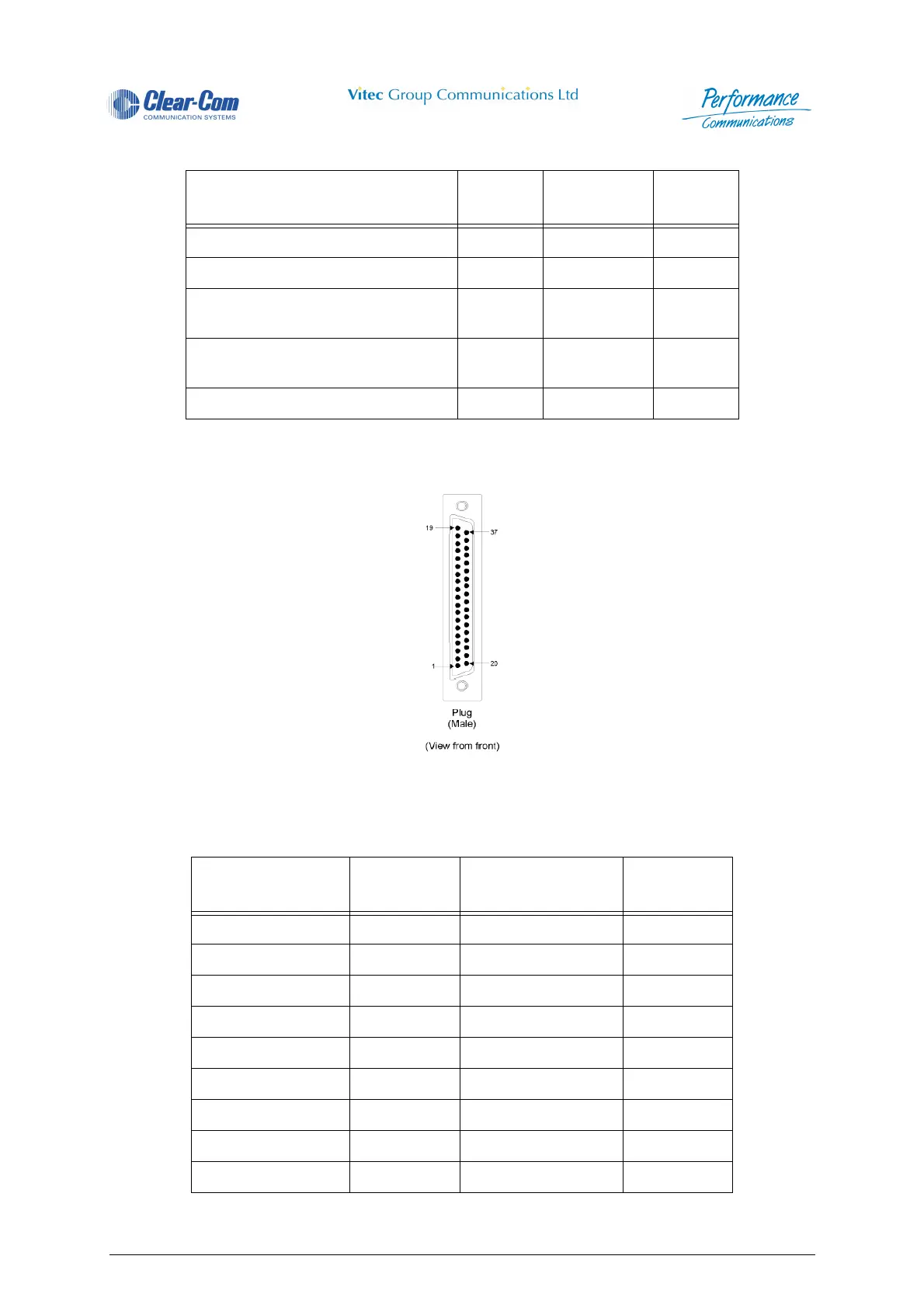

Table 9: PDE4663B - GPI Outputs
Description
Pin
Number
Description
Pin
Number
Relar Output 1 P 1 Relay Output 7 P 20
Relay Output 1 N/C 2 Relay Output 7 N/C 21
Relay Output 1 N/O 3 Relay Output 7 N/O 22
Relay Output 2 P 4 Relay Output 8 P 23
Relay Output 2 N/C 5 Relay Output 8 N/C 24
Relay Output 2 N/O 6 Relay Output 8 N/O 25
Relay Output 3 P 7 Relay Output 9 P 26
Relay Output 3 N/C 8 Relay Output 9 N/C 27
Relay Output 3 N/O 9 Relay Output 9 N/O 28
Table 8: PDE4663B - GPI Inputs
Description
Pin
Number
Description
Pin
Number
