4000 Digital Series II Issue 2.1 Technical Manual

STA0381 Page 27

2.2.10 PD4226R/PD 4226 32-key control panel (2RU)

2.2.10.1 PD4226R Front View

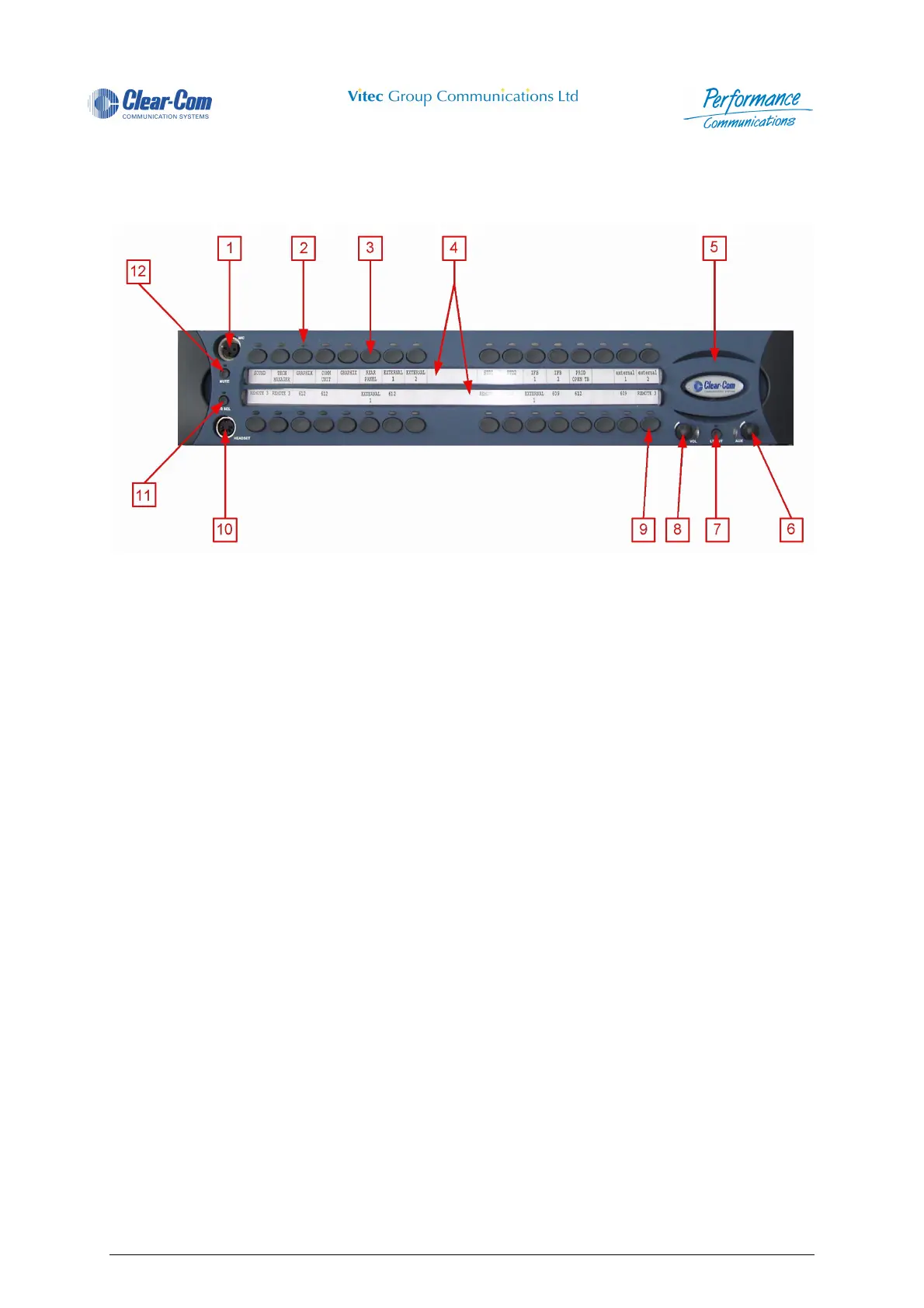

Figure 21 - PD4226R Front View

1 Microphone Socket 7 Loudspeaker Cut Pushbutton

2 Indicator LED 8 Main Volume Control and Associated LED

3 Direct Access Key (DAK) 9 Reply Key

4 Designation Strips 10 Headset Socket

5 Loudspeaker Aperture 11 Headset Select Button and Associated

LED

6 Auxiliary Volume Control and LED 12 Microphone Mute and Associated LED
