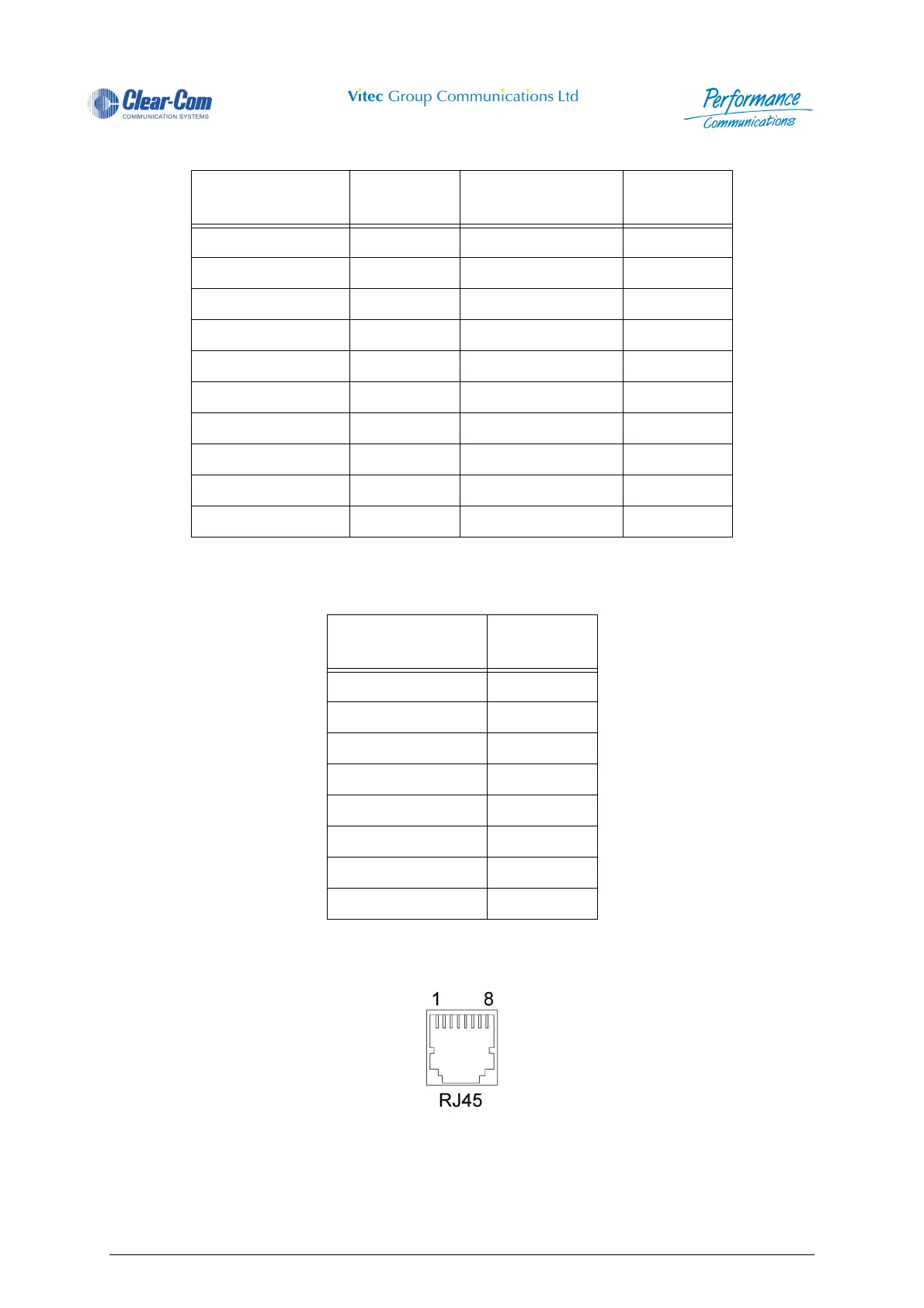

4000 Digital Series II Issue 2.1 Technical Manual
STA0381 Page 91
Relay Output 4 P 10 Relay Output 10 P 29
Relay Output 4 N/C 11 Relay Output 10 N/C 30
Relay Output 4 N/O 12 Relay Output 10 N/O 31
Relay Output 5 P 13 Relay Output 11 P 32
Relay Output 5 N/C 14 Relay Output 11 N/C 33
Relay Output 5 N/O 15 Relay Output 11 N/O 34
Relay Output 6 P 16 Relay Output 12 P 35
Relay Output 6 N/C 17 Relay Output 12 N/C 36
Relay Output 6 N/O 18 Relay Output 12 N/O 37
Tech 0 Volts 19
Table 10: PDE4663B - Ethernet RJ45
Description
Pin
Number
Data Transmit (TD+) 1
Data Transmit (TD-) 2
Data receive RD+) 3
-4
-5
Data Receive (RD-) 6
-7
-8
Table 9: PDE4663B - GPI Outputs
Description
Pin
Number
Description
Pin
Number
