2.2.5 PD4216 - Custom Panel Interface (1RU)
2.2.5.1 PD4216 Front View

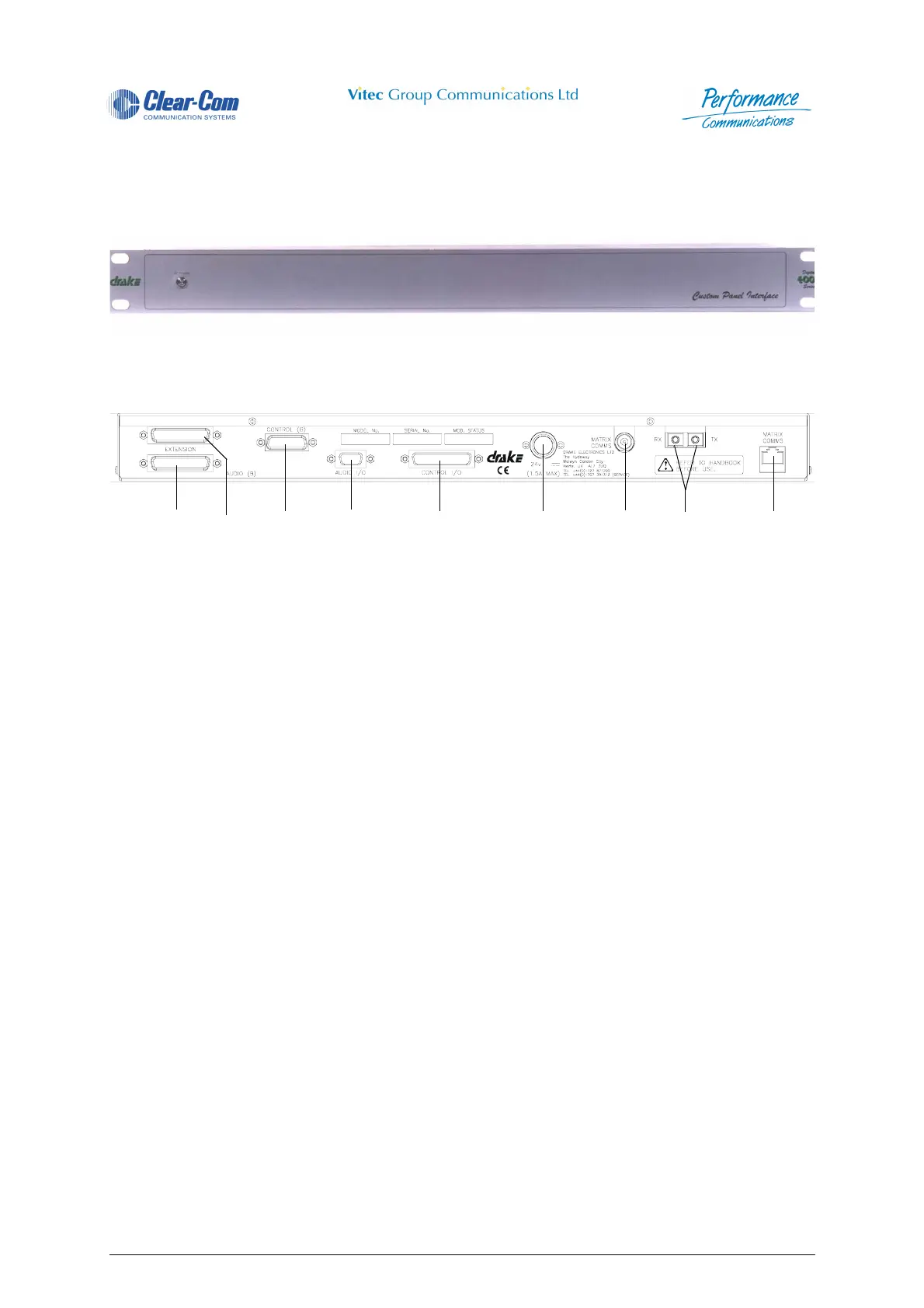

Figure 12 - PD4216 Front View
2.2.5.2 PD4216 Rear View
Figure 13 - PD4216 Rear View
The 4216 is a 1RU x 19" interface unit, developed to enable Custom Control Panels to be used with the
4000 Matrices. Connection to Custom Control Panels is via serial links and panels must be fitted with a
variant of the PDE 3531 Custom Panel PCB to make use of this facility.
1 Audio (B) Input/Output connector 6 DC input connector
2 Extension Connector 7 Matrix comms connector (optional)
3 Remote Driver Panel connector 8 Coax/Fibre connectors (optional)
4 Audio I/O (optional) 9 RJ45 connector
5 Control I/O (optional)
1
2
3
45
6
7
8
9
