4000 Digital Series II Issue 2.1 Technical Manual
STA0381 Page 55
2.3.3 PD4230R Half Width LCD Extension Panel (1RU)

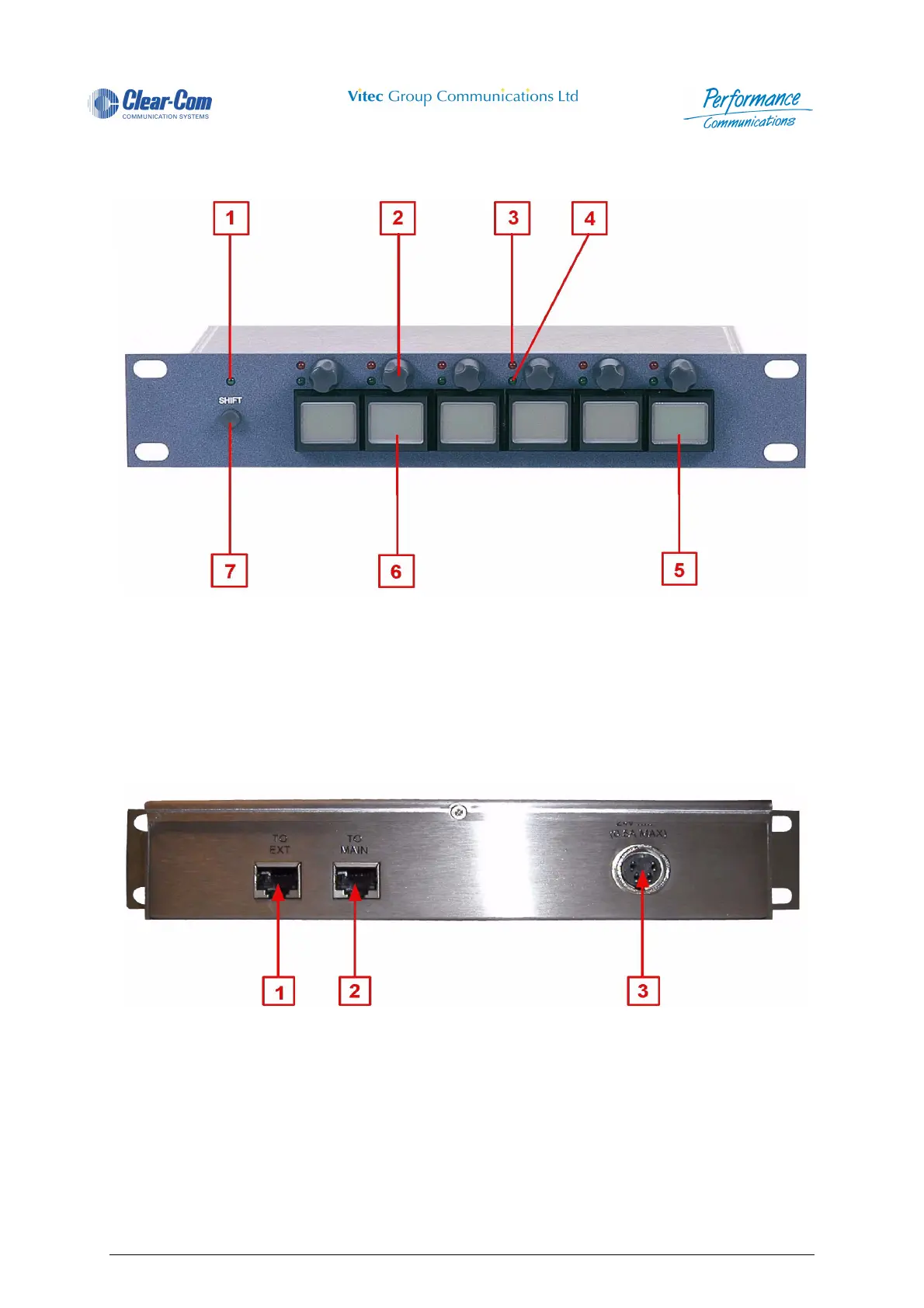

Figure 44 - PD4230R Front View
Figure 45 - PD4230R Rear View
1 Shift mode LED 5 Reply Key
2 Crosspoint Level Control 6 Direct Access Key (DAK)
3 Talk Tally LED 7 Shift Pushbutton
4 Listen Tally LED
1 Extension Panel Connector (RJ45) 3 DC Power Connector (DIN)
2 Matrix Comms Connector (RJ45) 4
