2.2.17 PD4296MCI LCD Desktop Panel

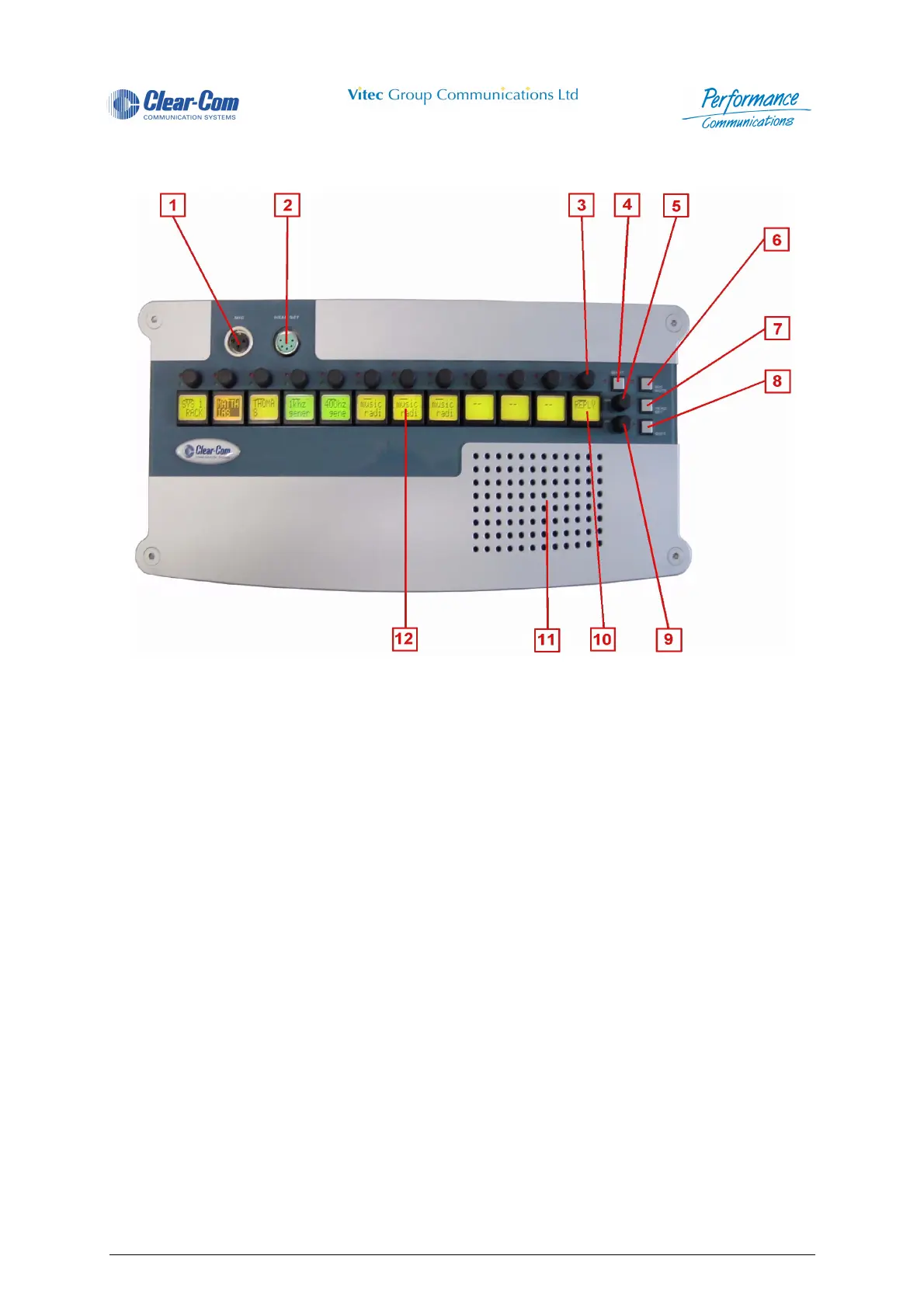

Figure 37 - PD4296MCI Front View
1 Microphone Socket 7 Headset Select Pushbutton
2 XLR5 Headset Socket 8 Soft Pushbutton
3 Crosspoint Level Control 9 Auxiliary Volume Control
4 Shift Pushbutton 10 Reply Key
5 Main Volume Control 11 Loudspeaker
6 Microphone Mute Pushbutton 12 Direct Access Key (DAK)
