Clear-Com 4000 II Series User Manual

4000 Digital Series II Issue 2.1 Technical Manual
STA0381 Page 7

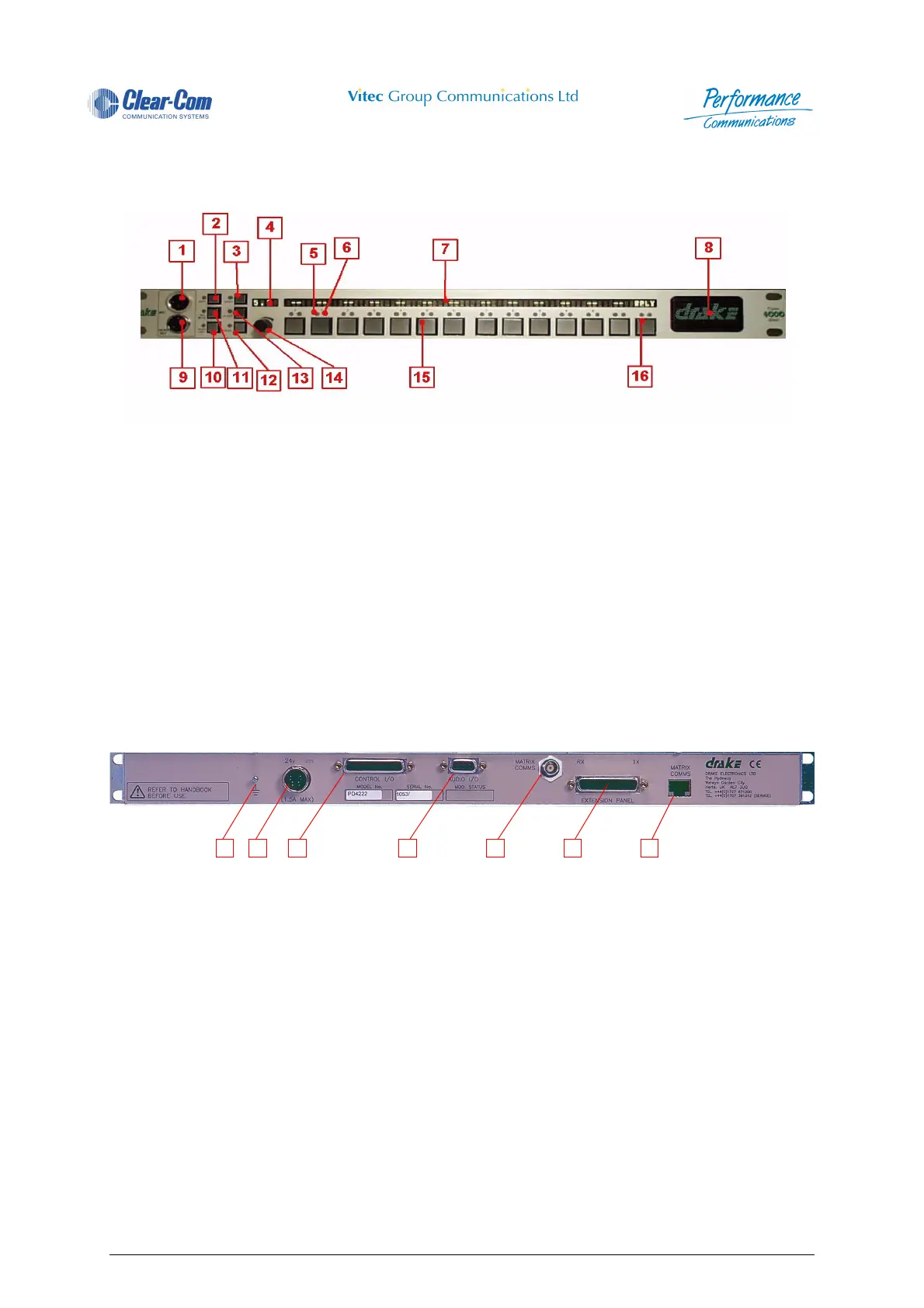

2.2.2 PD4217 - Intelligent Control Panel (1RU)
2.2.2.1 PD4217 Front View
Figure 4 - PD4217 Front View
2.2.2.2 PD4217 Rear View
Figure 5 - PD4217 Rear View
1 Microphone Socket 9 Headset Socket
2 Soft Mode Pushbutton 10 Headset Select Pushbutton
3 Shift Pushbutton 11 Microphone Mute Pushbutton
4 Rotary LED Display 12 Level Control Pushbutton
5 Talk Tally LED 13 Loudspeaker Cut Pushbutton
6 Listen Tally LED 14 Rotary Encoder
7 Alphanumeric LED Display 15 Direct Access Key (DAK)
8 Loudspeaker 16 Reply Key
1 Earth Connection 5 Matrix Comms Connector (BNC) (Optional)
2 DC Power Connector (DIN) 6 Extension Panel Connector
3 Control I/O (Optional) 7 Matrix Comms Connector (RJ45)
4 Audio I/O (Optional)
2 3 4 5 6 7 1
