2.2.14.2 PD4232RBL Rear View

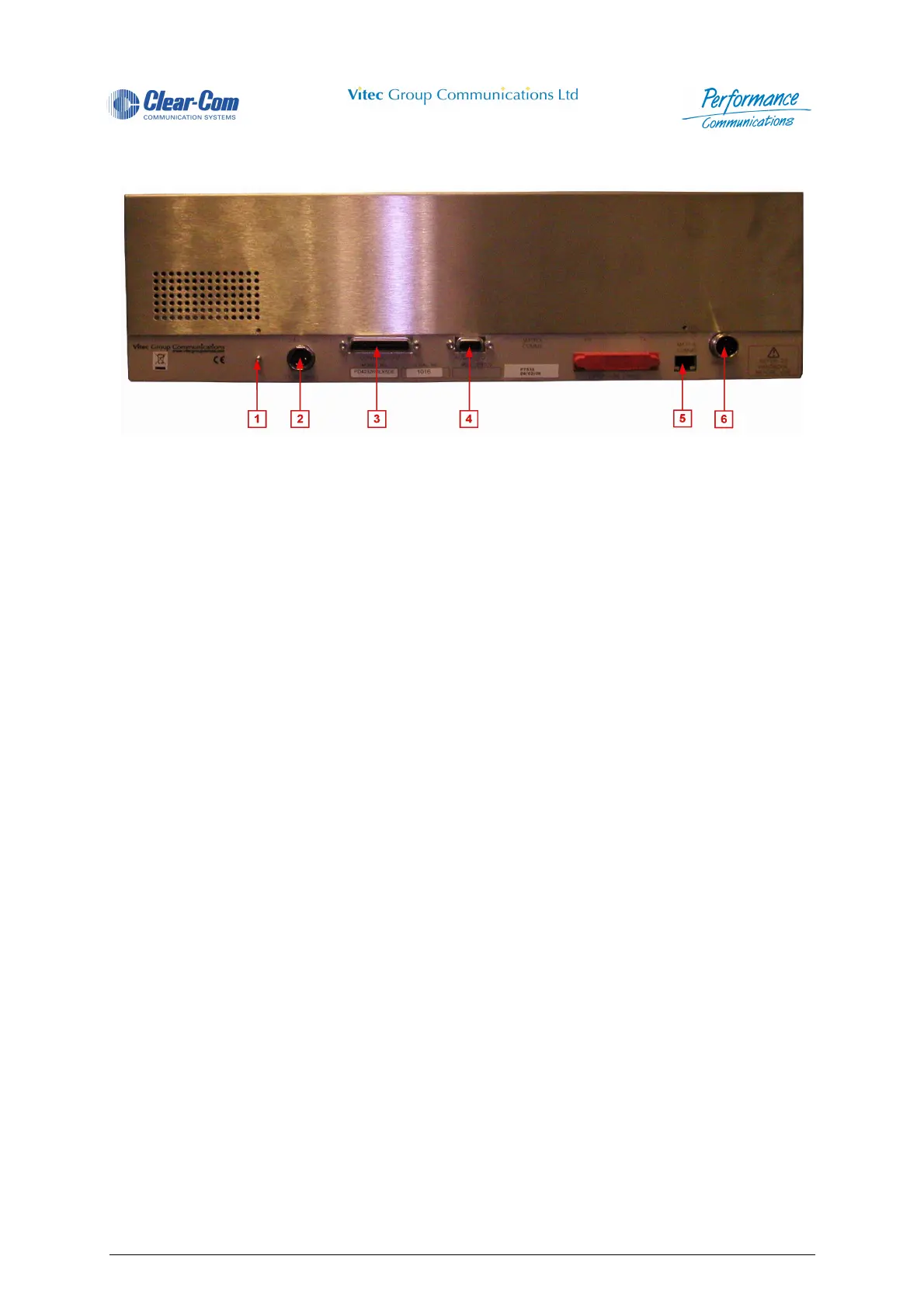

Figure 32 - PD4232RBL Rear View

1 Earth Connection 4 Matrix Comms Connector (BNC) (Optional)

2 DC Power Connector (DIN) 5 Extension Panel Connector

3 Control I/O (Optional) 6 Matrix Comms Connector (RJ45)
