Clear-Com 4000 II Series User Manual

4000 Digital Series II Issue 2.1 Technical Manual
STA0381 Page 39
2.2.14 PD4232RBL LCD Key Panel and Rotary Encoder (3RU)
2.2.14.1 PD4232RBL Front View

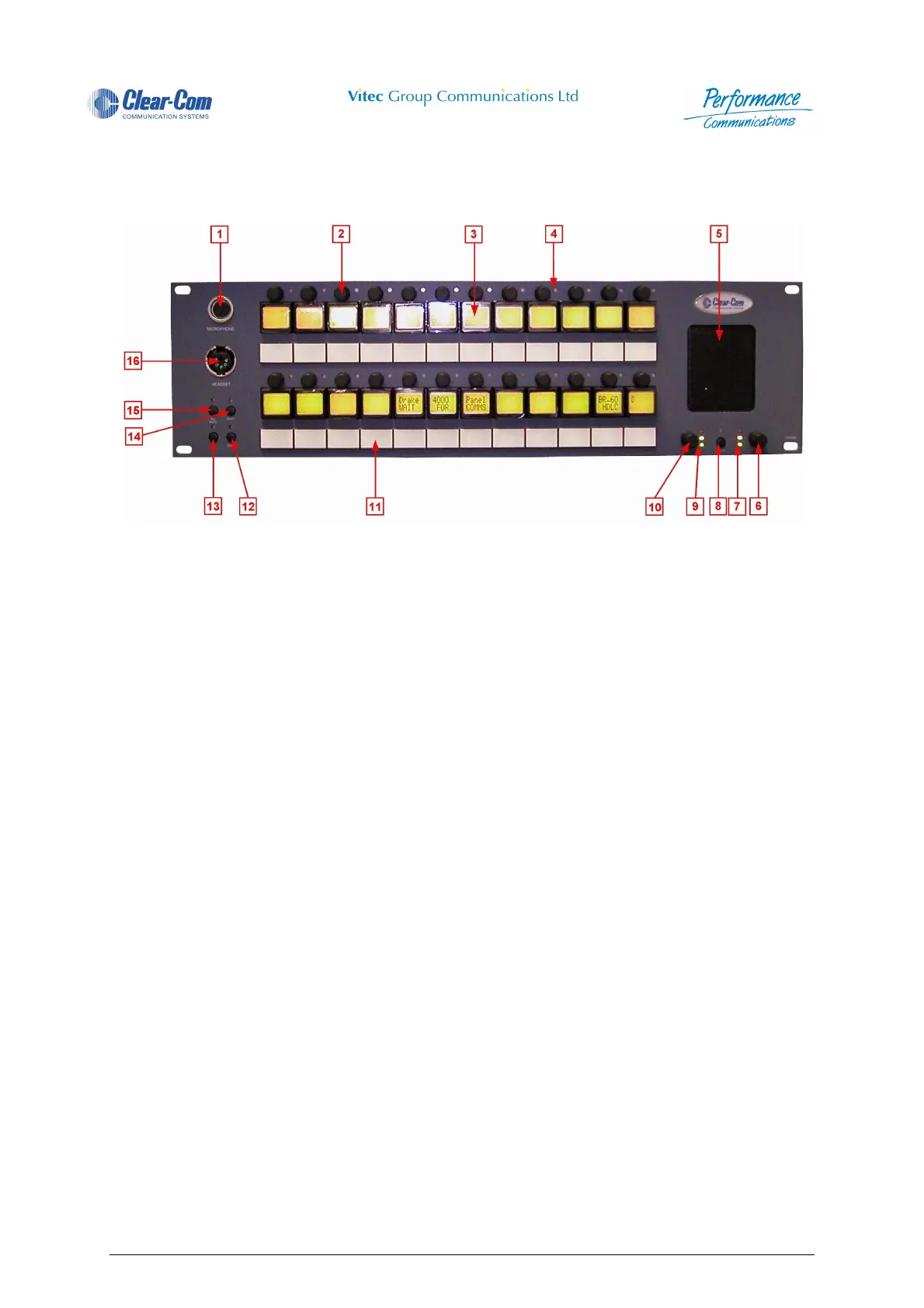

Figure 31 - PD4232RBL Front View
1 Microphone Socket 9 Main Volume Indicator LEDs
2 Level Control 10 Main Volume Control
3 Direct Access Key (DAK) 11 Scribble Strip
4 Indicator LED 12 Soft Pushbutton
5 Loudspeaker 13 Headset Select Pushbutton
6 Auxiliary Volume Control 14 Shift Pushbutton
7 Auxiliary Volume Indicator LEDs 15 Microphone Mute Pushbutton
8 Loudspeaker Cut Pushbutton 16 Headset Socket
