Horizon Starter Manual 1-7
Setting Up the Imager
•
Category 5, RJ-45 [also referred to as unshielded twisted pair
(UTP)] network patch cables and crossover cables
•
10/100 Base-T Ethernet hubs
1. Locate the Ethernet cable jack at the back of the imager and
insert the Ethernet cable.
2. Connect the other end of the Ethernet cable to the Ethernet hub
or to the workstation’s Ethernet jack.
CAUTION
Make sure that the imager is powered off before connecting the Ethernet
cable. For information about powering the imager on and off, refer to “Powering the
Imager On and Off” on page 2-3.
CAUTION
Do not touch any of the connector pins.
8

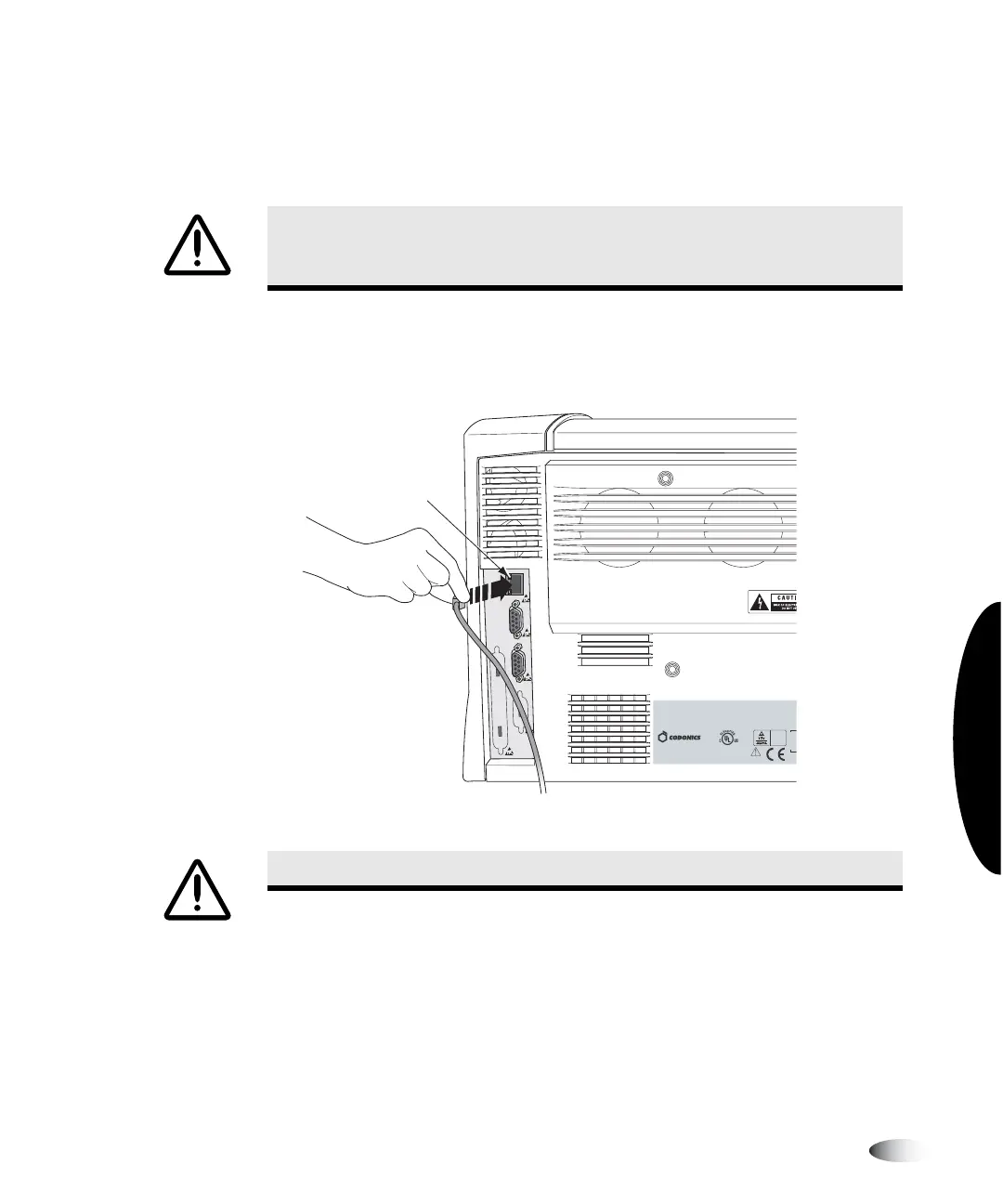

To connect the
Ethernet cable
to the imager
NETWORK
C
ONSO
L
E
UP
S
