The following illustrations show the names and locations of the
main imager components.

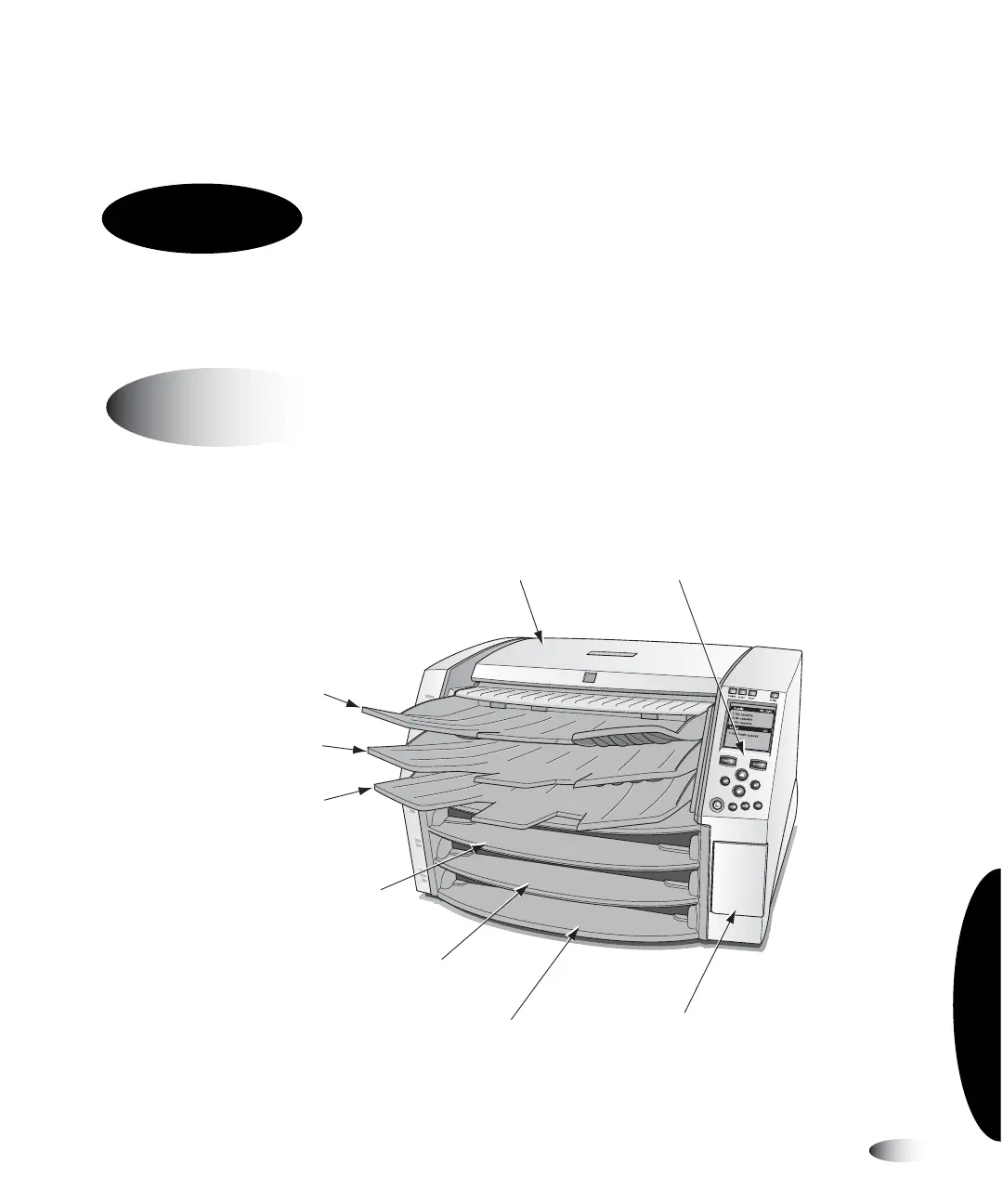

Names and Locations of the Imager’s Main Components—Front
Horizon Imager Components
Top cover Control panel
Receive tray 1
Receive tray 3
Supply slot 1
Supply slot 2
Supply slot 3
Smart Card/
Zip drive panel door
Receive tray 2
