InteliMains
NT
, SW version 3.0
InteliMains-NT-BTB-3.0-Reference Guide.pdf, ©ComAp – June 2013
This setpoint adjusts maximum difference between busL and busR voltage in
respective phases for voltage matching during synchronizing.
12.2.9.2 Setpoint: BRtoBLAngleReq
Requested phase difference between busR and busL voltage during
synchronizing. Use this setpoint for phase correction of potential transformers
connection.
EXAMPLE:

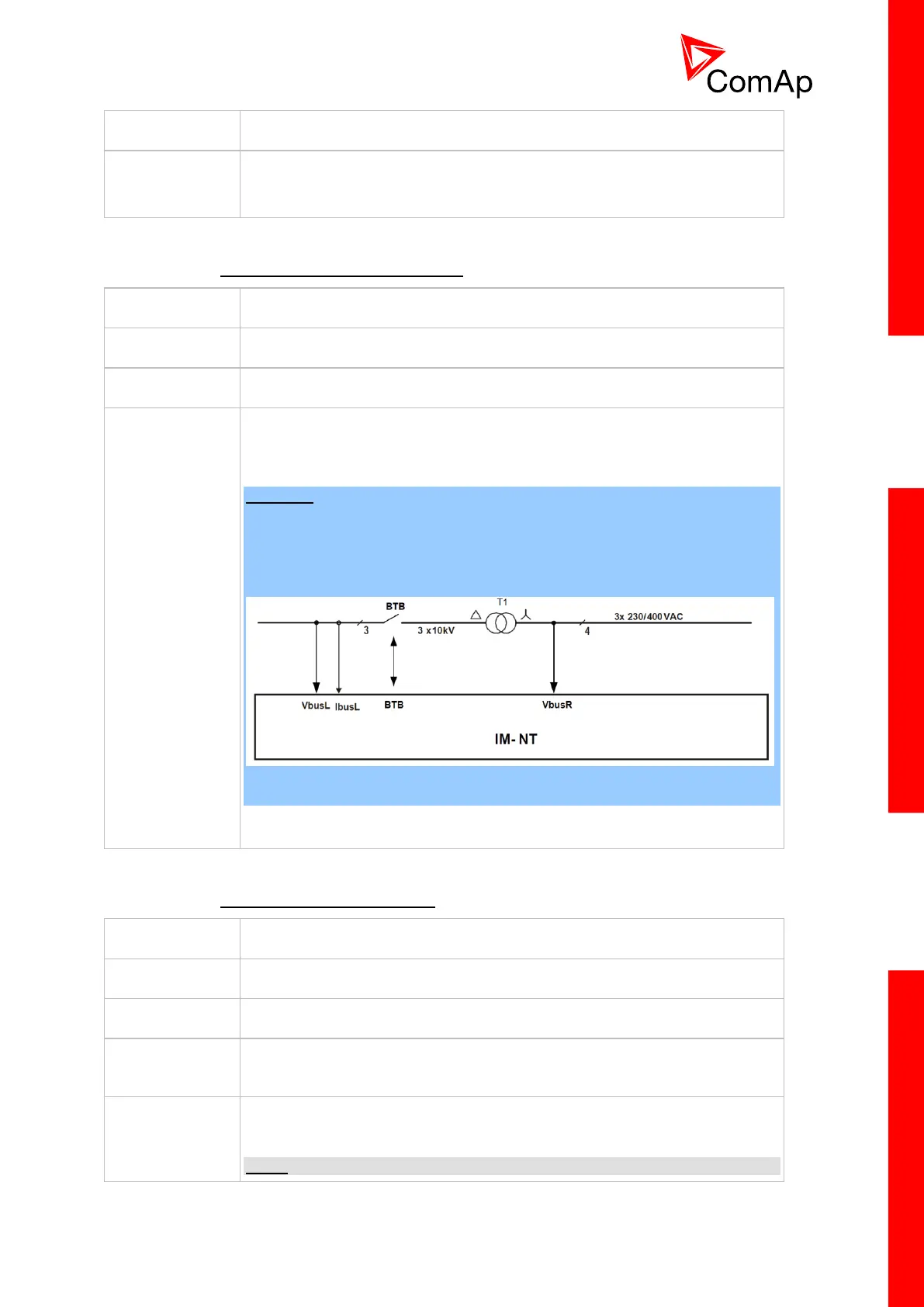

Bellow there is an example of the controller connection to a high voltage
system.
T1 shifts phase +30° and no shift is on T2.
BtoM AngleReq = +30° needs to be set for this example.
12.2.9.3 Setpoint: Phase window
This setpoint adjusts maximum absolute value of difference between actual
phase angle between the busR and busL voltages for synchronizing.
NOTE:
