To disable issuing the breaker close command (i.e. for test purpose) adjust
this setpoint to 0. Synchronizing will continue until timeout occurs or the
breaker is closed externally.
NOTE:

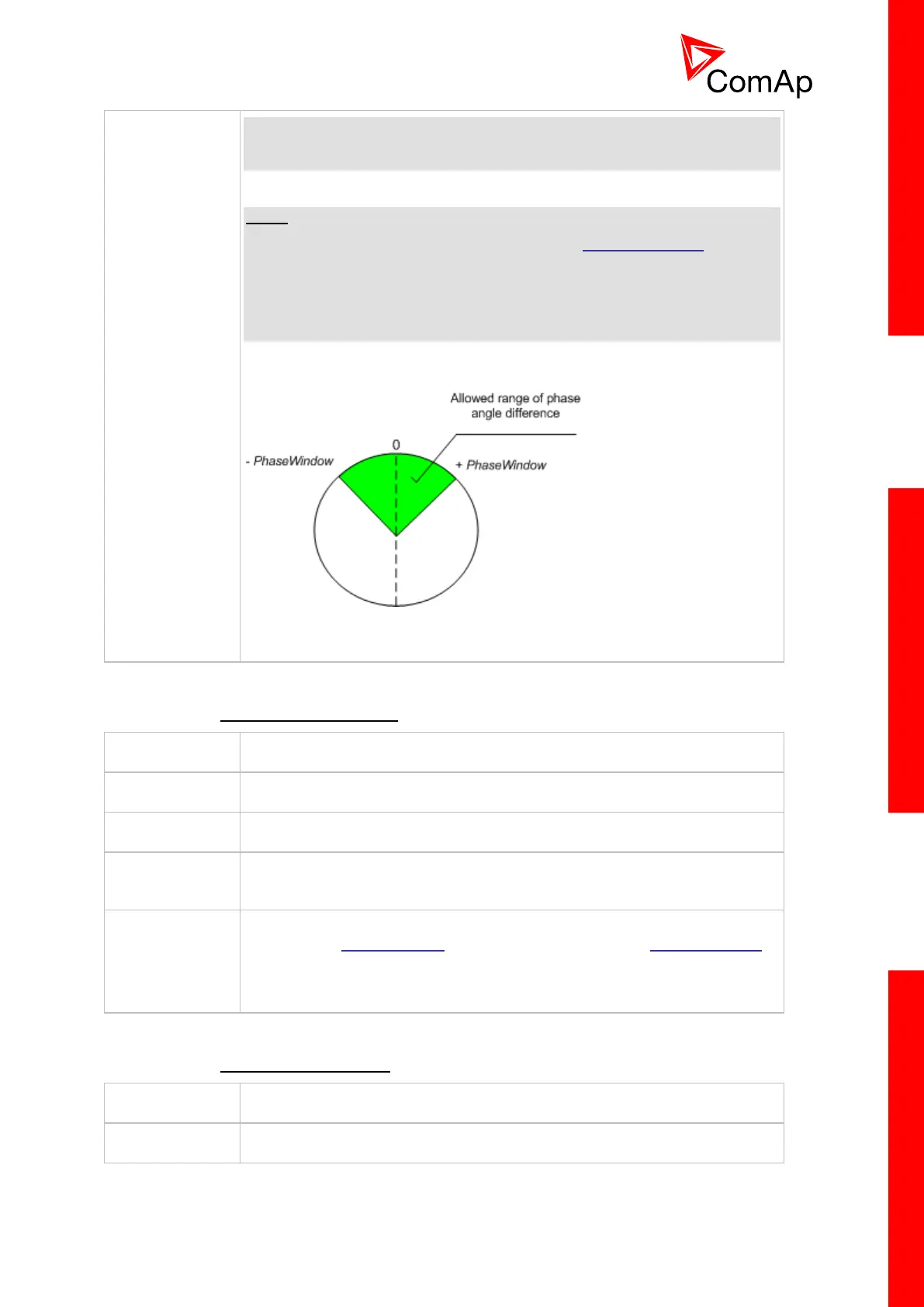

The setpoint works as a window surrounding the BRtoBLAngleReq setpoint.
E.g. for BRtoBLAngleReq = +30° and Phase window = 5°, the breaker
closure is allowed for phases +25° to +35°.
If you want to lock out the breaker closing during synchronizing control loop
test, set Phase window = 0. This allows the control loop setpoints to be tuned
while actual breaker closing is blocked.
12.2.9.4 Setpoint: Dwell time
This setpoint adjusts the period of time that the phase angle difference must
stay within +/-Phase Window and voltage difference within Voltage Window
before the respective breaker, which is actually beeing synchronized, is
closed.
12.2.9.5 Setpoint: Freq gain
