LoadRequest2
Switch to Load Request 2
LoadRegDisable
Set 1-PI Regulator output to constant P Bias
Regulator is working when this LBI is not
configured.
LBO Function:
LoadSwitch Load Comparator output
LAO
LoadLimitAOut Analog output of Load Limitation PI control loop.
Functions 1 and 2 setpoints
Load limit Load Input
ECU: RPM, Load,
CU: AI1, AI2, AI3
AIO: AI1, AI2, AI3, AI4
Load Bias
0 - 10000 [ - ]
LoadRequest 1
± 10000 [ - ]
LoadRequest 2
± 10000 [ - ]
LoadReq Ramp
1 - 10000 [ - ]
LoadUpLimit
0 - 10000 [ - ]
LoadDnLimit
0 - 10000 [ - ]
Load Gain
0,0 ± 200,0%
Load Integral
0,0% - 100,0%
Load CMP Input
ECU:RPM, Load
CU: AI1, AI2, AI3
AIO: AI1, AI2, AI3, AI4
Load CMP Off
± 10000 [ - ]
Load CMP On
± 10000 [ - ]
Functions 1 and 2 examples
• Engine Load limitation with On/Off output
• Speed switch
• General comparator
• Engine Load limitation with analog output
• General PI control loop

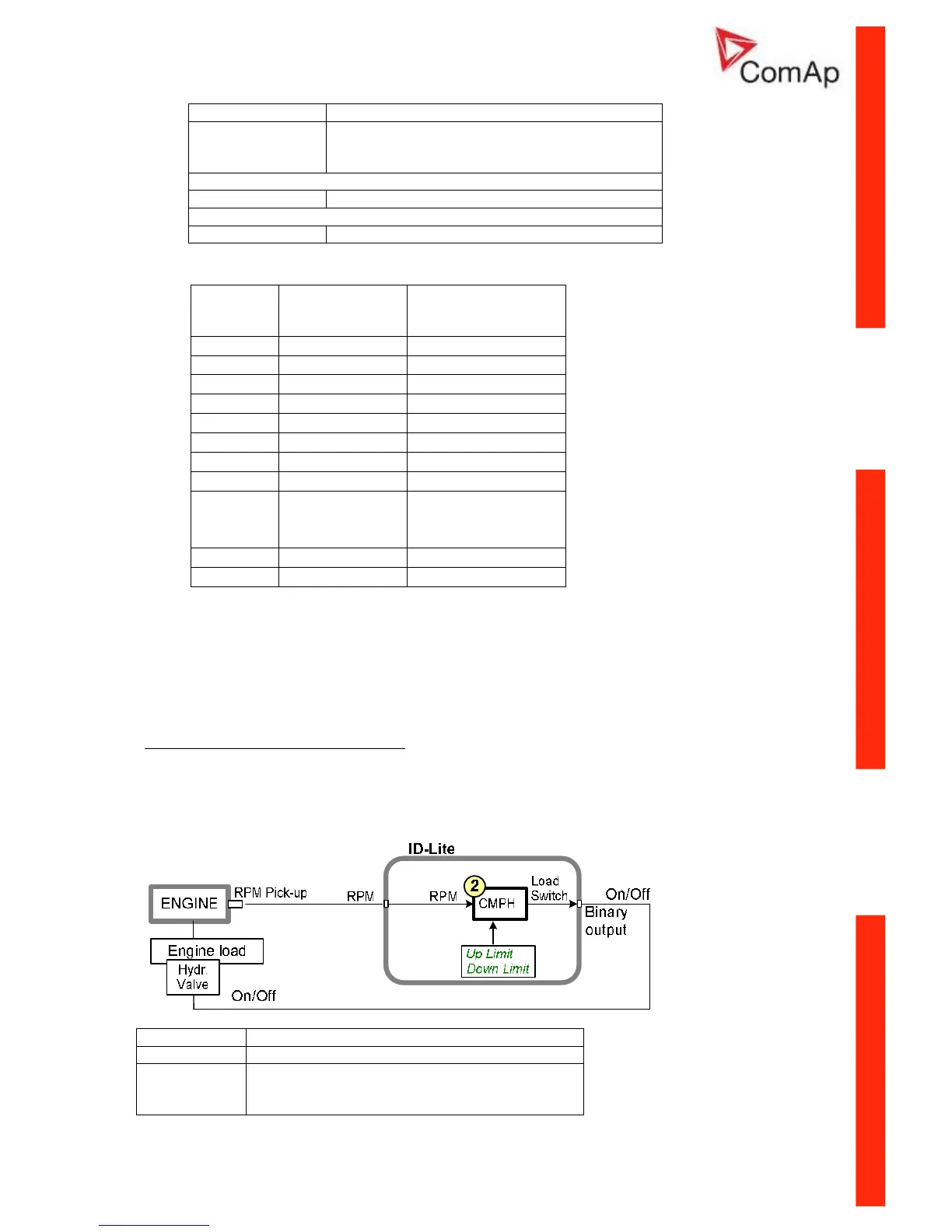

Engine load limitation with On/Off output
Purpose: Protect the engine against overload by reducing (switching On/Off) the load.
Description: CMPH (Comparator with Hysteresis) detect the RPM decrease below the Down limit,
activates the Binary output Load switch that reduces (slow down feeder) the load. There are expected
corresponding droop characteristics on the engine.
Input RPM from pickup (or ECU)
Binary output Load Switch
Setpoints
Load limit: Load CMP Input = RPM
Load CMP On = e.g. 2000
Load CMP Off = e.g. 2200
