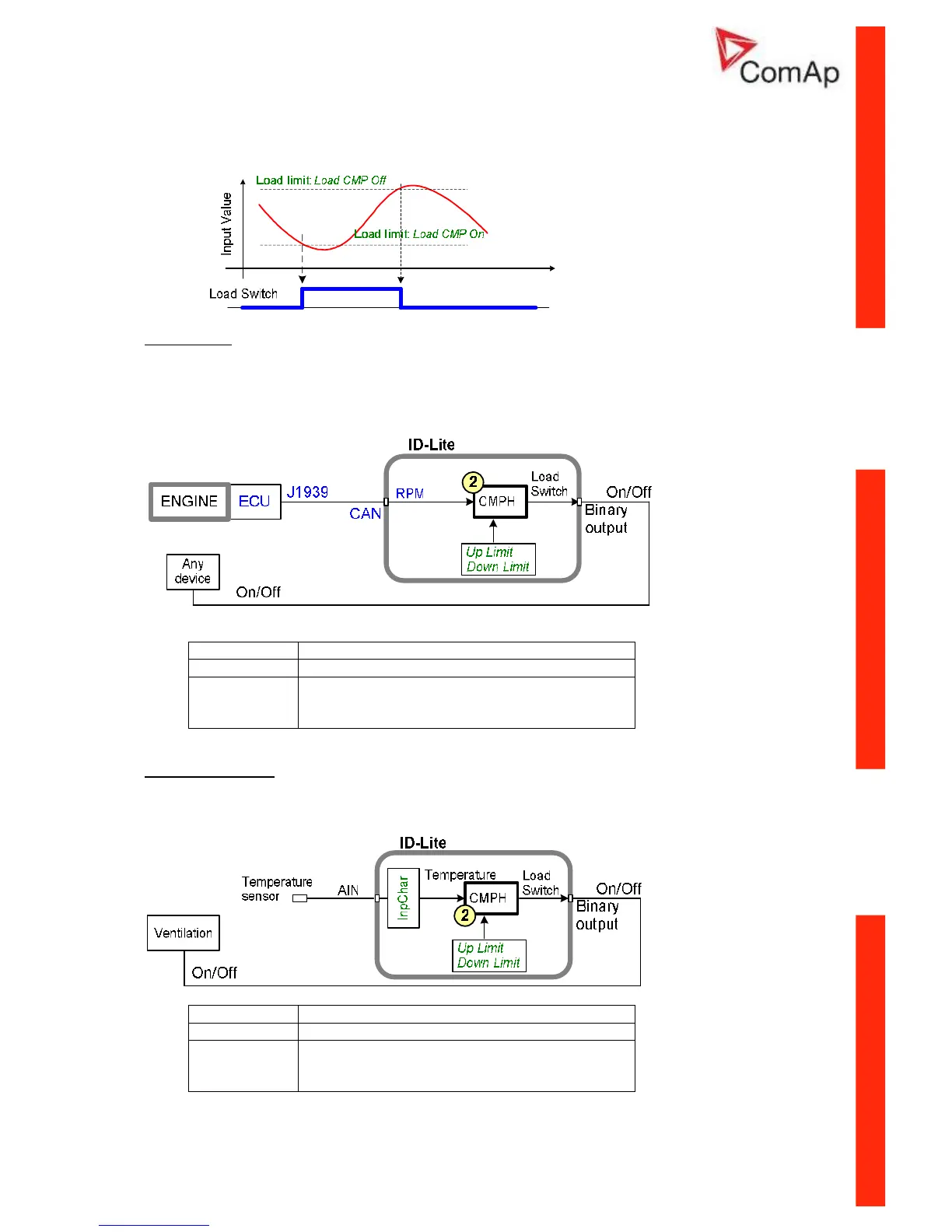

Load comparator function
Speed switch
Purpose: Switch on/off some device depends on RPM level.
Description: Depends on setpoint settings the CMPH (Comparator with Hysteresis)
activates/deactivates the Binary output Load switch that switch off some device when RPM is below
adjusted limit.
Input Analog input
Binary output Load Switch
Setpoints
Load limit: Load CMP Input = Actual Load
Load CMP On = 2000
Load CMP Off = 2200
General comparator
Purpose: Switch on/off some device depends on analog value – e.g. temperature.
Description: The function activates/deactivates some device based e.g. on temperature.
Input Analog input
Binary output Load Switch
Setpoints
Load limit: Load CMP Input = AI1
Load CMP On = 90
Load CMP Off = 80
