ID–Lite-2.0 User guide, ©ComAp – January 2011 23
ID-Lite-2.0 User guide.pdf

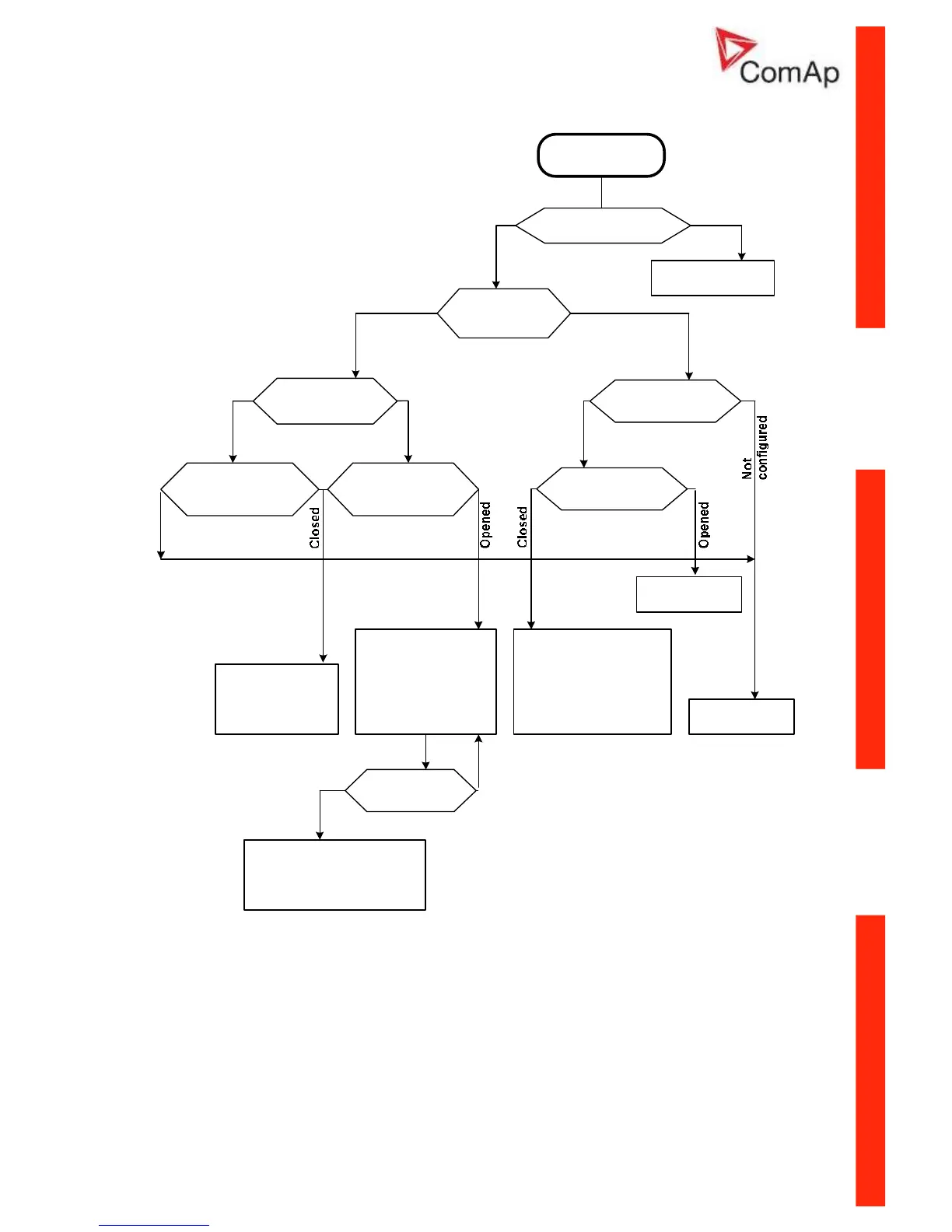

Speed request chart
SpeedRequest =
AI SpeedRequest
AI SpeedRequest
LBI SpeedSel1 and
LBI SpeedSel2 and
LBI SpeedSel3
SpeedRequest =
ECU SpeedAdj
SpeedRequest =
stay on the last value
or
value is changed by
LBI SpeedUp/Down
SpeedRequest =
BI SpeedSel1 or
BI SpeedSel2 or
BI SpeedSel3
Configured
and Closed
Configured
and Valid
MAN mode
LBI SpeedSel1
LBI SpeedSel2
LBI SpeedSel3
Not
configured
Configured
at least one
Engine params:
RetToSpeedAdj =
ENABLED DISABLED
Configured
LBI SpeedUp and
LBI SpeedDown
SpeedRequest starts at
ECU SpeedAdj
and go Up/Down by
BI Speed Ramp within
MinSpeedLim -
MaxSpeedLim
SpeedRequest =
constant
LBI SpeedUp and
LBI SpeedDown
LBI SpeedSel1 and
LBI SpeedSel2 and
LBI SpeedSel3
Opened
SpeedRequest =
go Up/Down by
BI Speed Ramp within
MinSpeedLim MaxSpeedLim
LBI SpeedUp and
LBI SpeedDown
Not Configured or
Sensor fail
