ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
567
Related FW 1.9.0 Related applications AMF, MRS
Comm object 1380
Description
This output is closed, when Binary Input 7 is active and open when Binary Input 7 is inactive. When Binary
Input 7 is used for BIN protection function then this output is closed when BIN protection alarm is in
Alarmlist.
Note: When LBI 7 is used like protection, then state of this LBO is connected with this protection e.g.
when LBI is inactive but alarm of protection is not confirm in alarmlist, LBO is still active.

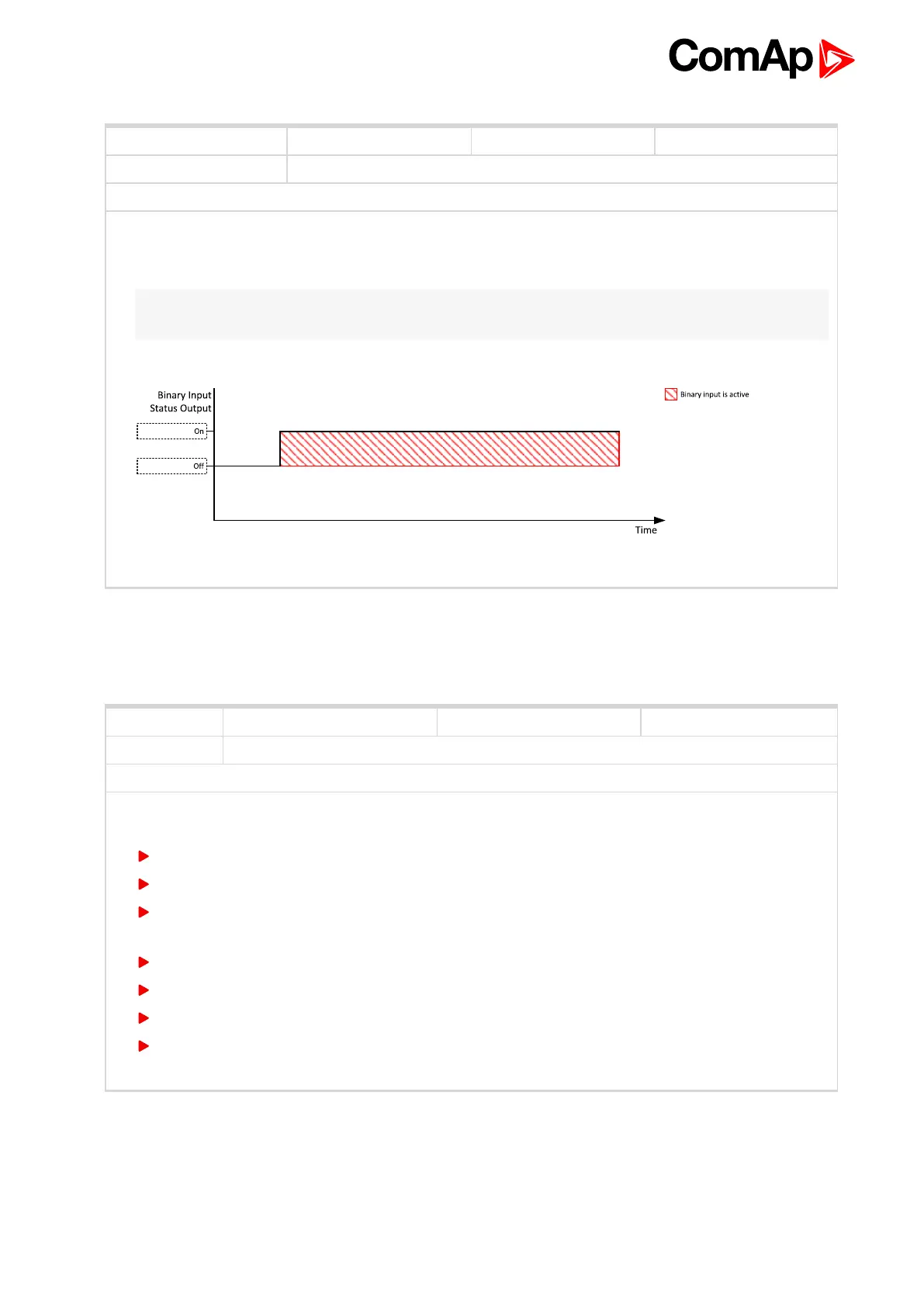

Image 8.159 Binary Input 7 Status
BIN 7 Status
6 back to Logical binary outputs alphabetically
LBO: C
Related FW 1.9.0 Related applications AMF, MRS
Comm object 2091
Description
Logical binary output for choke valve control. Output CHOKE is activated every time when logical binary
output STARTER (PAGE 597) is activated. Output is deactivated when one of these conditions is fulfilled:
Choke Time is elapsed
Generator voltage is higher than Choke Voltage
Logical binary input Choke Inhibit is activated
Or when some of these situations during start occurs:
Any second level alarm
Emergency stop
Stop command
Cranking pause
Choke
6 back to Logical binary outputs alphabetically
