Comau Robotics Product Instruction
54
ENVIRONMENTS

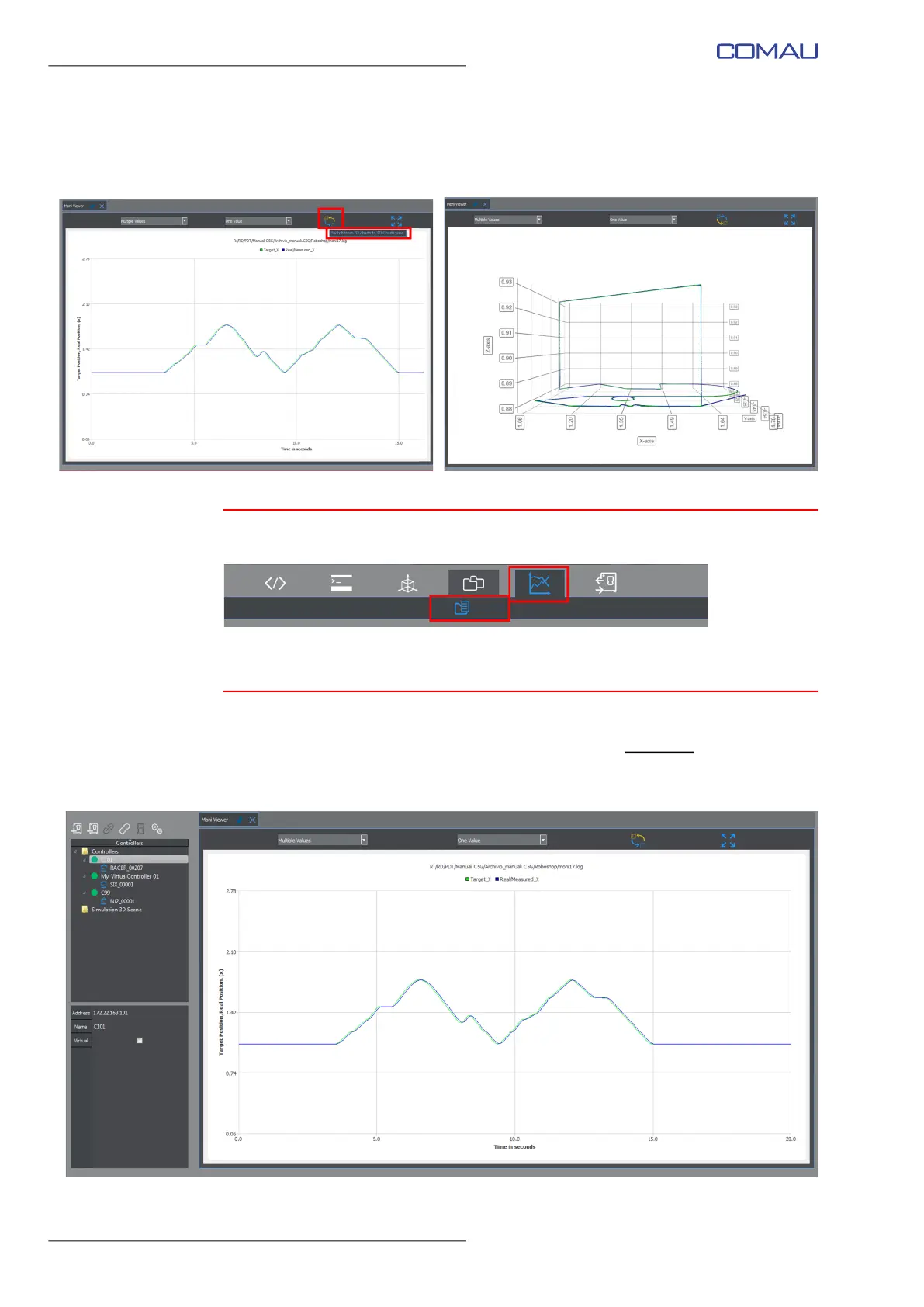

The diagrams representing Cartesian movements can also be displayed in 3D form,
using the Switch from 2D charts to 3D Charts view toggle key (figure below on the
left).
4.8.2 Contextual keys
– Open File.
4.8.2.1 Open File
This contextual key allows opening a moni.log file existing on the PC.
Follow the path until the folder containing the wished file: select it. Then click Open key
to confirm and display the required diagram.
