Li-ion Battery
LED Indicator
Modem Jumper
Power
USB
Integrated Module(Master)
Integrated Module(Slave)
Integrated Module(Slave)
Combiner
Combiner
Modem

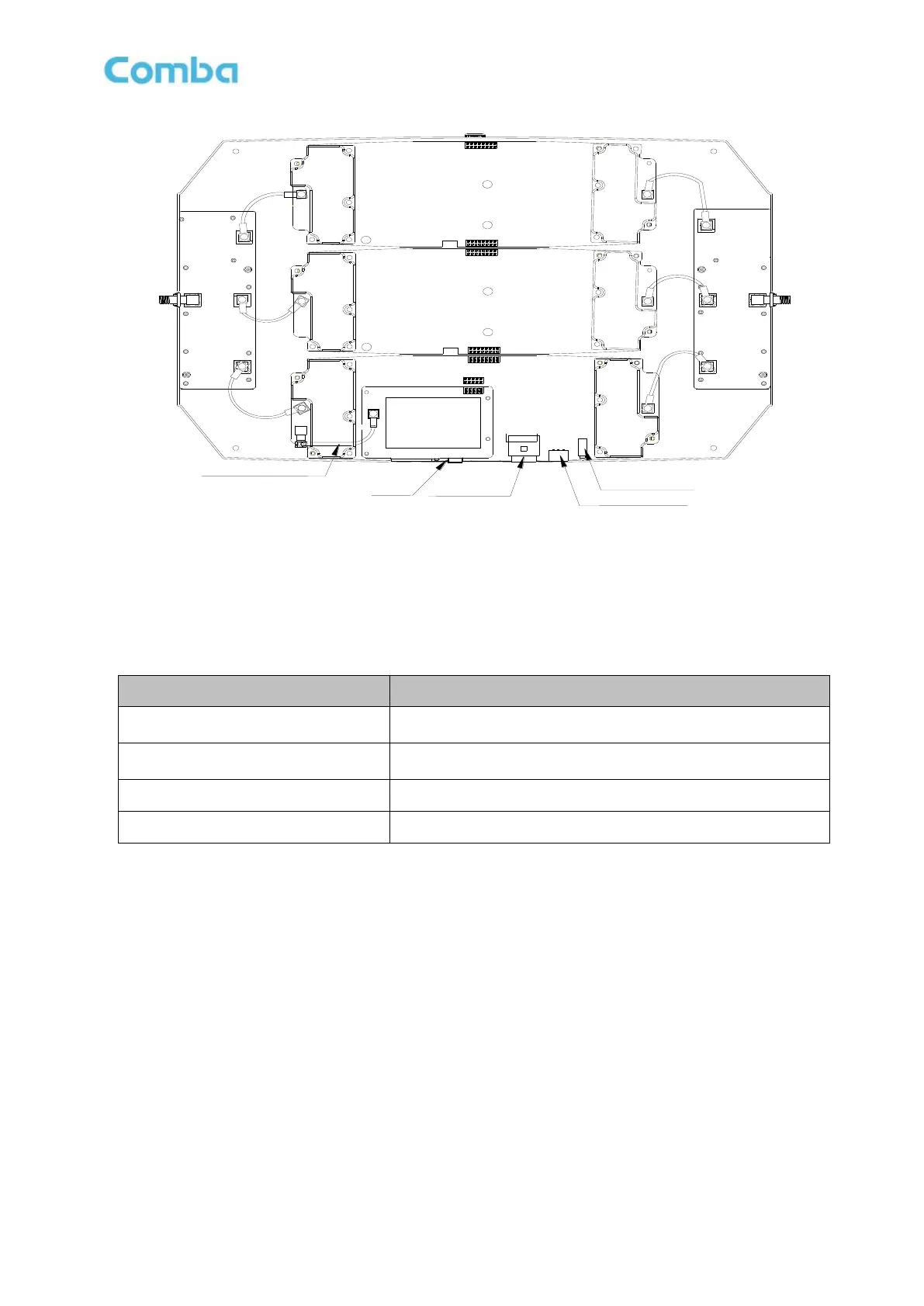

Figure 7: Triple Band mPICO Internal Layout
2.3 EQUIPMENT CONSTITUTION
mPICO consists of the modules described as below:
Table 1: Equipment Constitution
Name
Description
Power Adapter Module
Convert AC power to +12V DC input to provide power for the
Integrated Module
Integrated Module
It is single band module. Consists of RF and digital process
part, Duplexer, UL/DL PA and monitoring part.
Modem
Realize the remote monitoring and controlling
Li-ion Battery (Optional)
Power supply for monitor module in case of power failure
