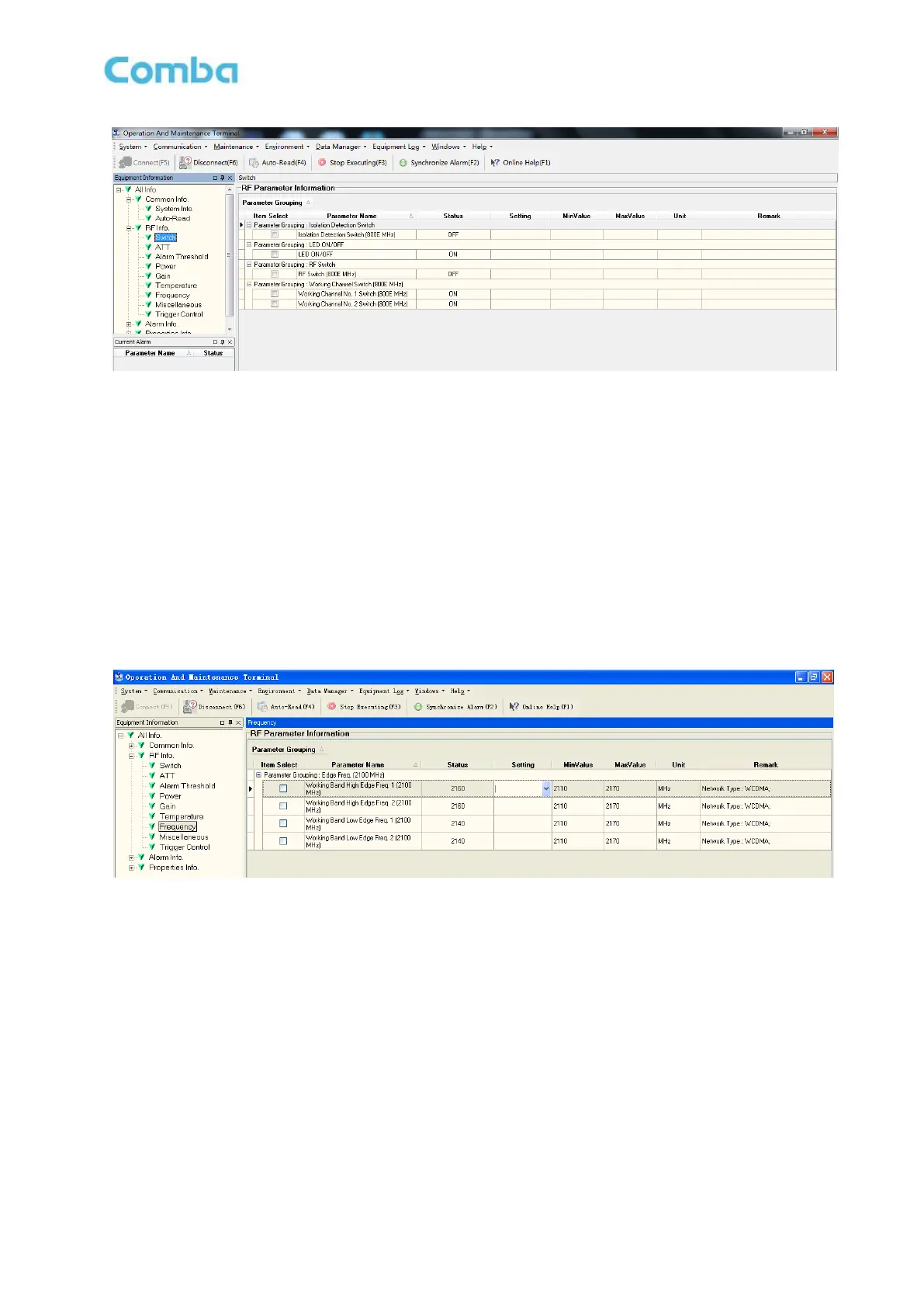

Figure 63: Switch
Config:
Select the required state in setting columns of RF information window for RF switch, then press [Enter] or
[Config] button to complete the configuration operation.
Note: If you turn on the ‘Isolation Detection Switch’, please read the result on ‘Miscellaneous’; LED switch
is used for controlling LED indicator.
5.9.2 FREQUENCY
Frequency is bandwidth setting. The value in [Max Value] column is the upper limit of the range, while the
value in [Min Value] column is the lower limit of the range.
Figure 64: Frequency
Config:
Enter the required value in setting columns and click [Config] button to finish the configuration operation.
 Insert the desired frequency (within the setting range) into the [Setting] column directly
 Right click the [Setting] column, the [Frequency Setting] dialogue window seen as below will pop-up,
insert the desired frequency.
