USER MANUAL FOR mPICO SERIES
ENU Status : 1-0-1
Copyright - refer to title page
Page 59

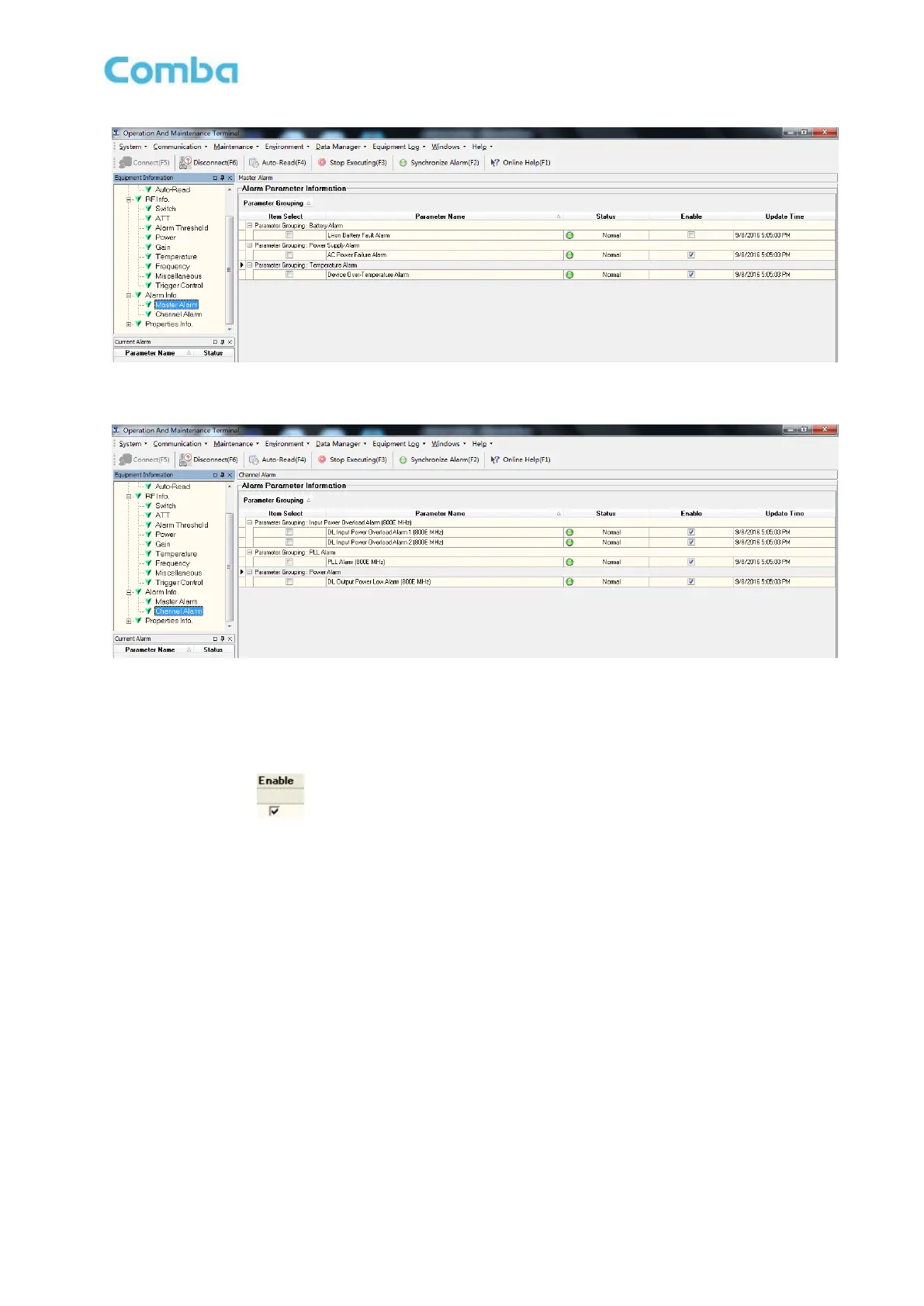

Figure 73: Master Alarm
Figure 74: Channel Alarm
Config:
Tick the check box of [Item select] and [Enable] of the desired parameters and click [config] button to
finish configuration operation.
Notice: [Enable] box is to enable the alarm monitoring for system. Only if users enable the alarm
by ticking the [Enable] box, the alarms can be monitored by the OMC.
On the mPICO, if any alarm is generated and this alarm is also enabled in [Enable] box, LED H2 turns
RED; while it is OFF when normal working. On the OMC window, [Alarm Status] indicator keeps GREEN
if no alarm and turns RED if an alarm is generated.
5.10 PROPERTIES INFO.
5.10.1 SITE ID
Site ID is to be configured after local commission has been completed, which includes Site ID, and Site
Sub ID.
