3.3 INSTALLATION PROCEDURES
3.3.1 GOODS INWARDS INSPECTION
 Verify the number of packages received against the packing list.
 Check all packages for external damage; report any external damage to the shipping courier. If there
is damage, a shipping agent should be present before unpacking and inspecting the contents
because damage caused during transit is the responsibility of the agent.
 Open and check each package against the packing list. If any items are missing, please contact
Comba.
 Do not remove items from antistatic packing until ready for installation. If damage is discovered at
the time of installation, contact the shipping agent.
3.3.2 TOOLS
See Appendix A for a full list of the recommended tools required for installation and maintenance.
3.3.3 WALL MOUNTING
Drill two holes on the wall for Screws (ST4×30). Hang up the Single Band mPICO.
Device
Screw (ST4x30)
Plastic Plug
Wall
79

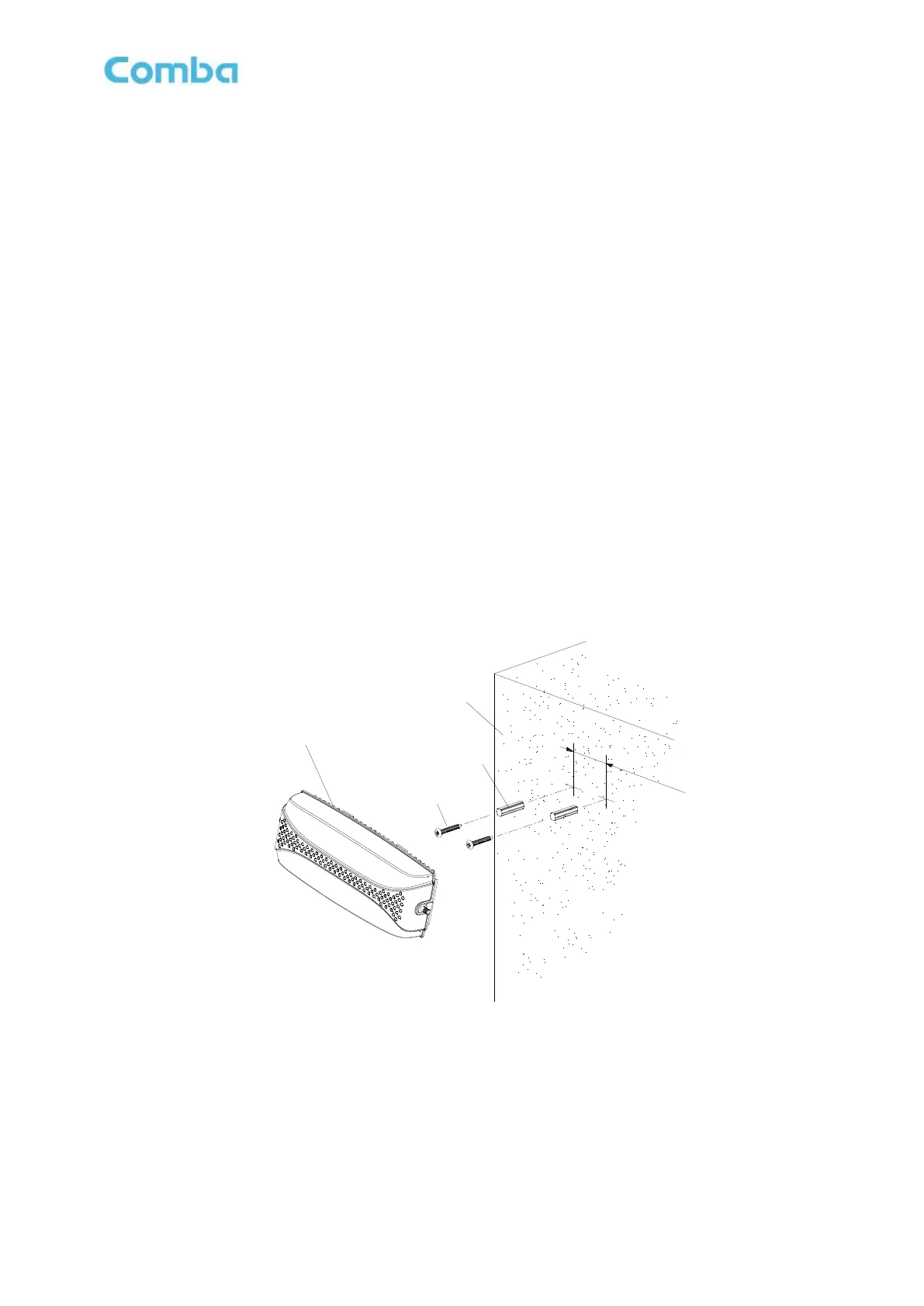

Figure 8: Single Band mPICO Wall Mounting
Note: for multi-band mPICO, after hanging up, please remember to tighten the fixed bolt manually to
avoid the shaken of device.
