3.4 EQUIPMENT CONNECTORS
3.4.1 CONNECTORS
Li-ion Battery
LED Indicator
Power
USB
DT
MT
Single Band
mPICO
Multi-Band
mPICO
USB
+12V
MON
DC
ALM
RUN
PWR
MON
DC
ALM
RUN
PWR
+12V
USB
SIM
SIM

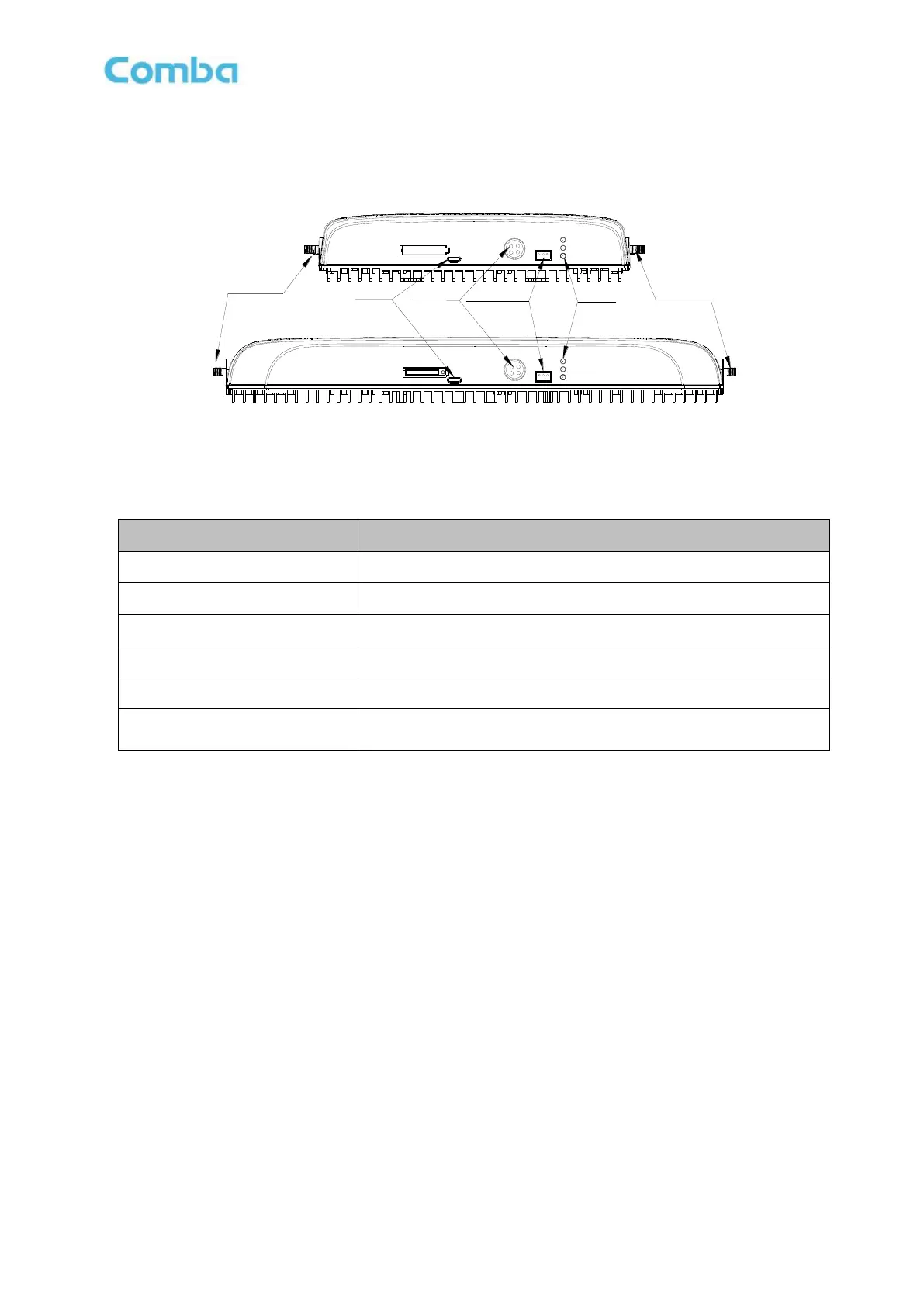

Figure 11: Device Panel Interface Diagram
The connection interfaces are shown below:
Table 5: mPICO Connectors
Connector
Description
DT
SMA connector, for external donor antenna
MT
SMA connector, for external service antenna
+12V
DC Input
USB
Connect the device via micro-USB
SIM
SIM card holder
MON DC
To connect external Li-ion battery and provide power for monitor
module in case of power failure
