5.3 RF PARAMETER
It is recommended to configure the following RF parameters for the first installation.

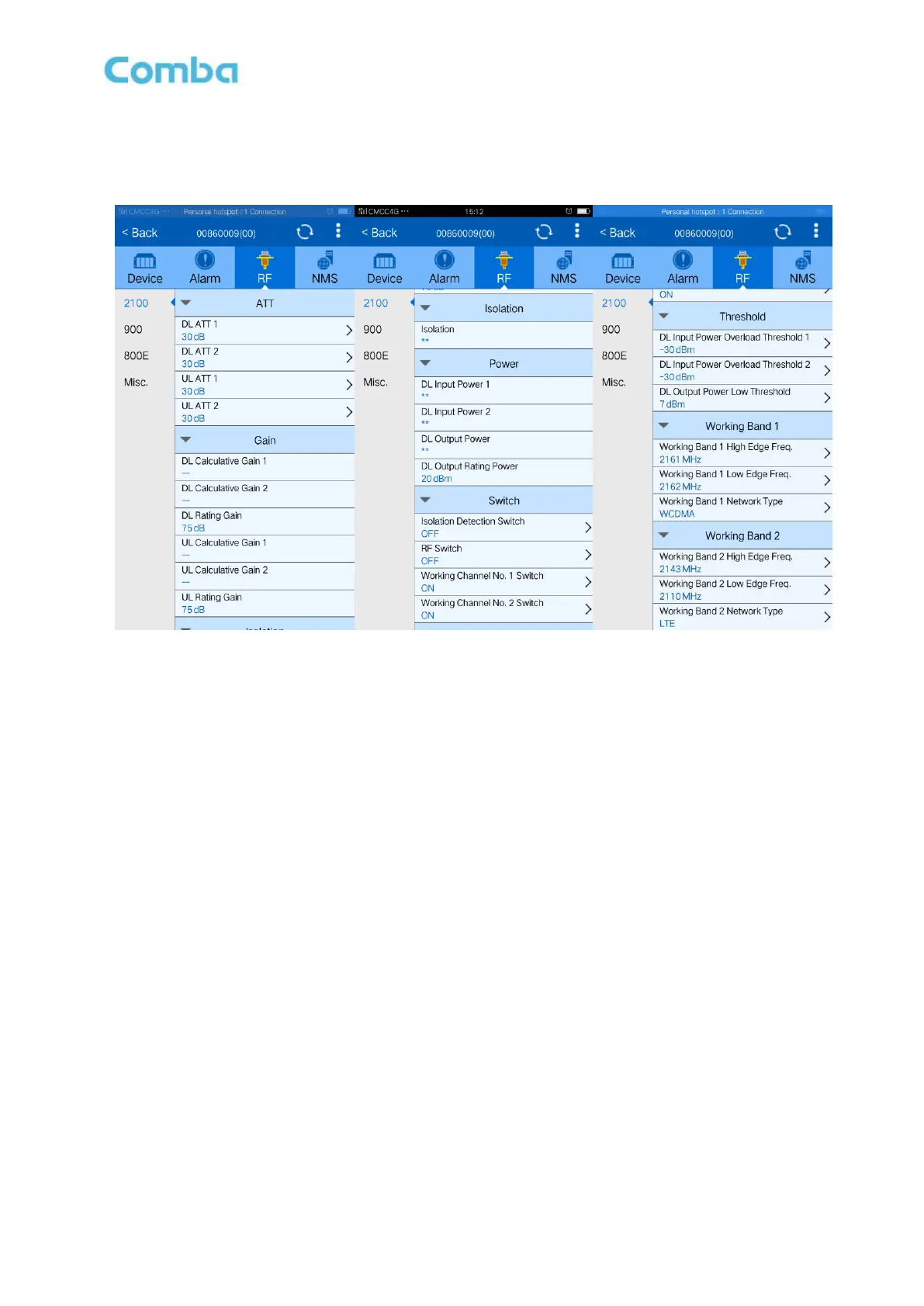

Figure 26: RF Parameters
5.3.1 SWITCH
RF Switch is to enable/disable power for internal modules. When user checks and sets non-RF
parameters, such as checking physical antenna connection, switching off will disable equipment power
temporarily to protect PA in operation.
Working Channel Switch is to enable/disable working band1 and working band 2
Isolation Detection Switch is to enable to detect system isolation status.
