USER MANUAL FOR mPICO SERIES
ENU Status : 1-0-1
Copyright - refer to title page
Page 19
Device
Screw(ST4x30)
Plastic Plug
Wall
165.5
40
Mounting Rack
Fixed Bolt

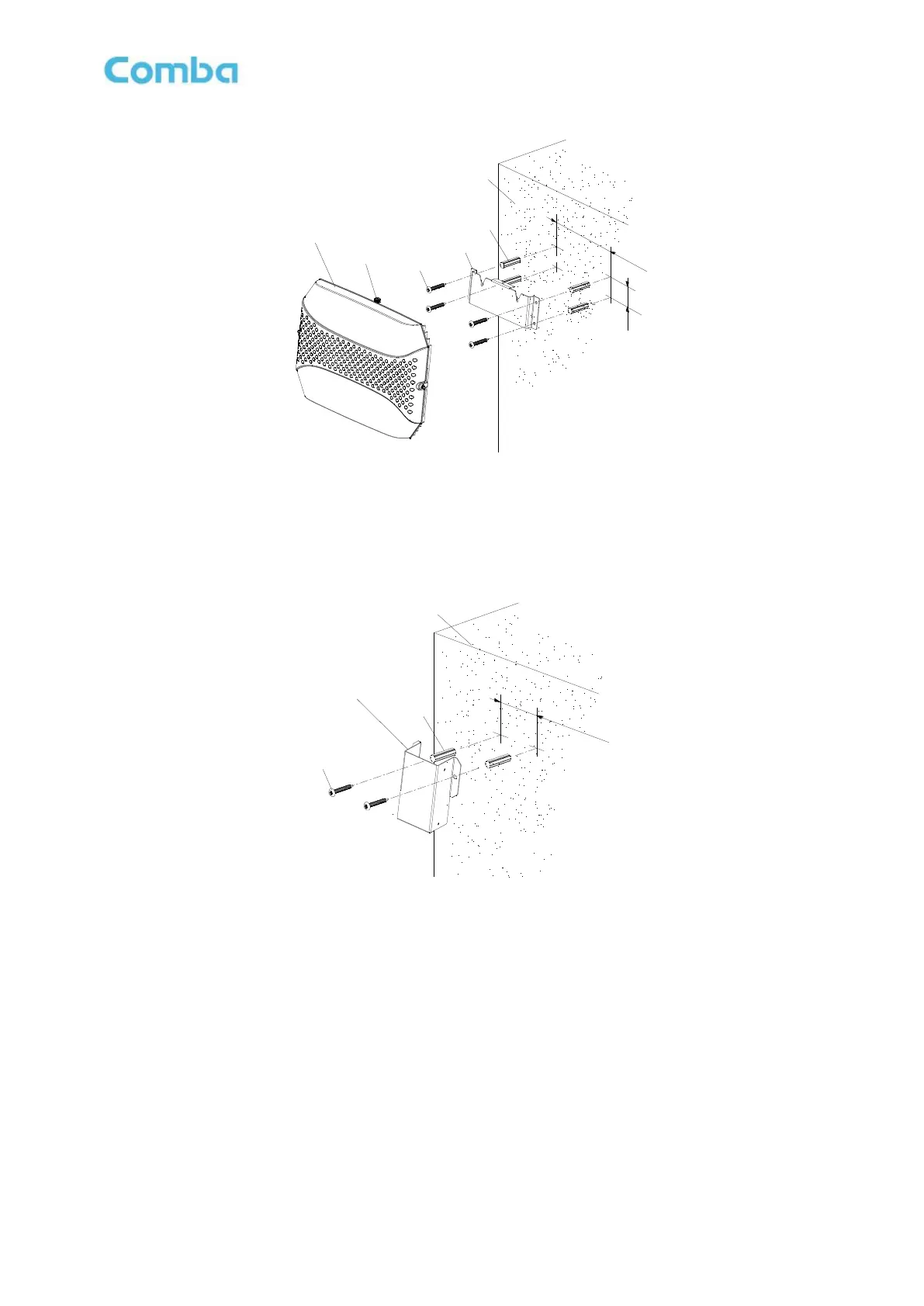

Figure 9：Multi-Band mPICO Wall Mounting
Adapter mounting rack likes below, the distance between the fixed holes on the rack is 71mm. After
installation, the adapter can put in the adapter mounting rack. Also the Li-ion battery can be fixed on the
profile of rack.
Adapter Mounting Rack
Screw(ST4x30)
Plastic Plug
Wall
71
Figure 10：mPICO Power Adapter Wall Mounting
