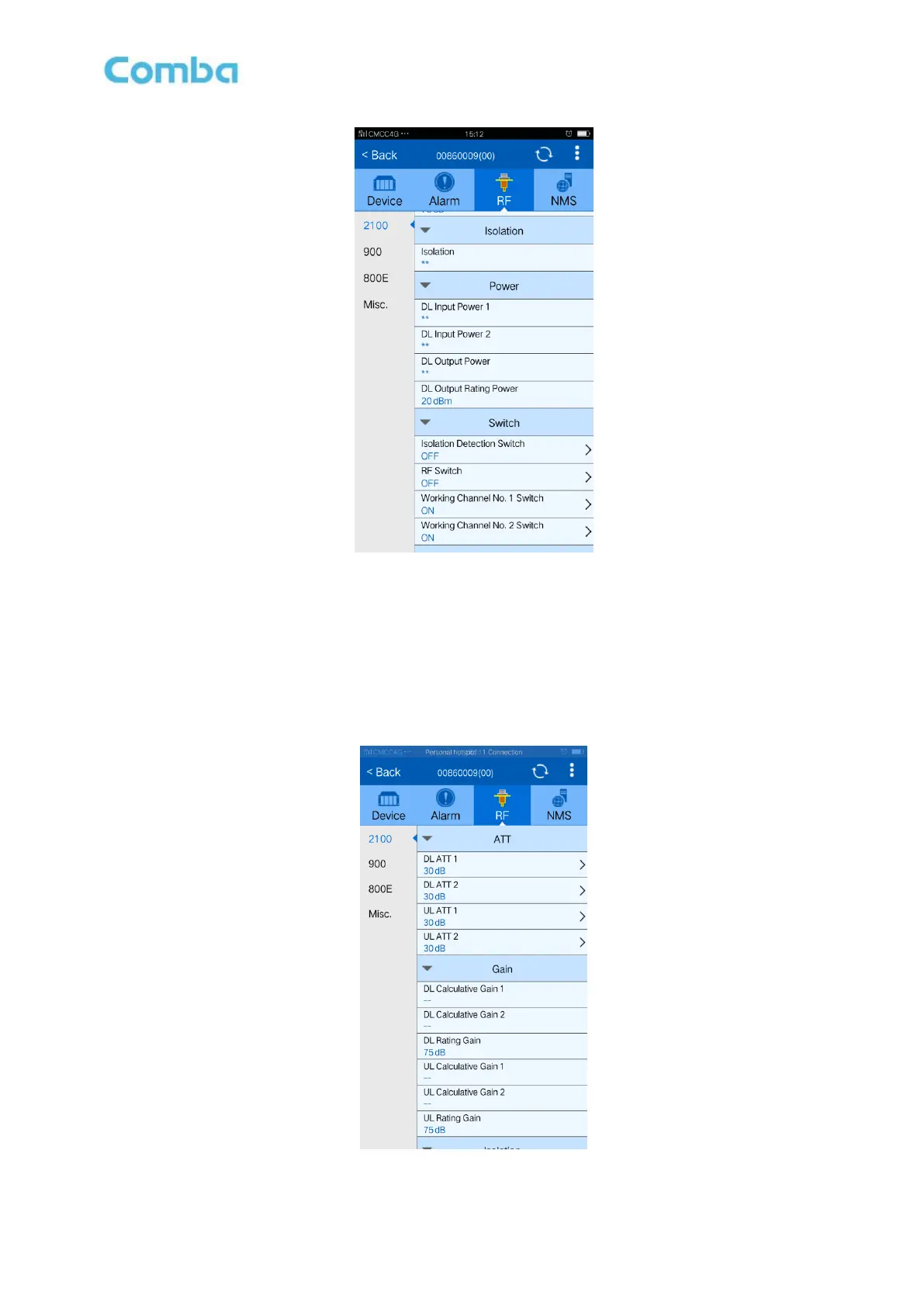

Figure 30：Isolation
5.3.4 ATT
ATT adjustment includes UL/DL ATT adjustment. The purpose of adjusting the ATT is to adjust system
gain.
DL/UL ATT setting range: 0~30dB.
Figure 31: ATT
