Hour Meters
Select a Setting
Hour Meters
Hours Run
OK
Hours On-load
Hrs to next Service

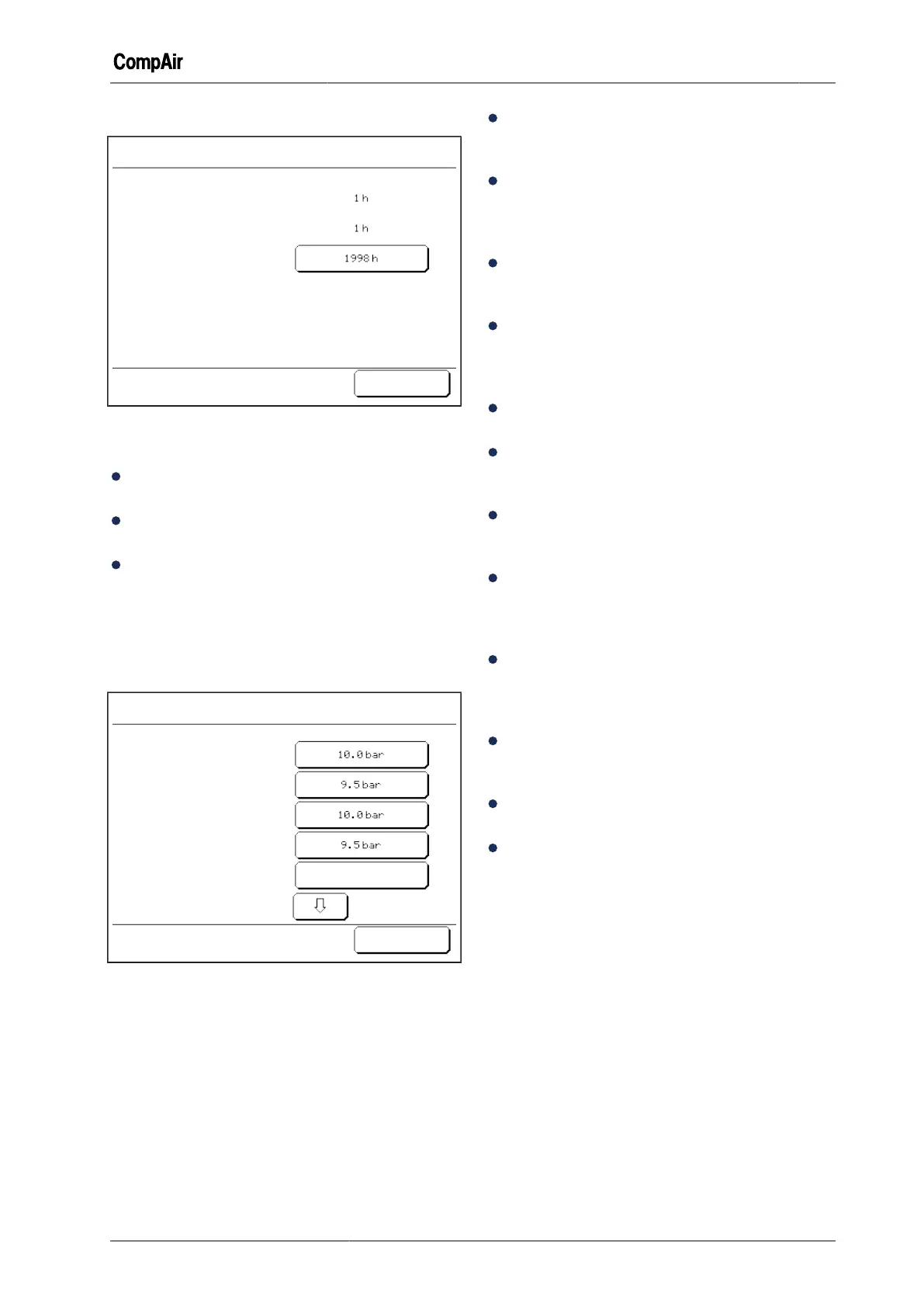

Fig. 4-12: Sub-menu "Hour Meters"
The menu "Hour Meters" indicates:
"Hours Run"; display of the drive motor running
hours.
"Hours On-load", display of compressor on-
load running hours.
"Hours to next Service"; time until the next ser-
vice (service interval).
The time until the next service can be set by
the service personnel. See chapter "Advanced
operation / Setting the service interval".
Control
Select a Setting
p1 Cut-Out Point
p1 Target Pressure
p2 Cut-Out Point
p2 Target Pressure
Operating Mode Automatic Operation
OK
Control
Fig. 4-13: Sub-menu "Control" (example RS)
The "Control" menu is used to configure the com-
pressor operating behaviour. The following sub-
menus are available.
The display can be scrolled using the arrow keys
to permit display of other points.
"p1 Cut-Out Point"; to configure the pressure
band. See chapter "Configuration / Set pres-
sure bands".
"p1 Cut-In Point" (FS) / "p1 Target
Pressure" (RS); to configure the pressure band.
See chapter "Configuration / Set pressure
bands".
"p2 Cut-Out Point"; to configure the second
pressure band. See chapter "Configuration /
Set pressure bands".
"p2 Cut-In Point" (FS) / "p2 Target
Pressure" (RS); to configure the second pres-
sure band. See chapter "Configuration / Set
pressure bands".
"Operating mode"; to set the operating mode.
See chapter "Operating / Operating modes".
"Enable Remote Start"; to enable the remote
start option. See chapter "Configuration / Set
Remote Start and Stop".
"Timer start enabled"; to enable timer control
operation. See chapter "Configuration / Timer
Control Operation".
"p2 Timer Enabled"; to enable timer control
operation for the second pressure band. See
chapter "Configuration / Timer Control Opera-
tion".
"Automatic re-start"; to enable automatic
restart after a power failure. See chapter "Con-
figuration / Setting Automatic Restart After a
Power Failure".
"- Max. Power Loss Time"; to configure the be-
haviour upon automatic restart after a power
failure.
"- Restart Delay"; to configure the behaviour
upon automatic restart after a power failure.
"Dryer Pre-Run Time"; to configure the com-
pressor for operation with an external dryer.
See chapter "Configuration / Setting the Dryer
Pre-Run Time".
To Next Page
