CompAir DELCOS XL Series User Manual

4 Menus
18 / 80 GB October 2013
Timer Control
Timer Control
Select a Setting
Date and Time
Timer Start/Stop
Timer Pressure Band p2
Display / Adjust
Display / Adjust
OK
This page is to set the Timer Channel
only. The Timer for
Compressor Start/Stop or activating the
second Pressure Band must be enabled
within Setpoints Menu.

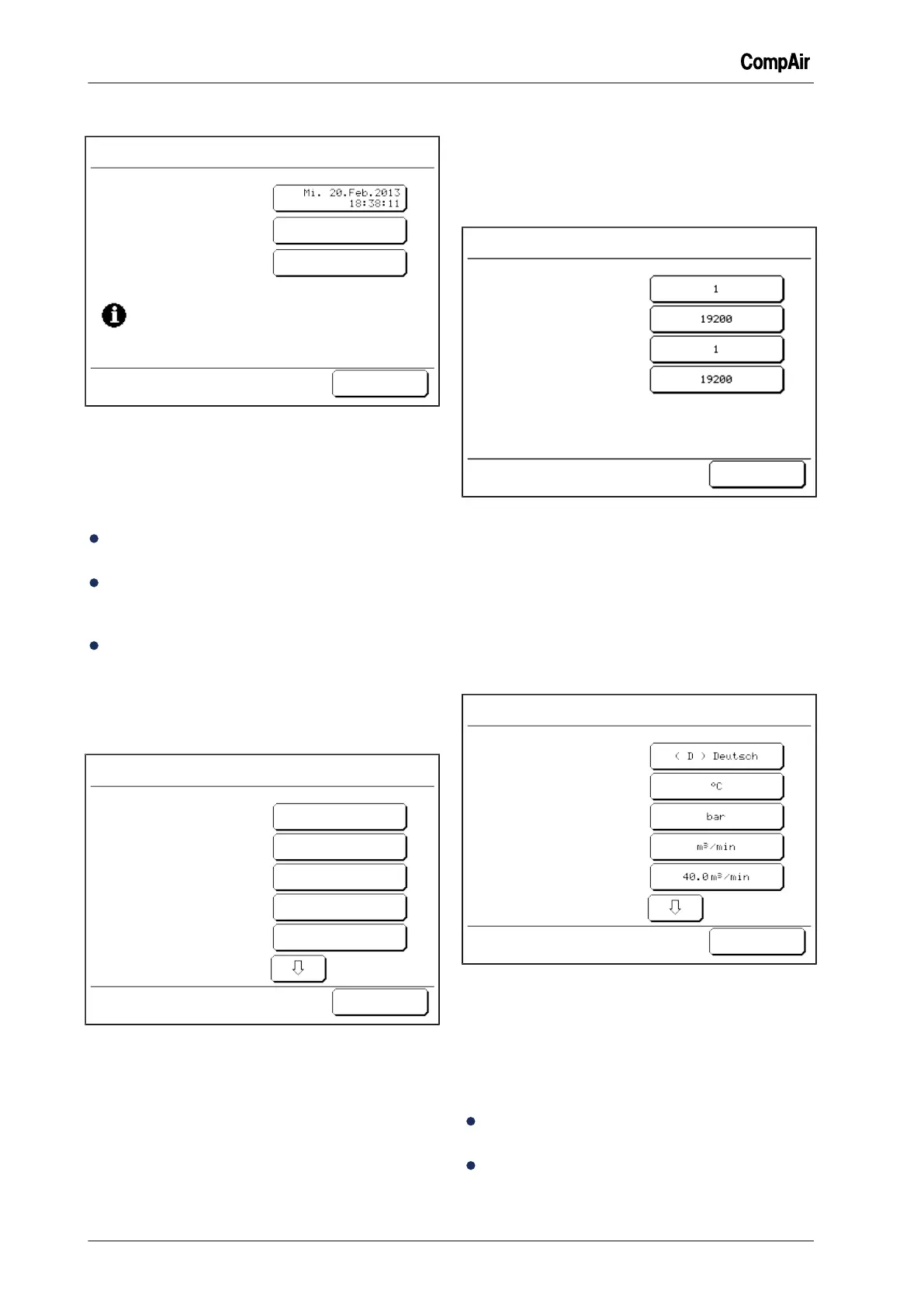

Fig. 4-14: Sub-menu "Timer Control"
In the menu "Timer Control" settings can be made
for timer control operation; in addition date and
time can be set.
The following sub-menus are available.
"Date and Time"; to set the date and time. See
chapter "Configuration / Set Date and Time".
"Timer Start/Stop"; to configure timer control
operation. See chapter "Configuration / Timer
Control Operation".
"Timer Pressure Band p2"; to configure timer
control operation in the second pressure band.
See chapter "Configuration / Timer Control Op-
eration".
Programmable Inputs and Outputs
Input 1
Select a Setting
OK
Programmable Inputs and Outputs
Free
Input 2
Free
Input 3
Free
Input 4
Free
Input 5
Free
Fig. 4-15: Sub-menu "Programmable Inputs and Out-
puts"
Programmable inputs can be used to monitor con-
nected devices, or functions can be set up that in-
fluence compressor operation.
Programmable outputs can be used to forward
status messages from compressors, e.g. to a
higher level control room.
The menu "Programmable Inputs and Outputs" is
used to allocate inputs and outputs. See chapter
"Configuration / Programming Inputs and Outputs"
for details on configuring inputs and outputs.
Communication
RS485:1 Address
RS485:1 Baudrate
RS485:3 Address
RS485:3 Baudrate
Select a Setting
Communication
OK
Fig. 4-16: Sub-menu "Communication"
In the menu "Communication" you can specify the
communications settings for the RS485 port (des-
ignation: RS485:1). Optionally a further RS485 in-
terface (designation: RS485:3) is available.
To configure the interfaces, see chapter "Configu-
ration / Setup RS485 Communication".
Configuration
Language
Temperature Unit
Pressure Unit
Volume Flow Unit
Maximum Volume Flow
Select a Setting
Configuration
OK
Fig. 4-17: Sub-menu "Configuration"
In the menu "Configuration" the compressor data
can be set to the preferred measurement units.
The following sub-menus are available.
The display can be scrolled using the arrow keys
to permit display of other points.
"Language"; to set the display language. See
chapter "Configuration / Set language".
"Temperature Unit"; to set the temperature
unit. See chapter "Configuration / Setting Mea-
surement Units".
