CompAir DELCOS XL Series User Manual

5 Configuration
34 / 80 GB October 2013
Timer Start/Stop
Start/Stop Schedule
Off
OK
Off
Off
Off
Off
Off
Off
Mo.
Tu.
We.
Th.
Fr.
Sa.
Su.

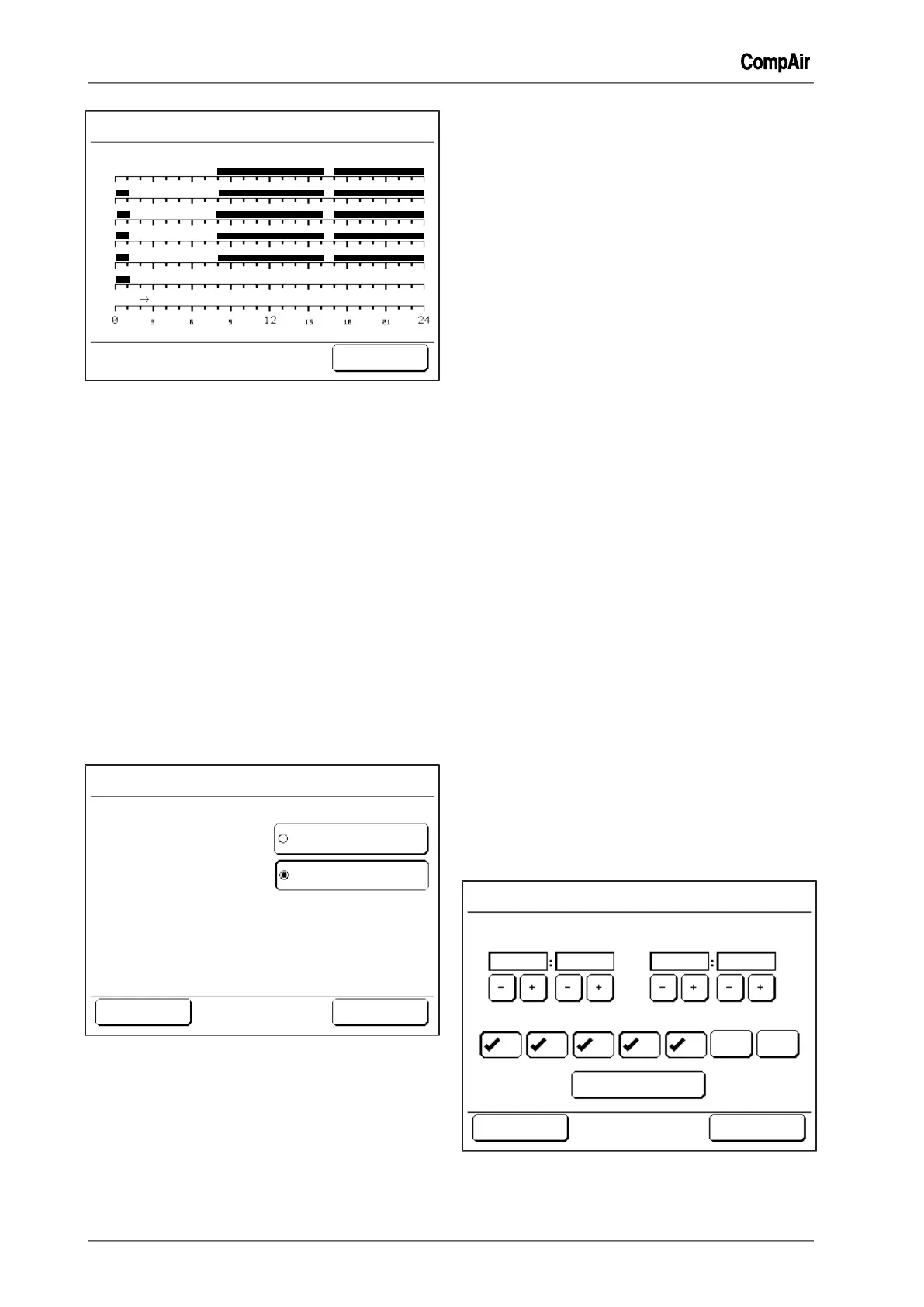

Fig. 5-29: Summary of the timer control channel settings
(condition after programming)
The summary screen "Start/Stop Schedule"
shows the hours of each day between 0:00 and
24:00 along the X-axis and the days of the week
along the Y-axis. The highlighted areas show the
timer channels which have been programmed
(time windows).
5.5.3.3 Activating timer control operation
1
Tap the <Settings> tab.
2
Tap the <Control...> button.
3
Tap the <arrow keys> until the button <Timer
Control Enabled> is visible.
4
Tap the button <Timer Control Enabled>.
–
The menu "Timer Control Enabled" ap-
pears.
Control
Timer Control Enabled
OK
On
Cancel
Off
Fig. 5-30: Menu "Timer Control Enabled"
5
Press button <On>.
The <Cancel> button can be used to cancel en-
abling of timer control operation. The previously
active setting is used.
6
Tap the <OK> button.
✓ Timer control operation is activated.
–
The menu "Home" indicates that "Timer
Control Enabled" is activated.
Tapping the button <Off> in the menu "Timer Con-
trol Enabled" causes timer control to be deacti-
vated again.
7 Press the start button < I >.
– The compressor is switched ON (placed in
operation).
– The compressor runs if it is in the time win-
dow.
5.5.3.4 Setting the timer control for operation
in pressure band p2
Time-controlled switching to the second pressure
band can be implemented via "Timer Pressure
Band p2".
Example
As an alternative to the example used above, re-
duced pressure is to be maintained, instead of
completely shutting down the compressor, be-
tween 16:10 (4.10 pm) and 16:50 (4.50 pm). The
p2 timer would be set up as follows:
Programming the second pressure band
1
Tap the <Settings> tab.
–
The menu "Settings" appears.
2
Tap the <Timer Control...> button.
–
The menu "Timer Control" appears.
3
Tap button <Timer Pressure Band p2>.
–
The menu "Timer Pressure Band p2" ap-
pears.
4
Tap button <Channel 1>.
– The input menu for setting start time, end
time and weekday appears.
Timer Pressure Band p2
Set Channel 1
Start
OK
Mo.
Tu.
We.
Th. Fr. Sa.
Su.
Delete Channel
Cancel
Stop
Day of the Week
16
10
16
50
Fig. 5-31: Input menu "Timer Pressure Band p2" for timer
control channel 1 (condition after programming)
