4-2 Compaq ProLiant ML370 Maintenance and Service Guide
Compaq ProLiant ML370 System Board Components
See Table 4-1 for the names of the Compaq ProLiant ML370 system board components.
1
2
3 4
15
8
9
5
6
11
12
13
14
19
21
18
22
20
16
7
10
17

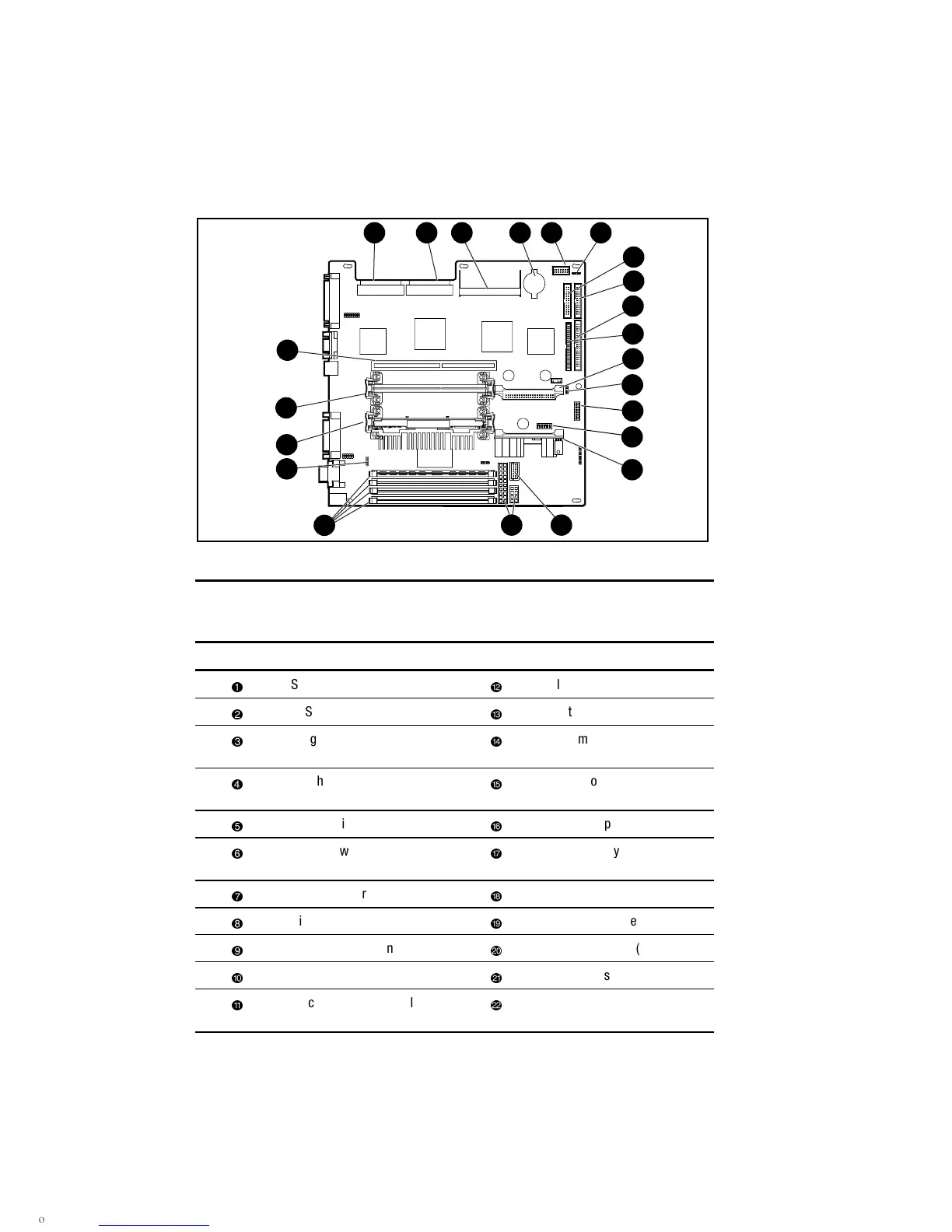

Figure 4-1. System board components
Table 4-1
System Board Components
Item Description Item Description

SCSI port 1

Slot fan header

SCSI port 2

System identification switch

Integrated Smart Array
Controller slot

System configuration switch

3V lithium battery

Processor Power Module
(PPM) slot 1 (populated)

Power switch connector

Power supply signal header

Virtual power switch
connector

Power supply connectors

IMD connector

DIMM sockets

Diskette drive connector

Processor fan header

CD-ROM drive connector

Processor slot 1 (populated)

Reserved

Processor slot 2

Processor Power Module
(PPM) slot 2

Riser board slot
