Removal and Replacement Procedures 2-33
Power Supply
WARNING: To reduce the risk of electric shock, do not disassemble the power supply or
attempt to repair it. It should be replaced only with the specified Compaq spare part.
To remove the power supply:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the large access panel. See “Large Access Panel” earlier in this chapter.
4. Slide the hot-plug drive cage out slightly by loosening the screws attaching it to the
chassis. See “Hot-Plug Drive Cage” earlier in this chapter.
5. Disconnect the power supply cable from the system board.

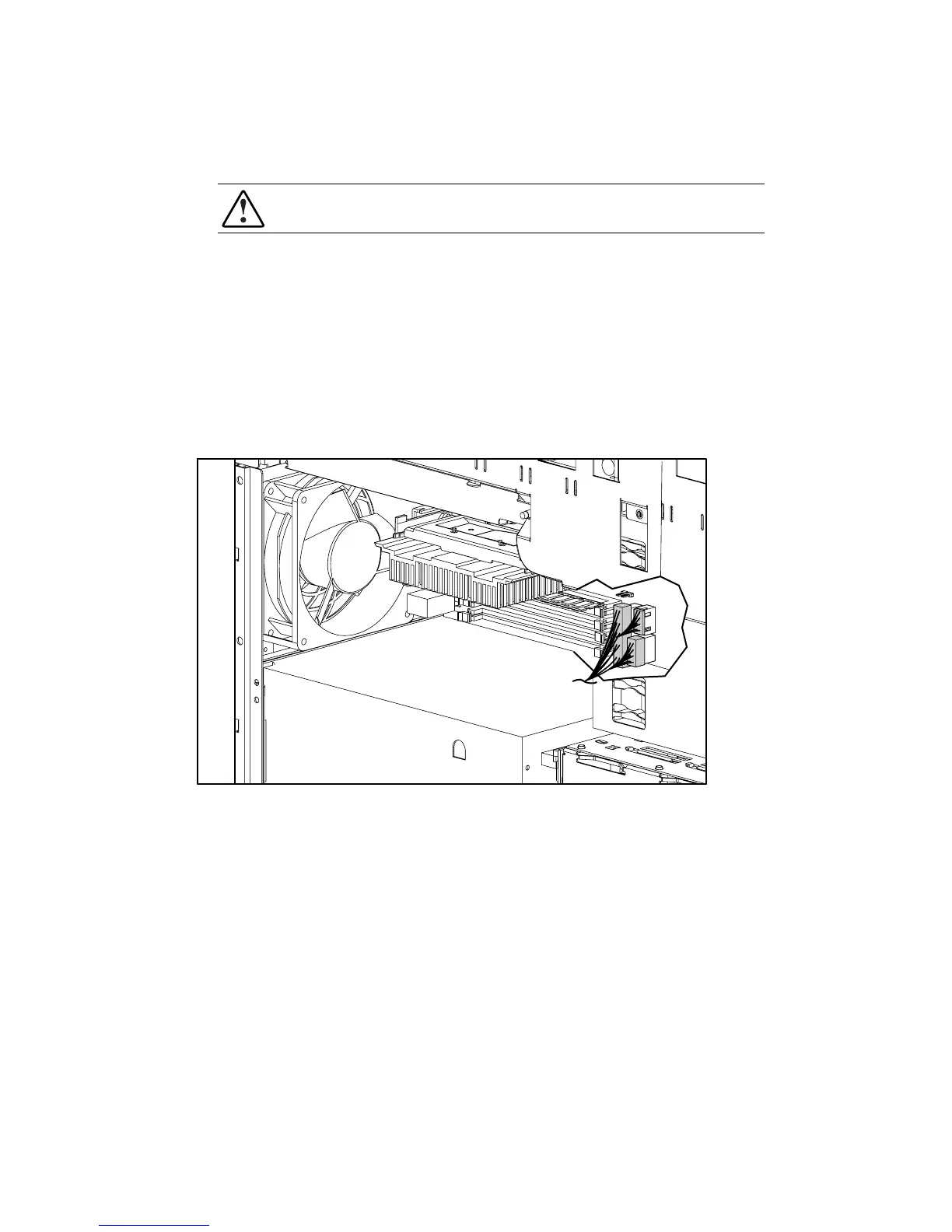

Figure 2-29. Disconnecting the power supply cable from the system board
