Removal and Replacement Procedures 2-17
Diskette Drive
To remove the diskette drive:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the large access panel. See “Large Access Panel” earlier in this chapter.
4. Disconnect all cables from the diskette drive.
5. Remove the two T-15 screws and washers securing the diskette drive to the chassis
.
6. Slide the diskette drive out the front of the chassis
.
2
1
1

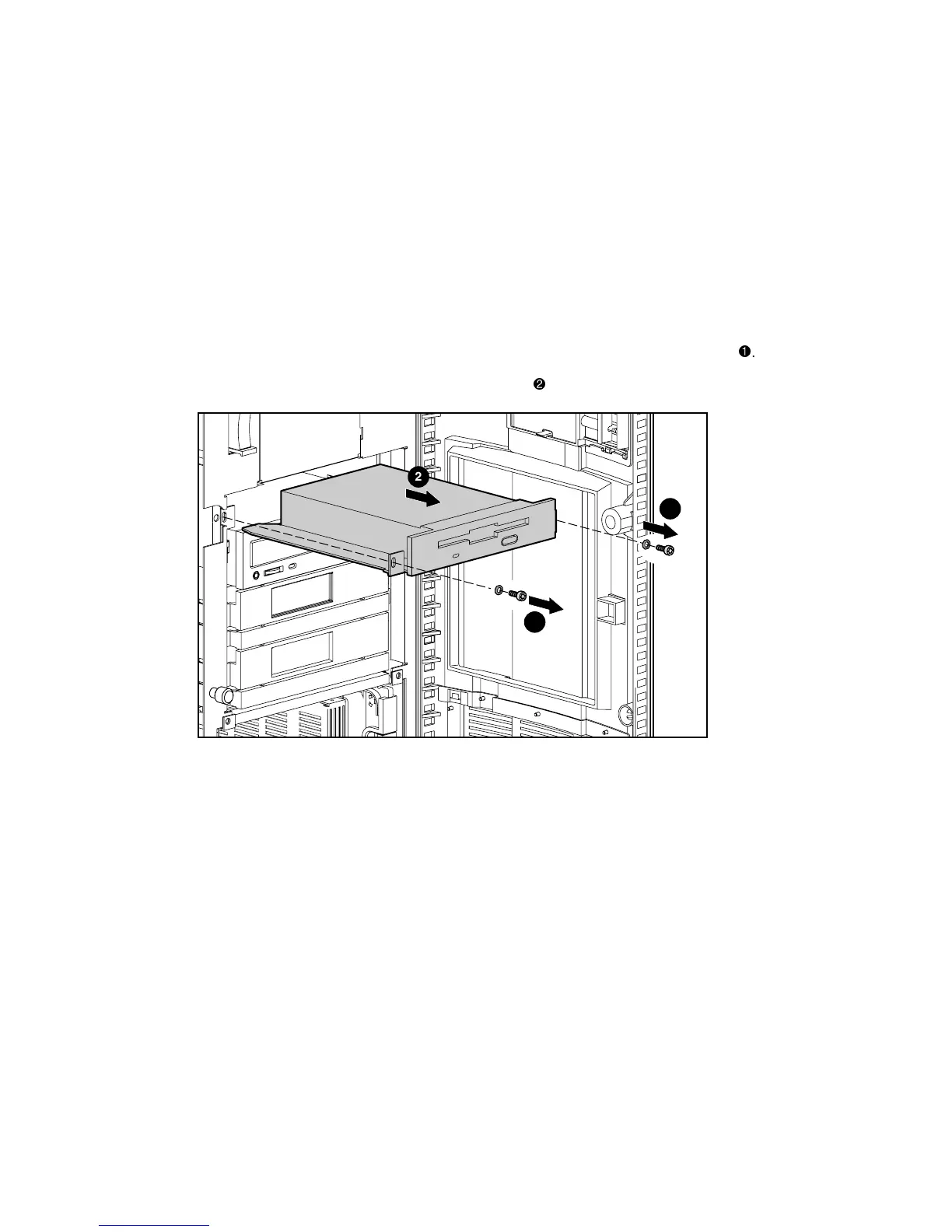

Figure 2-13. Removing the diskette drive
Reverse steps 1 through 6 to replace the diskette drive.
