I/O Fan
To remove the I/O fan:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the large and small access panels. See “Large Access Panel” and “Small Access
Panel” earlier in this chapter.
4. Loosen the single thumbscrew securing the I/O fan to the chassis ➊.
5. Tilt the top of the I/O fan forward ➋.
6. Disconnect the I/O fan cable from the system board ➌.
7. Lift the I/O fan away from the chassis.
1
2
3

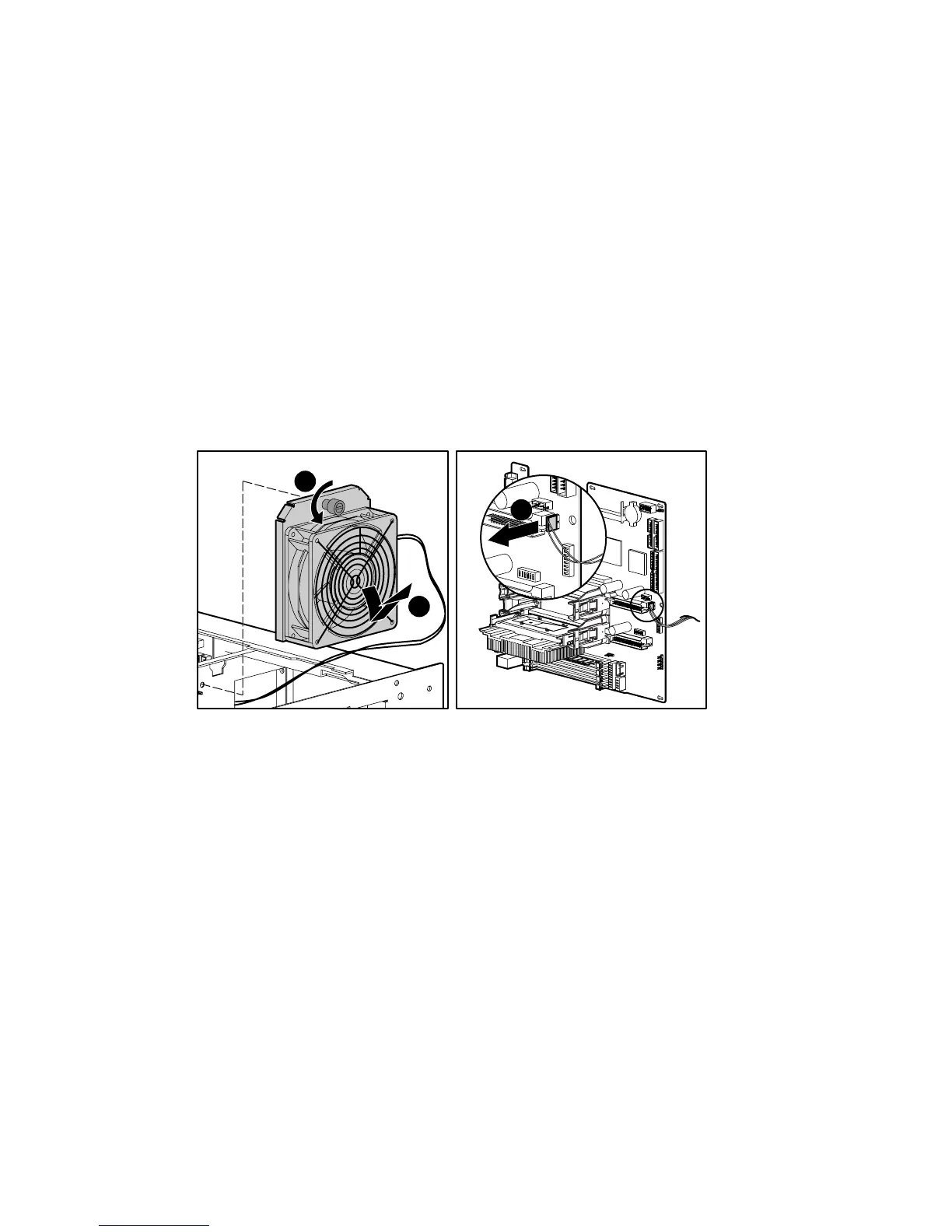

Figure 2-18. Removing the I/O fan
Reverse steps 1 through 7 to replace the I/O fan.
