Removal and Replacement Procedures 2-15
Hot-Plug Drive Cage
To remove the hot-plug drive cage:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the large access panel. See “Large Access Panel” earlier in this chapter.
4. Disconnect all cables from the hot-plug drive cage: one SCSI cable and two power
connectors.
5. Remove the four T-15 screws securing the hot-plug drive cage to the chassis
.
6. Slide the hot-plug drive cage out the front of the chassis
.
1
2
1
1
1

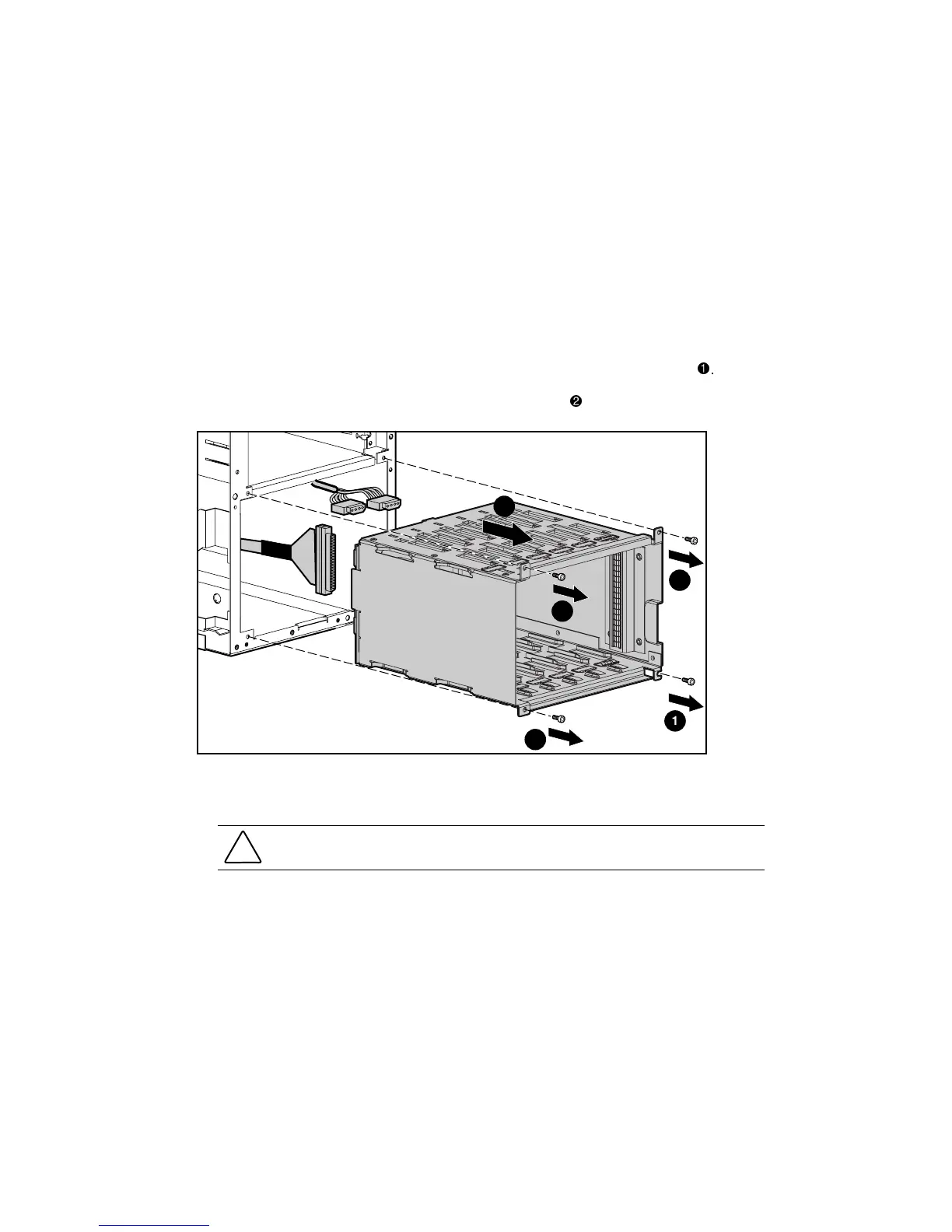

Figure 2-11. Removing the hot-plug drive cage
Reverse steps 1 through 6 to replace the hot-plug drive cage.
CAUTION: Make sure that all power and signal cables to the hot-plug drive cage have been
reseated properly.
