Compaq PROLIANT ML370 Maintenance And Service Guide

Connectors, Switches, and LED Indicators 4-3
Rear Panel Components
See Table 4-2 for the names of the Compaq ProLiant ML370 rear panel components.
1
2
3
4
5
6
7
8
9
10
11

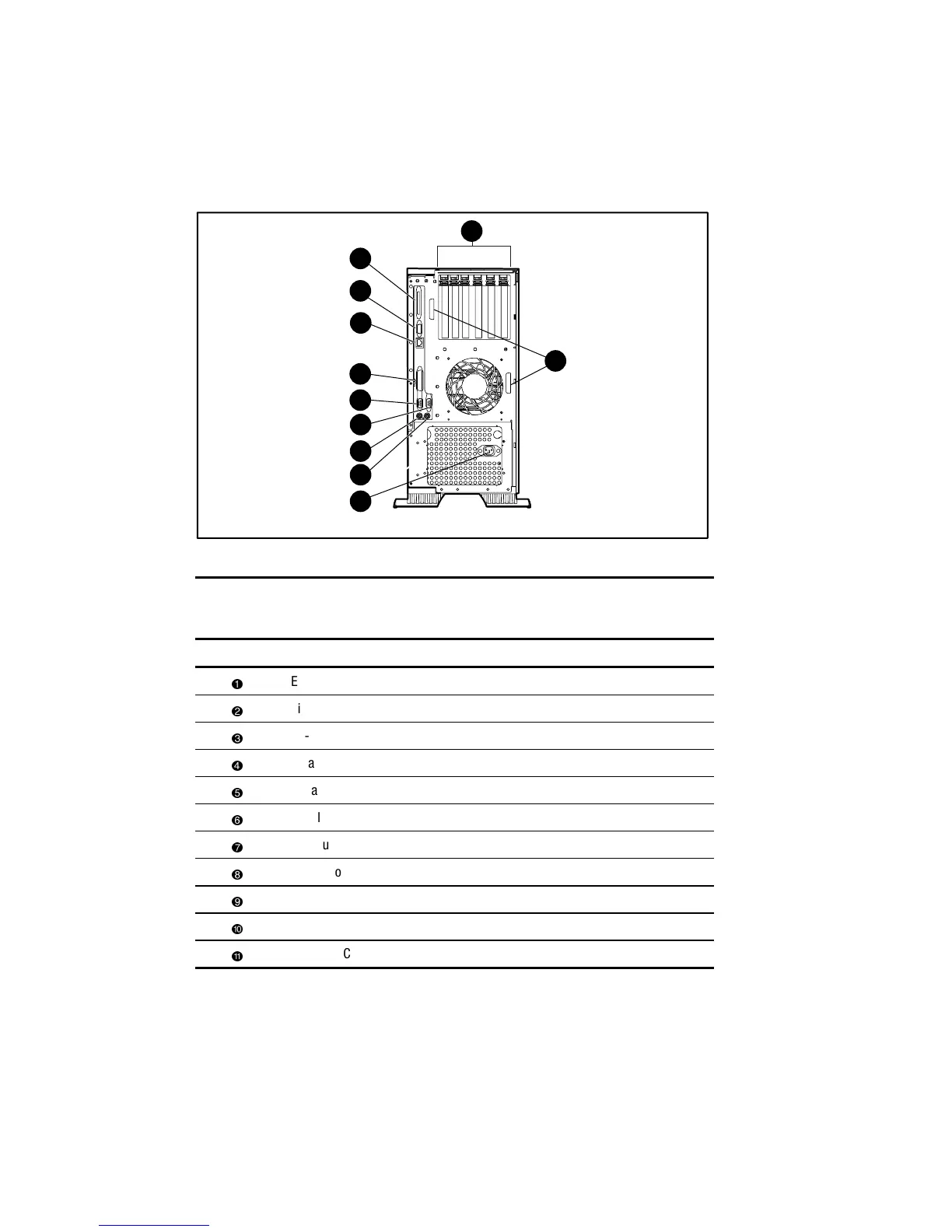

Figure 4-2. Rear panel components
Table 4-2
Rear Panel Components
Item Description

External SCSI connector

Video connector (blue)

RJ-45 network connector

Parallel connector (burgundy)

Serial connector A (teal)

Serial connector B (teal)

Hot-plug keyboard connector (purple)

Mouse connector (green)

External power connector

Expansion slots

External SCSI access
