Processor Power Module
To remove the Processor Power Module:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Open the front bezel (tower model only). See “Front Bezel” earlier in this chapter.
3. Remove the large access panel. See “Large Access Panel” earlier in this chapter.
4. Press outward on the tabs at each end of the Processor Power Module ➊.
5. Pull the Processor Power Module out of the socket ➋.
2
1

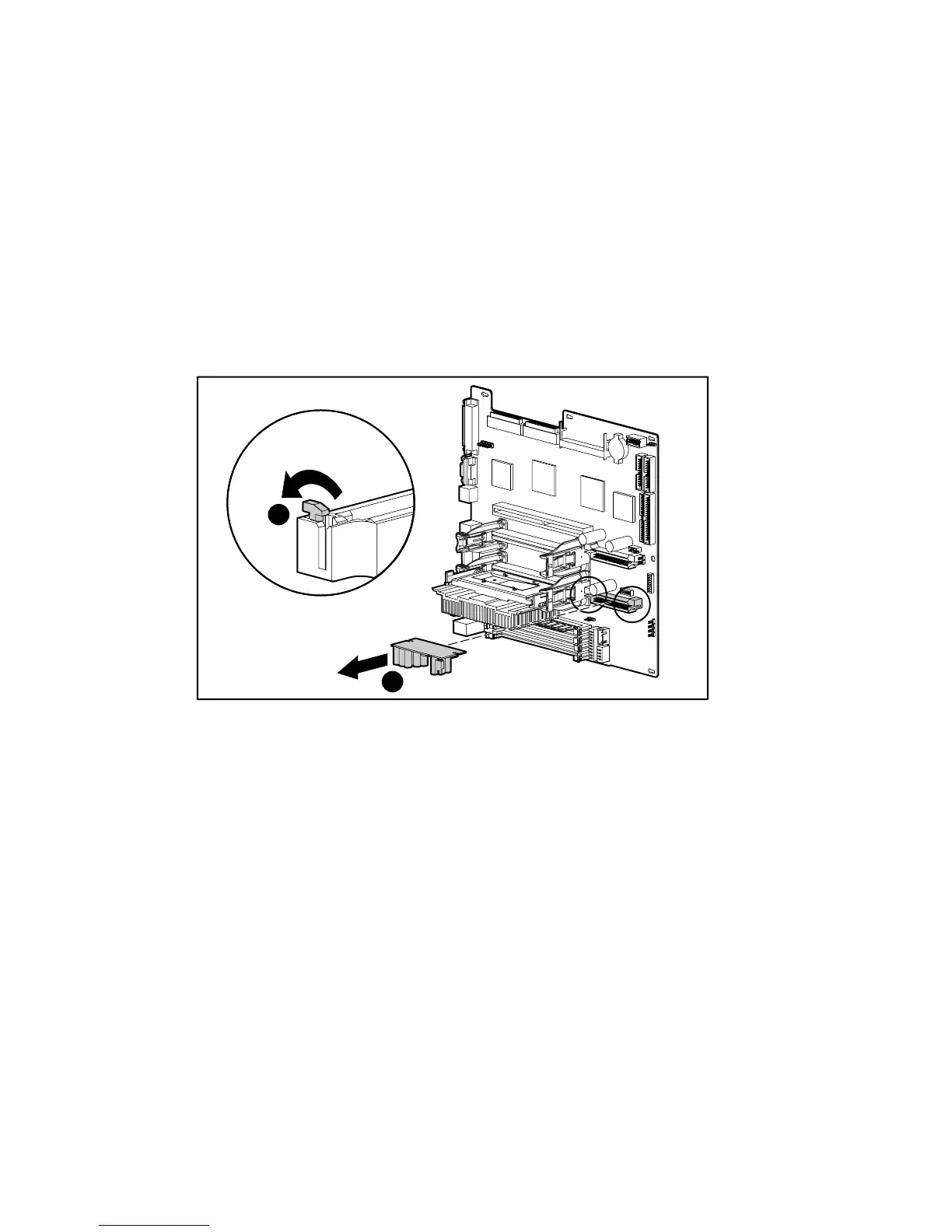

Figure 2-26. Removing the Processor Power Module
Reverse steps 1 through 5 to replace a Processor Power Module. The clips on the Processor
Power Module will snap into a locked position automatically when the Processor Power Module
is fully seated in the socket. The module is keyed to ensure correct alignment.
Use System Configuration Utility to reconfigure the server. See Chapter 3, “Diagnostics and
Troubleshooting,” for more information.
