2-8 Compaq ProLiant ML370 Maintenance and Service Guide
Feet
NOTE: This procedure applies to the ProLiant ML370 tower model only.
To remove the feet from the chassis, one at a time:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Place the server on its right side (opposite from the large access panel).
3. Remove the T-15 screw from each foot ➊.
4. Pivot each foot down ➋; then pull it off the base of the chassis ➌.
1
2
3

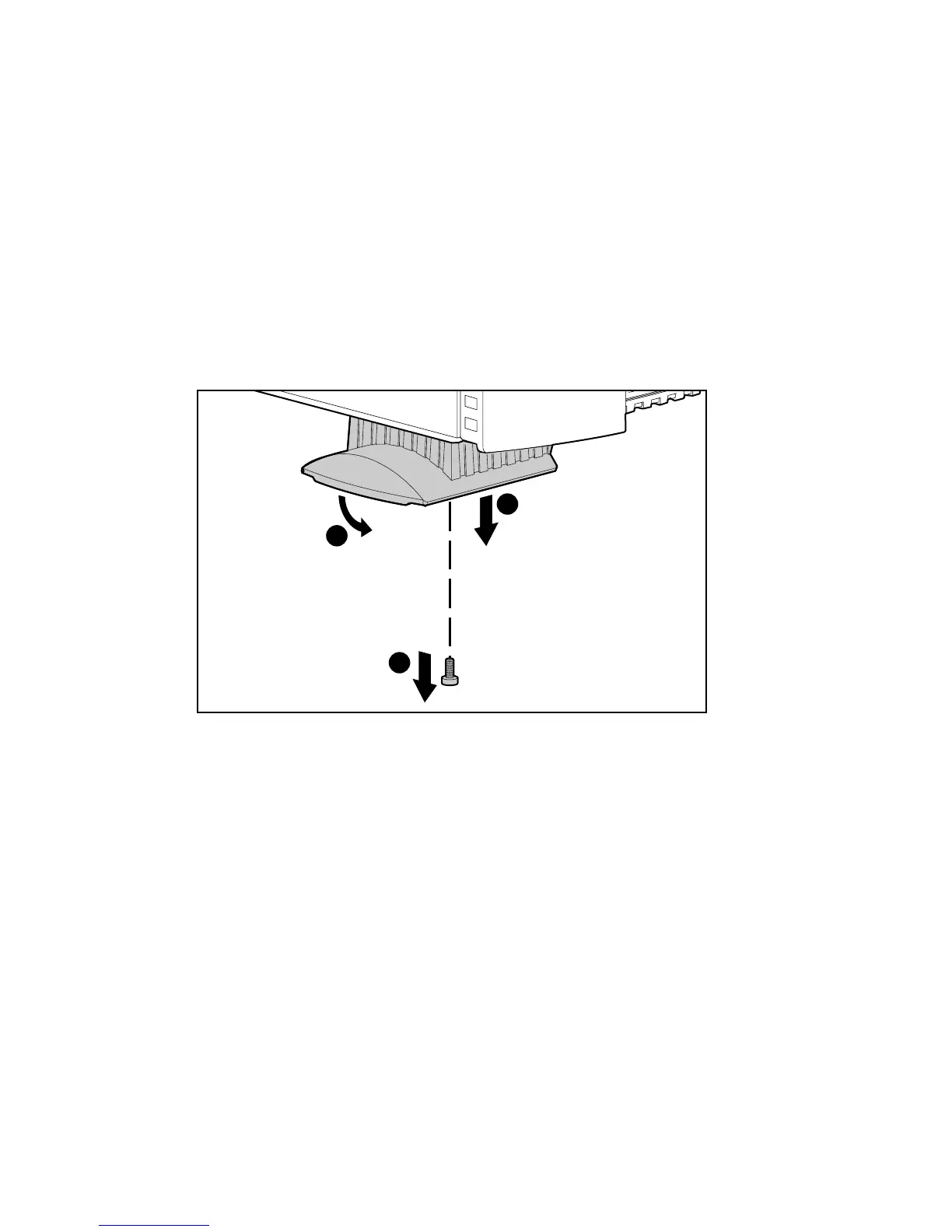

Figure 2-3. Removing the feet from the chassis
Reverse steps 1 through 4 to replace the feet. Make sure each foot snaps securely into its holder.
