RJ-45 Connector
Figure 4-5 and Table 4-6 show the location and a description of the RJ-45 connector LED
indicators.
1
2

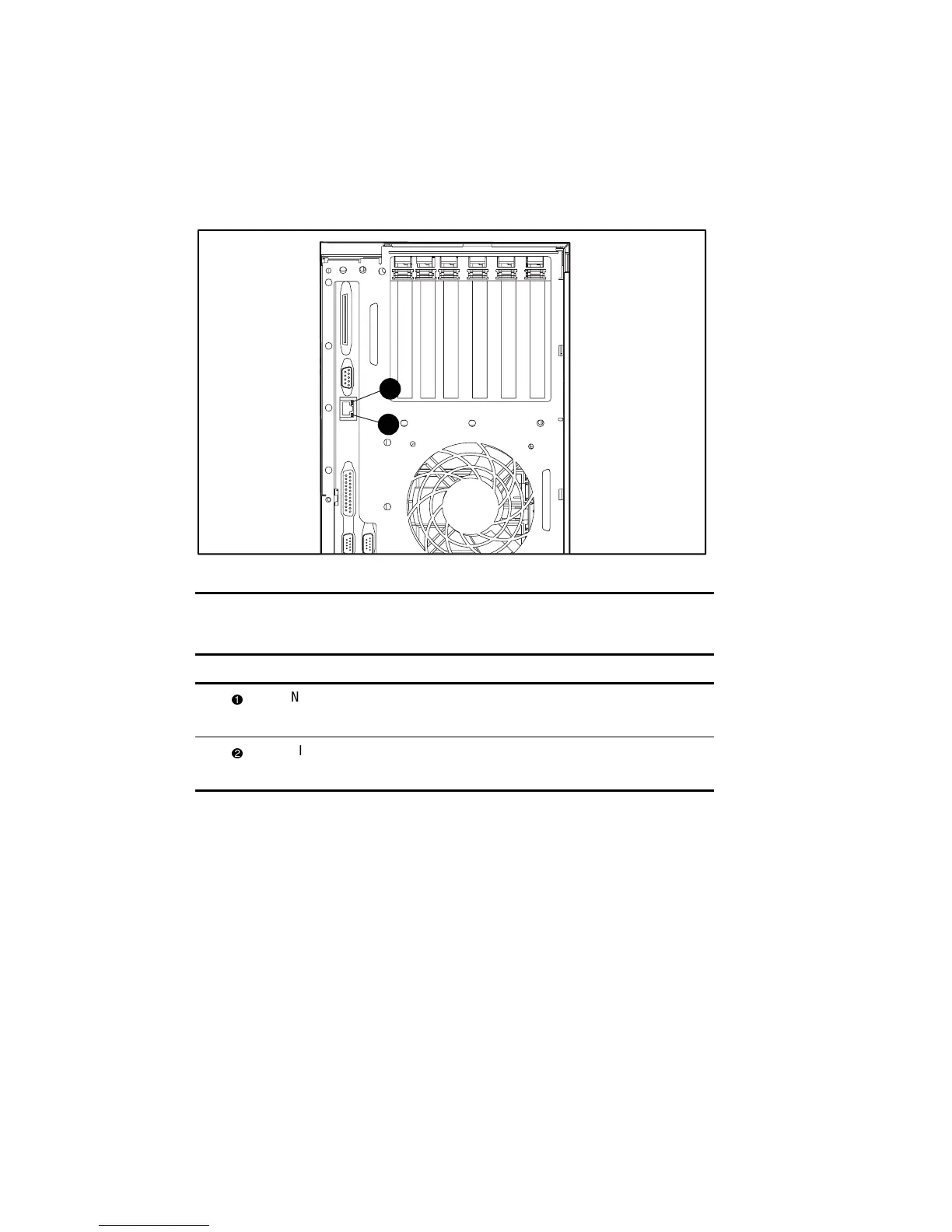

Figure 4-5. RJ-45 connector with LED indicators
Table 4-6
RJ-45 Connector LED Indicators
Item Description Condition Status

NIC activity Green Embedded NIC network activity
Off No network activity

NIC link status Green Embedded NIC is connected to network
Off Embedded NIC not connected to network
