Removal and Replacement Procedures
2-13
Cable Routi
ng Dia
gram
s
CAUTION:
When
routing cables
, always
ensu
re that the c
ables are no
t in a pos
ition wh
ere they
will be pinch
ed or crimped.

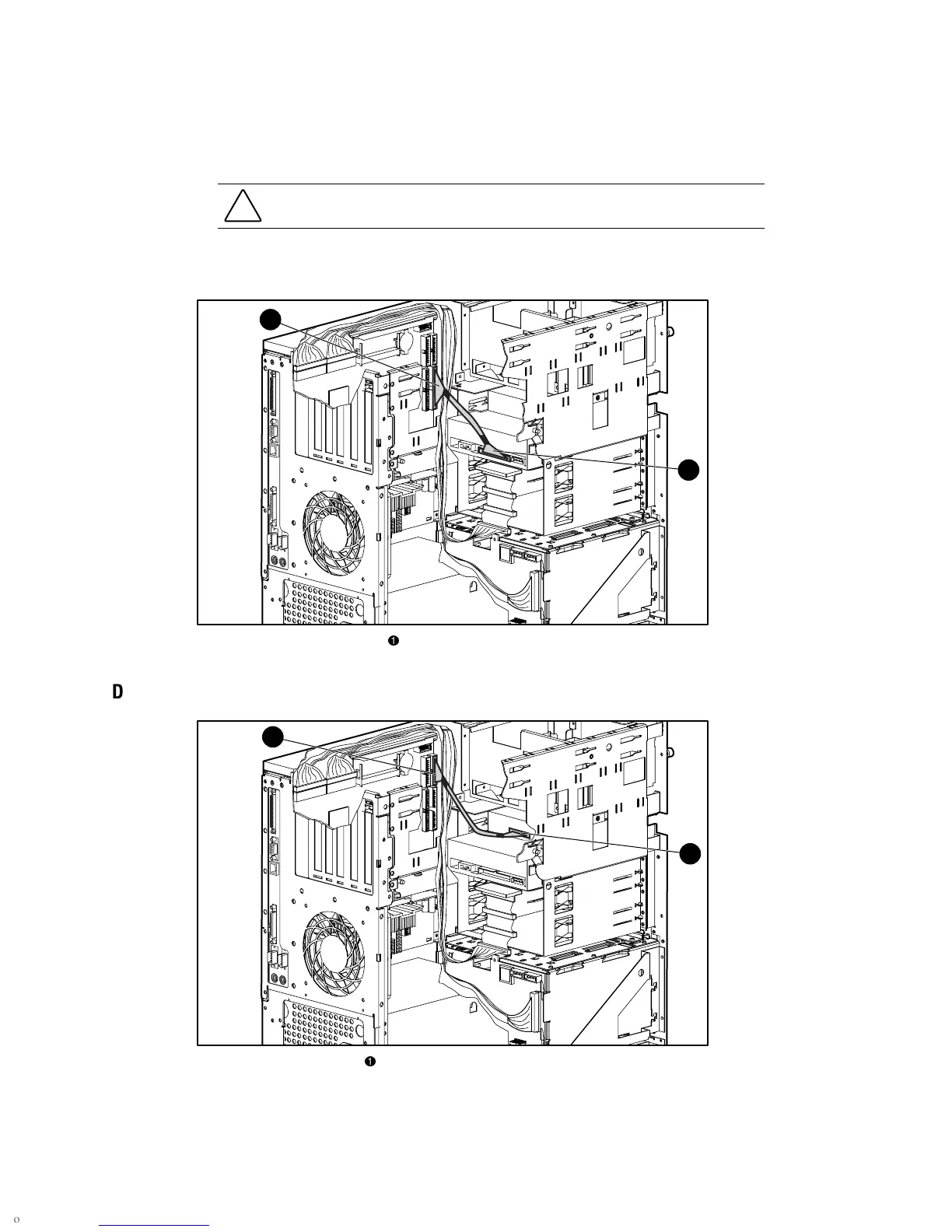

IDE CD-ROM Drive Cable Diagram
1
1
Figure 2-8. IDE CD
-ROM drive cable
Diskette Drive Cable Diagram
1
1
Figure 2-9. Dis
kette dri
ve cable
28
30
Table of Contents
Default Chapter
3
Table of Contents
3
About this Guide
7
Symbols in Text
7
Compaq Technician Notes
8
Where to Go for Additional Help
8
Integrated Management Display
9
Telephone Numbers
9
Chapter 1 Illustrated Parts Catalog
10
Mechanical Parts Exploded View
11
Mechanical Spare Parts List
12
System Components Exploded View
13
System Components Spare Parts
14
Illustrated
14
System Board
14
Chapter 2 Removal and Replacement Procedures
17
Electrostatic Discharge Information
18
Symbols in Equipment
18
Preparation Procedures
19
Powering down the Server
19
Rack Warnings
20
Server Warnings and Precautions
21
Front Bezel
22
Rack Front Plate
23
Feet
24
Large Access Panel
25
Small Access Panel
26
Right Side Panel
27
Drives and Related Components
28
Drives and Related
28
Cable Routing Diagrams
29
IDE CD-ROM Drive Cable Diagram
29
Diskette Drive Cable Diagram
29
SCSI Cable Diagram
30
Hot-Plug Drive Cage
31
IDE CD-ROM Drive
32
Diskette Drive
33
Hard Drive Blank
34
Hot-Plug SCSI Hard Drive
35
Removable Media Drive Bay Blank
36
CPU Fan
37
Removal and Replacement Procedures
37
I/O Fan
38
Power Switch with Cable and LED Indicators
39
Riser Board Expansion Slots
41
I/O Expansion Slot Cover
42
I/O Expansion Board
43
Riser Board and Brace
44
Processor
45
Processor Power Module
46
Memory
47
Power Supply
49
Hot-Plug SCSI Drive Backplane
51
System Board
52
Compaq Integrated Smart Array Controller Upgrade Module
53
Internal Replacement Battery
54
Chapter 3 Diagnostics and Troubleshooting
55
Diagnostic Tools
55
Diagnostic Tools Utility Overview
56
Default Configuration
58
Default Configuration Messages
58
Inspect Utility
58
Utilities Access
59
Running Compaq Utilities
59
Power-On Self-Test (POST)
61
POST Error Messages
61
POST Error Messages
62
Diagnostics Software
80
Steps for Diagnostics
80
100-199, Primary Processor Test Error Codes
81
Primary Processor Test Error
81
200-299, Memory Test Error Codes
82
300-399, Keyboard Test Error Codes
83
400-499, Parallel Printer Test Error Codes
83
Keyboard Test Error
83
Parallel Printer Test Error
83
500-599, Graphics Controller Unit Test Error Codes
84
Graphics Display Unit Test Error
84
600-699, Diskette Drive Test Error Codes
85
1100-1199, Serial Test Error Codes
85
Diskette Drive Test Error
85
1200-1299, Modem Communications Test Error Codes
86
Modem Communications Test Error Codes
86
6000-6099, Compaq NIC Boards Test Error Codes
86
Compaq Network Interface Boards Test Error Codes
86
6500-6599, SCSI Hard Drive Test Error Codes
87
6600-6699, SCSI/IDE CD-ROM Drive Test Error Codes
87
6700-6799, SCSI Tape Drive Test Error Codes
88
8600-8699, Pointing Device Interface Test Error Codes
88
Pointing Device Interface Test
88
Array Diagnostic Utility (ADU)
89
Starting ADU
89
ADU Diagnostic Messages
90
Time-Out
94
Integrated Management Log
100
Multiple Ways of Viewing the Log
100
Event List
102
Event Messages
102
Rapid Error Recovery
104
Automatic Server Recovery-2
104
Storage Automatic Reconstruction
104
Storage Fault Recovery Tracking
104
Standby Recovery Server Option
107
Server Port
107
Compaq System Configuration Utility Pager Settings
112
OS Restart SCU Setting for
113
ASR-2 Integrated Management Log Messages
114
ASR-2 IML Messages
114
Storage Fault Recovery Tracking
117
Storage Automatic Reconstruction
117
Network Interface Fault Recovery Tracking
117
Memory Fault Recovery Tracking
117
Diagnostics and Troubleshooting
117
Remote Service Features
118
Rompaq Error Recovery Options
118
Compaq Servers Remote
118
Configuration Switches
119
Rompaq Disaster Recovery
119
Compaq Insight Manager
121
Features of Compaq Insight Management
121
Compaq Insight Management Software Architecture
122
Chapter 4 Connectors, Switches, and LED Indicators
123
Compaq Proliant ML370 System Board Components
124
Rear Panel Components
125
Switches
126
SW1 - System Identification Switch Settings
127
SW2 - System Configuration Switch Settings
127
LED Indicators
128
Front Panel
128
Front Panel LED Indicators
128
RJ-45 Connector
129
System Board
130
Riser Board
131
Chapter 5 Physical and Operating Specifications
132
System Unit
133
Power Supply
134
Power Supply Specifications
134
Redundant Power Supply
135
Dual Inline Memory Modules (DIMM)
136
1.44-MB Diskette Drive
136
1.44-MB Diskette Drive Specifications
136
DIMM Specifications
136
IDE CD-ROM Drive
137
IDE CD-ROM Drive Specifications
137
Compaq Wide Ultra2 Hot-Plug SCSI Hard Drives
138
Integrated Dual Channel SCSI Controller
139
Index
140
Illustrated
149
Part Number
149
Removing
